TORINO FENCES
TORINO FENCES
The Torino range represents a totally new concept; the exclusive and unusual arrangement of closely spaced transverse bars generates a uniquely horizontal emphasis within the grating fencing market.
The fence panels are made entirely from flat bars using a pressure-lock process which produces a grating with perfectly formed intersections. This delivers an exceptionally crisp, architectural aesthetic.
Barrier Fencing: the Torino fencing system can be engineered to create a barrier fence. Lang+Fulton collaborate with their Consulting Engineer to design the panels and posts to meet the loading regulations for parapets, station platforms or any location where there is s specific requirement.
There are four standard apertures but panels can also be supplied in either a bespoke or greater mesh sizes.
It can therefore provide fencing with surprisingly different properties and characteristics: either for security with a strong, clearly defined structure or for boundary demarcation with an open, transparent appearance.
INFORMATION
BRAND
Lang+Fulton
PRODUCT TYPE
Fences
THICKNESS
- Torino-11: 132×11 mm (c/c)
- Torino-22: 132×22 mm (c/c)
- Torino-33: 132×33 mm (c/c)
- Torino-44: 132×44 mm (c/c)
APPLICATION

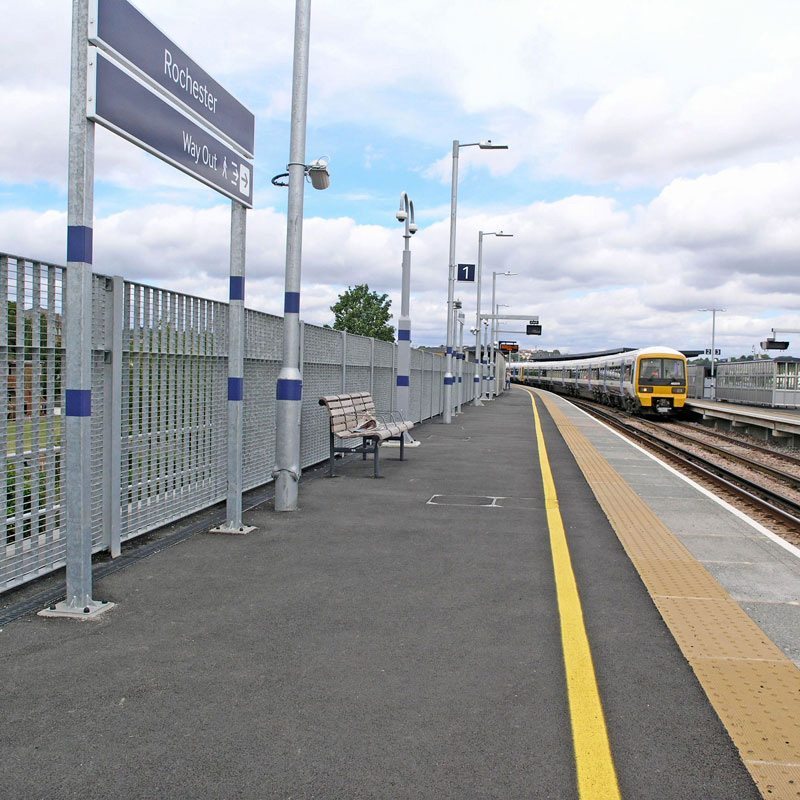

Suitable for applications from external fencing applications to railway barrier fencing
COLLECTION
Torinob
PRODUCTION
Made in United Kingdom
COUNTRY OF PRODUCT MANUFACTURE
United Kingdom
ORIENTATION
Flat horizontal transverse bars set to outside of enclosed area.
UNICLASS
Ss_25_14_67_51 Metal mesh panel fencing systems
STANDARD PANEL WIDTH
1992 mm
STANDARD PANEL HEIGHTS
935, 1199, 1331, 1463, 1727, 1991 mm
FRAMING
Framed top and bottom with flat bars. Guidance for specification option :
-Fence heights of 2000 mm and above have an additional intermediate fixing. -Framing bar is bent over at the ends to form fixing lugs for a bolted panel-to-post connection.
DETAIL
Swing-hinged single or double leaf, bi-folding, pivot and sliding gates are made with matching Torino infill panels. Panels and posts are supplied hot-dip galvanized with an optional polyester powder coating in any RAL colour.
STANDARD
To BS 1722-14.
SHAPE
Rectangle Linear Fencing
MATERIAL
Steel
RECYCLABILITY
100%
POST
- Mild steel S235JR.
- RHS or Flat Bar
RECYCLED CONTENT
As defined in clause 7.8 of BS EN ISO 14021 : 56 %
POST FOUNDATIONS
Ground fixing (concrete mix). Guidance for specification option :
-Refer to BS 1722 giving consideration to existing ground conditions. -Posts to be set in holes 300 to 400 mm square in plan and between 550 and 700 mm in depth, depending on fence height. -Holes should be completely filled to a minimum of 50 mm below ground level with concrete mix (minimum strength of C20).
COUNTRY OF MATERIAL ORIGIN
Europe
CONTAINS RED LIST MATERIALS
No
EMBODIED CARBON
A1-A3 (production stage) as defined in BS EN 15804 : 1.42 kg CO₂ eq/kg
FIXING
M10 x 30 mm, stainless steel bolts, domed heads and snap-off security nuts, grade A2.
Guidance for specification option : Panels fixed to posts.
OTHER REQUIREMENTS
-Not required. -Heavier section of flat bar at 1100 mm height. -Guidance for specification option Panels can be manufactured with an additional heavier section of flat bar at 1100 mm height, to achieve barrier
performance.
FINISHES
-Hot-dip galvanized. Guidance for specification option : To BS EN ISO 1461.
-Hot-dip galvanized and polyester powder coated, RAL. Guidance for specification option : -Insert colour requirement. -To BS EN ISO 1461 and polyester powder coated to BS EN 1722-16 in any RAL or BS colour.
FEATURES AND BENEFITS
-Grating fences are supplied in accordance with BS 1722-14. -Vertical flat bars : 25 x 2 mm; Horizontal flat transverse bars: 10 x 2 mm. -Panels and posts can be supplied galvanized only or galvanized and powder coated to any RAL colour. -Gates : single leaf, double leaf, pivot, cantilevered or sliding gates are manufactured to match with Torino infill panels. -High load: for higher load bearing capacity, horizontal bars can be inserted at 1200mm height to take up to 3kN/m2 (as required at the back of rail platforms).
GRATES
Sliding
APERTURE
132 x 11 mm.
COLORS
- Blue
- Grey
- Beige
- Black
- Bronze
- Brown
- Copper
- Red
- Gold
- Green
- Silver
- White
- Yellow
