Decoflame Orlando Open to Front Fireplace
ORLANDO OPEN TO FRONT FIREPLACE
ORLANDO OPEN TO FRONT FIREPLACE
If you want classic - but with a modern twist, this model is tailor-made for you. With the black casing and frame, the flames stand out beautifully.
Orlando is a recessed mirror that can be adapted to any room and desire. It is available with front opening or through opening. The characteristic wide Orlando frame literally "frames" the cosiness and flames of the fireplace.
This bio fireplace can be selected with all our different burner types: Manual, Electronic and Hybrid. The Electronic Bio Burner and Hybrid Mist can be controlled either via the display on the fireplace, with the included remote control or via our Decoflame app.
INFORMATION
BRAND
Decoflame
PRODUCT TYPE
Fireplace
OPTiONAL
- RAL colours
- Made-to measure
- Brushed Stainless Steel
TOPPLATE (BURNER) FINISH
-Standard : Black powder coated top-plate
-Optional : Stainless steel and any RAL colour
TECHNICAL DIAGRAM
LOCATION UNDER TV SCREEN
It is NOT recommended to place TV screens or valuable paintings over the fireplace as the rising hot air can damage the materials. If you decide to use a construction containing a TV screen over the bio fireplace, the following instructions must be followed, otherwise consult your retailer or Decoflame.
FEATURES
- Remote control
- Safety chamber
- E-Ribbon™ technology
- 6 flame levels (1-5 + ECO-Wave)
- Safety sensors / Safety chamber
- 8mm aluminium casing and baseplate
- Bluetooth / App
- Fuel Level Indicator / Flame Level Indicator
- No chimney required - no smoke, ash or soot
- Glass screen ordered (Full and/or low glasses)
COLLECTION
Orlando
PRODUCTION
Made in Denmark
GLASS SHIELD
Decoflame strongly recommends installing glass shields in order to protect the flame from draught, while keeping it vivid.

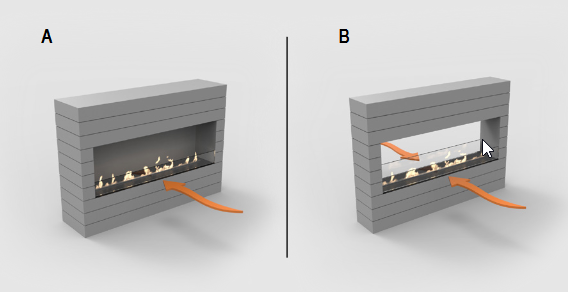

-Model A : Mandatory: One 110mm high glass
-Model B Optional : Two 110mm high glasses or one full glass and one 100mm glass.
INSTALLATION
-Step 1 : Make sure that the dimensions of the cut-out corre- spond to the measurements indicated in the technical drawing received with your fireplace. Everything must be in level.
-Step 2 : Connect the fireplace to an electrical power supply.
-Step 3 : Recess the fireplace into the wall cut-out and place the frame according to the indications in the User’s Manual.
-Step 4 : Place the glass screen/s on to the top pin holders.
-Step 5 : Turn on the fireplace. Fill in the right amount of bioethanol by verifying the level on the indicator.
-Step 6 : Start the fireplace by pressing the Play/Start button on the control panel.
HEAT-ZONE
FREQUENCY
50 Hz 5A
VOLTAGE
220V - 240V
COLORS
- Black/Black
- Black/Brushed steel
- Black/Polished steel
TECHNICAL INFORMATION
| DETAIL | 720MM | 920MM | 1120MM |
|---|---|---|---|
| Flametray Size | 500mm | 700mm | 900mm |
| Capacity | 4L | 5.8L | 7.2L |
| Fuel Consumption | 0.3 - 0.6 l/h | 0.4 - 0.8 l/h | 0.6 - 1 l/h |
| Burning Time | 7 - 20h | 7.5 - 20.8h | 7.3 - 20h |
| Heat Output | 1.2 - 3.2 kWh | 1.6 - 4.3 kWh | 2.1 - 5.7 kWh |
| Net Weight | 19.5kg | 22kg | 26kg |
| Minimum Room Size | 64m 3 | 89m 3 | 115m 3 |
