Usg Barz® Ceiling Tile & Panel
BARZ® CEILING TILE & PANEL
BARZ® CEILING TILE & PANEL
Barz® - Open Plenum Modular Acoustic Baffles
Preassemble any sizes and spacings of slats, struts, strips, boards, beams, and other linear components into ultra-lightweight panels that allow easy installation and accessibility.
Barz also provides outstanding acoustical control and integration with lighting and HVAC fixtures. Barz opens a truly new dimension in ceiling design.
INFORMATION
BRAND
Usg
PRODUCT TYPE
Ceiling System
CLASSIFICATION
- Flame spread: 25 or less
- Smoke developed: 50 or less
FIRE CLASS DESCRIPTION
Class A per ASTM E84, Zero Flame Spread, non-combustible aluminum core.
COLLECTION
Barz®
ACCESSIBILITY
Full Downward
LENGTH RANGE
1200 mm to 3050 mm (4’ to 10’)
WIDTH RANGE
300 mm to 900 mm (1’ to 3’)
BAFFLE SIZE GUIDELINES
-Maximum Length is 8’ -Maximum Width is 12” with Max height of 6” -Minimum Width is 1” with max height of 8”
-Consult factory for custom panel size possibilities
APPLICATIONS
- Curved Ceilings
- Sloped Ceilings
- New Construction
- Wall Applications
- Wall to Wall Ceilings
- Downward Accessible
- Pods, Islands, and Clouds
- Interior and Exterior Applications
MODIFICATION
Cassette systems are easily modified in the field with our template tools. These tools which provide easy precision cutting are standard supplied parts with each order. See our installation manual for details. See our full list of CAD details.
INTEGRATION
Barz can accommodate a full range of Third-Party systems for any design intent. Air diffusers, speakers, sprinklers and other ceiling attached accessories can be independently attached to deck within our ceilings. CAD details are available online at www.ceilingsplus.com
SOUND ABSORPTION
0.70-0.95
APPROXIMATE WEIGHT
7.5 kg/m2 (1.5 psf) approximate
SUSTAINABILITY
-Wood Veneer : Ask us about the availability of FSC® (FSC-C022109) certified.
-Recycled Content Description Aluminum : Up to 99% post consumer recycled content
TECHNICAL DRAWING
DETAIL
CEILING SYSTEM
Design with sustainability, acoustics, scale and access with aesthetics without compromising design
DESIGN
Precision formed for added strength and a cleaner appearance
ACOUSTICS
NRC .65 - .95 provide maximum sound absorption to achieve superior acoustics
AESTHETICS
Endless finishes possibilities – metal, wood veneer and customer colors are available
PERFORATIONS
STANDARD PERFORATIONS
FINISHES
METAL
PAINT
SARANTÉ

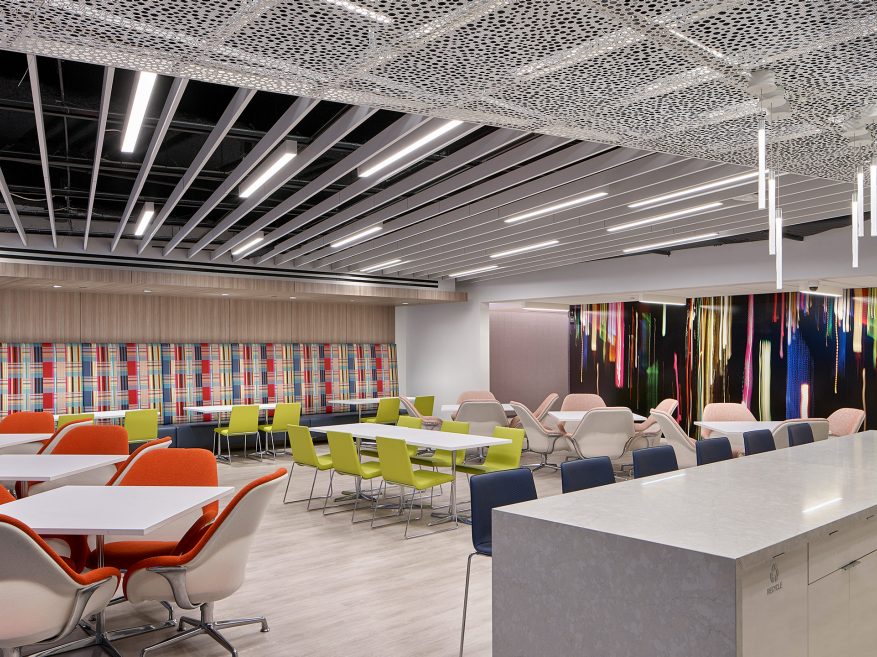

GALLERY
