Nelskamp Solar Tile S-Tile PV
SOLAR TILE S-TILE PV
SOLAR TILE S-TILE PV

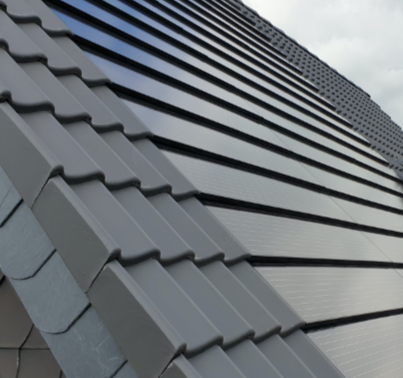

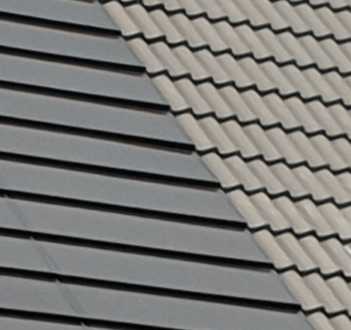

Do you want a new, modern roof covering with a traditional design, sustainability, and a profitable technology? The S-Tile PV system combines all three, and is hardly noticeable on the roof. The overlapping S-Tile PV modules, like the S-shaped tiles, lie directly on the roof lathing for a uniform and even overall appearance.
The S-Tile PV module is supplied as a ready-to-install unit with the interlocking S-Tile seam at the side ends for easy, quick and safe installation. The variable overlap area permits a uniform roof layout, while the prefabricated cables with MC4 plugs allow for safe and simple connection of the powerful modules, which cover ca. 0,5m² of roof area.
INFORMATION
PRODUCT TYPE
Solar Tile
BRAND
Nelskamp
COLLECTION
Solar
MODULE PERFORMANCE PMAX
90 Wp
MAXIMUM TESTED SYSTEM VOLTAGE
1000 V
TEMPERATURE COEFFIZIENT VOC
-0,30 %/°C
SHORT CIRCUIT CURRENT ISC
9.70 A
ROOF PITCH
≥ 22°
(lower roof inclinations on request)
MAXIMUM VOLTAGE VMP
10.02 V
TEMPERATURE COEFFIZIENT ISC
+0,06 %/°C
RECOMMENDED SYSTEM VOLTAGE
bis ca. 600 V
POSITIVE POWER TOLERANCE
from 0 W to +5 W for a better yield
HAIL RESISTANCE
According to IEC 61215 + IEC 61730
MODULE MEASURES
- Cover width 5 tiles ca. 1500mm
- Cover length 330 mm - 345 mm
PRODUCT GUARANTEE
10 years Performance guarantee: 10 -Years 90 % of rated performance 25-Years 80 % of rated performance
NO-LOAD WORKING VOLTAGE VOC
11.97 V
MODULE WEIGHT
8.5 kg
MODULE CABLE
2 x 4,0 mm2 je 550 mm long
CELL EFFICIENCY
19.3%
PLUGS
MC4
CHARACTERISTICS
- Cell efficiency 22,1 % /19.3%.
- Modules interlock with the roof tiles .
- Positive power tolerance: from 0 W to +5 W for a better yield.
- Harmonic esthetics : Black frame - black cells - black backsheet .
- Optimal solar return with highly efficient monocrystalline solar cells.
