SIMPLE MOVABLE GLASS WALL
SIMPLE MOVABLE GLASS WALL
Carvart’s glasswalls > simple feature innovative, sleek, and easy-to-install extrusions for an ideal office front solution. With a multitude of door and opening options, designers are empowered with endless configurations for dividing office spaces.
INFORMATION
CONFIGURATIONS
Straight runs, endless fixed panel, custom angles and configurations, various heights, fronts only, 2-4 sided office arrangements.
BRAND
Carvart
PRODUCT TYPE
Movable Wall
HARDWARE DIMENSIONS
-Aluminum Extrusion Height : 1-3/4"
-Aluminum Extrusion Depth : 1-13/16"
HARDWARE WARRANTY
5-year limited warranty
CUSTOMIZATION
Custom dimensions per opening
MINIMAL FRAME
Minimal site lines is clean, modern, without compromising functionality and durability.
DETAIL
Benefits also include ADA compliant features and accessories, easy maintenance, and a wide range of metal finishes to complement CARVART’s vast glass offering. For further office space customization and functionality, glassWALLS > Simple seamlessly integrates with our glassPOST accessories.
COLLECTION
Simple
MATERIAL
Glass
GLASS THICKNES
Refer to local code and structural requirements Accommodates 3/8" nominal up to 1/2" nominal.
FACILITY DESIGN APPLICATIONS
Office separation, open space configurations, door and opening division, space division between offices, conference rooms or flex-space.
WIDTHS — OVERALL MINIMUM/ MAXIMUM RANGE
-Glass Panels : Minimum 6" and maximum 48" (custom and larger sizes available upon request and depending on engineering limits).
-Maximum opening lengths: Unlimited.
WAREHOUSE OPTION
Modular design allows for fast and efficient installation in various environments and conditions.
PRODUCTION
Made in NewYork
SURFACES
- Smooth glass.
- Etched glass.
HEIGHTS — OVERALL MINIMUM/MAXIMUM RANGE (INCHES)
Minimum 9" height; maximum 108" height above finished floors (custom and larger sizes available upon request and depending on engineering limits).
MOUNTING FASTENERS
Final anchoring decision is client-directed or based on client structural consultant. Mounting fasteners and anchors to be supplied by others. CARVART advisory and coordination available.
WEIGHT & STRUCTURAL LOADS
Consult local engineer for structural codes and requirements Sliding door track capacities rated for 200 lbs. Overall weights available upon request for client structural calculations. Refer to CARVART for technical consultation.
VALUE-ADDED BENEFITS
-Multiple door and opening options -Wide range of CARVART pulls available -Two-piece channel makes installation easy -Multiple metal finishes available -ADA compliant hardware and configurations available -Power and data integration available with snap-on cable management -System durability and long-term integrity -Turkey project services
GLASS TYPES
Tempered monolithic, laminated, tempered laminated.
DOOR OPTIONS
Hinged, Pivot, Sliding Door integration available
DOOR HARDWARE OPTIONS
Combine with swinging or sliding door options with various pulls and handles available.
SIMPLE FRAME EXTRUSION
The Simple Frame extrusion is composed of a two-piece channel and incorporates wedge vinyl to facilitate easy installation
ADD-ON DESIGN OPTIONS
Per specification and upcharges apply Pulls, swing and sliding doors, glassPOST integration.
FUNCTION
Fixed panels, hinged/ pivot/ sliding door integration available.
GLASS FINISHES
Refer to Finish Chart CARVART laminated transparent glass design options available: 01 Core, 02 Color, 03 Pattern, 04 Metallic, 05 Textile, 08 Gradient and 10 Covert.
HEIGHT LIMITS
Refer to Finish Chart Brushed satin anodized aluminum, polished aluminum, black, white, grey, midnight, charcoal, light grey, warm grey, champagne, terra cotta, blackened aluminum.
CHARACTERISTICS
Acoustical Rating : Estimated 30-38 STC - Determined by selected glass thickness and type, Sound Transmission Class (STC) is a number value quantifying the ability of a material to resist the transmission of sound. For example, 25 STC would mean only normal speech can be understood through the system, while 50 STC would mean almost nothing could be heard.
CODE
GW-SIMP-PF
INSTALLATION
Two-piece extrusion and adjustable levelers facilitate easy installation and glass loading. Requires trained and competent glazing or carpenter industry professionals. Installation instructions, assistance and training available at time of order. All hardware components, including doors, will be delivered knocked down and require assembly by a glazing industry professional. Certain glass and hardware finishes are available as preassembled products as called out in the glass and hardware finishes pages. Consult a CARVART agent for information on available pre-assembled components..
FINISHES

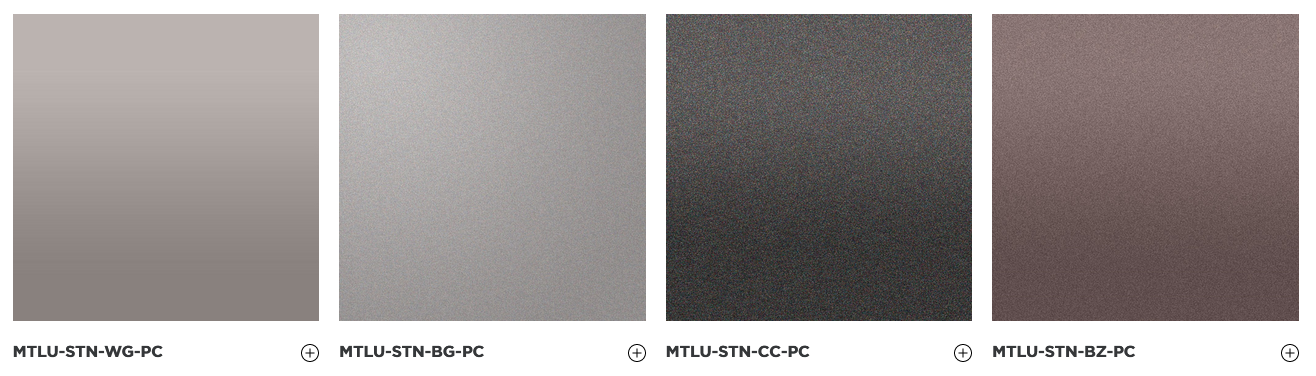

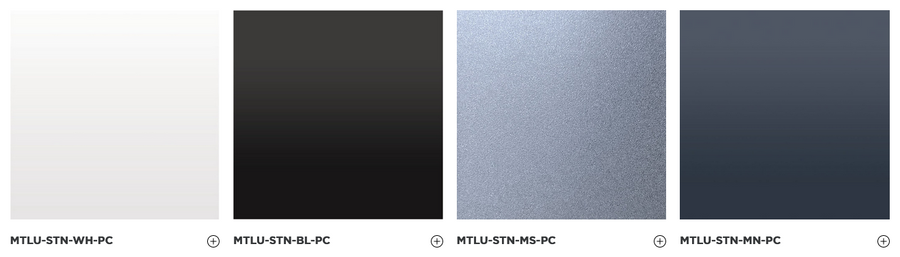

HARDWARE FINISHES
