ILLUSIONS® CEILING PANEL
The most successful metal and wood concealed suspension system with panel sizes to match the visual scale of any space, providing optimum acoustics, is light weight and integrates with lighting and other ceiling mounted fixtures.
INFORMATION
BRAND
Usg
PRODUCT TYPE
Acoustical Ceiling Panel
FIRE RESISTANCE
Fire Rating : Class A
APPLICATION
Interior & Exterior
ASTM E84
- Flame Spread : 25 or less
- Smoke Developed : 50 or less
- Fire Rating : Class A
COLOR
White
AVAILABLE
36” coil
CLASS
A
FLAME SPREAD
25 or less
FOOTNOTES
- Available in exterior
- Available in 48” wide
- Available in both exterior and 48” wide
FINISHES
Endless finishes possibilities – wood, metal, custom colors, digital prints, and designs that scale to fit any space
ACOUSTICS
NRC ratings of .75 - .95 deliver superior sound absorption
FIRE RATING
Class A,astm E84 Can/ulc S102
PERFORATION
Standard Custom
PANEL SIZE
¼” or 1 ½
SARANTE
48”
INTEGRATION
Designed to easily integrate with lighting and other ceiling mounted fixtures
INTEGRATION
Illusions can accommodate a full range of Third-Party systems for any design intent. Air diffusers, speakers, sprinklers and other ceiling attached accessories can be independently attached to deck within our ceilings. CAD details are available online at www.ceilingsplus.com
PANEL SIZE GUIDELINES
- Maximum Length : -120” -96”
- Maximum Width : -24” -48”
- Minimum Width : 4”
- Minimum lenghth : 96”
SEISMIC COMPLIANCE
Suspension System is included in ICC ES ESR 1222 for use in Seismic Design Categories A through F when installed according to ASTM C636 and ASTM E580. Alternate installation methods may be used when designed by a registered engineer and approved by the authority having jurisdiction. Test reports for suspension system performance may be available upon request.
APPLICATIONS
- Sloped Ceilings
- Curved Ceilings
- New Construction
- Concealed Grid
- Wall to Wall Ceilings
- Downward Accessible
- Pods, Islands, and Clouds
- Interior & Exterior Applications
TECHNICAL DRAWING
FEATURES AND BENEFITS
-Fully accessible system allowing access at every panel location. -Third party integration of diffusers, lights, speakers, sprinklers, wifi, etc(independently suspended). -Acoustical performance utilizing perforations and sound absorbing materials including Acoustibond and Ultrasorb. -Standard and customizable perforations are available in to create visual patterns and acoustic performance. -Design flexibility with panel sizes and layout options. -Varied mounting arrangements are available to respond to any installation requirements or conditions. -Class A per ASTM E84, Zero Flame Spread, non-combustible aluminum core Fire Classification
FINISHES
ARBOREAL®
METAL AND PAINT
SARANTÉ®

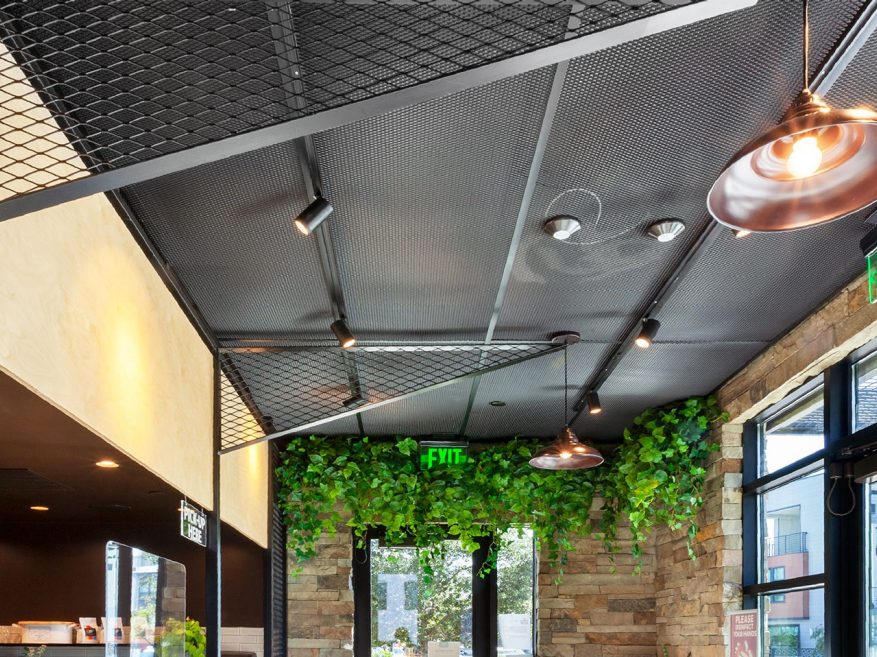

GALLERY
