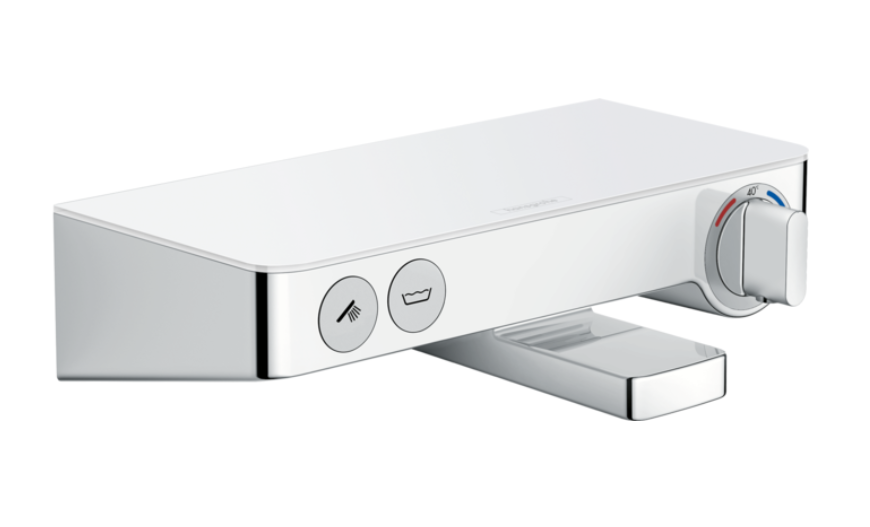

Hansgrohe Thermostat 300 ShowerTablet
THERMOSTAT 300 SHOWERTABLET
THERMOSTAT 300 SHOWERTABLET
Love intuitive showering comfort? With this thermostat with Select button, you can choose your shower at the touch of a button.
INFORMATION
BRAND
Hansgrohe
PRODUCT TYPE
ShowerTablet
ADJUSTABLE
Temperature Limitation Adjustable
PROTECTED
Protected against backflow, according to din en 1717
FLOW RATE OF HAND SHOWER AT 3 BAR
16 l/min
PRODUCTION
Made in Germany
PROJECTION
192 mm
FLOW RATE FOR BATH SPOUT AT 3 BAR
20 l/min
CONNECTIONS
In case of installation on existing g ¾ connections, adaptor no.02026000 must be used
BUTTONS
Thermostat is delivered with buttons hand shower and bath tub
MIN. OPERATING PRESSURE
1 bar
MAX. OPERATING PRESSURE
10 bar
FINISHES
- Chrome
- White/Chrome
CONNECTION DIMENSION
DN15
SAFETY STOP
At 40 °C
VALVE
Non-return Valve
CONNECTION TYPE
Adjustable connection, G ½
CENTRE DISTANCE
150 ± 12 mm
FILTER
Dirt Filter Included
FEATURES
- With Silencer
- With isolated water conduction
- Simultaneous utilization of 2 functions
- Select push-button on/off control for 2 outlets
-Thermostat cartridge, start/stop valve to operate the functions
COOLCONTACT THERMOSTAT
Prevents the housing from heating up, making showering even safer
SURFACE SHELF
Mirror Glass
HANDLES MATERIAL
Metal
CERTIFICATES
An EPD is an Environmental Product Declaration. It is like an environmental identity card for products based on the results of a Life Cycle Assessment.
FUNCTIONS
2
USE
Bathroom
MAXIMUM FLOW RATE AT 3 BAR
20 l/min
DOWNLOADS
↓ Data Sheet
↓ BIM data on BIMobject
↓ Flow chart JPG, 455 KB
↓ Scale drawing JPG, 129 KB
↓ Planning data (2D) DWG, 384 KB
↓ Planning data (3D) DWG, 346 KB
↓ Environmental Product Declaration PDF, 1.2 MB
↓ Assembly instruction (Thermostat) PDF, 18 MB
↓ Planning data (AutoCAD 2D) DWG, 280 KB
↓ Planning data (AutoCAD 3D) DWG, 215 KB
↓ Service instruction ( Cleaning Recommendation) PDF, 1.6 MB
HIGHLIGHTS
HIGHLIGHTS
INNOVATIVE TECHNOLOGIES
MORE PLEASURE, MORE EFFICIENCY
Mixes generous quantities of air into the water. The enriched droplets are luxurious, light and soothing on the skin and cause less splash in the wash basin. For a more efficient use of the precious resource that is water.
INTUITIVE JET ADJUSTMENT
The Select push button simplifies daily bathroom routines, as one simple push is all it takes for water to flow or stop. When showering, the user-friendly button can change the spray type or switch from the overhead to the hand shower.
SAFE AND INDULGENT SHOWERING
This thermostatic mixer is fitted with innovative cooling technology to prevent it from getting too hot, keeping it nice and cool to the touch. For care-free showering with no need to keep a safe distance or fear scalding.
LESS LIMESCALE, MORE JOY
Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.
ALWAYS CONSTANT WATER TEMPERATURE
Safe and reliable: The thermostat with integrated temperature control continuously monitors the water temperature while showering or bathing. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.
SAFETY LOCK AT OVER 40 °C
A temperature limitation that ensures safe showering pleasure at all times. The function prevents too hot water from coming out of the shower. The scald protection is a big safety plus, especially for children or people with restricted mobility.
