Iron Age Designs Madras Trench Grates
MADRAS TRENCH GRATES
MADRAS TRENCH GRATES

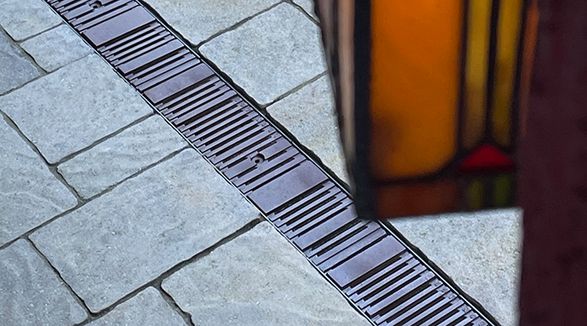

We’ve designed the Madras with staggered spacing and slight variations in surface depth, creating a unique, eye-catching take on your typical linear grate.
INFORMATION
BRAND
Iron Age Design
PRODUCT TYPE
Grates
COLLECTION
Paradise
OPTIONAL FINISH
- Powder Coat
- Baked On Oil Finish
PRODUCT ID
MDA5-20I21HP
PRODUCTION
Made in United States
DOWNLOADS
↓ Data Sheet
↓ CSI 3-Part Spec
OPTIONAL MATERIAL UPGRADES
- Cast Aluminum
- Cast Bronze
MATERIAL
Cast Ductile Iron
DIMENSIONS
4.81" x 19.56" x .81"
DESIGN
Madras 5" x 20" Heel Proof
USE
Outdoor
GRATE
Lenear
RECYCLED CONTENT
80%
TECHNICAL DRAWING
WEIGHT
9.28 kg
ADA COMPLIANT
Yes
FITS
- ABT® ®
- ACO™ K100, K100S, KS100
- MEA® 1000 Series
DRAIN MANUFACTURER
- ABT®
- ACO™
- MEA®
STANDARD FINISH
Raw
COPYRIGHT REGISTRATION NO
VA 2-246-528
FREE DRAIN AREA
15.59%
GALLONS PER MINUTE
20.42
