GLASS STACKWALL MOTION MOVABLE WALLS
GLASS STACKWALL MOTION MOVABLE WALLS

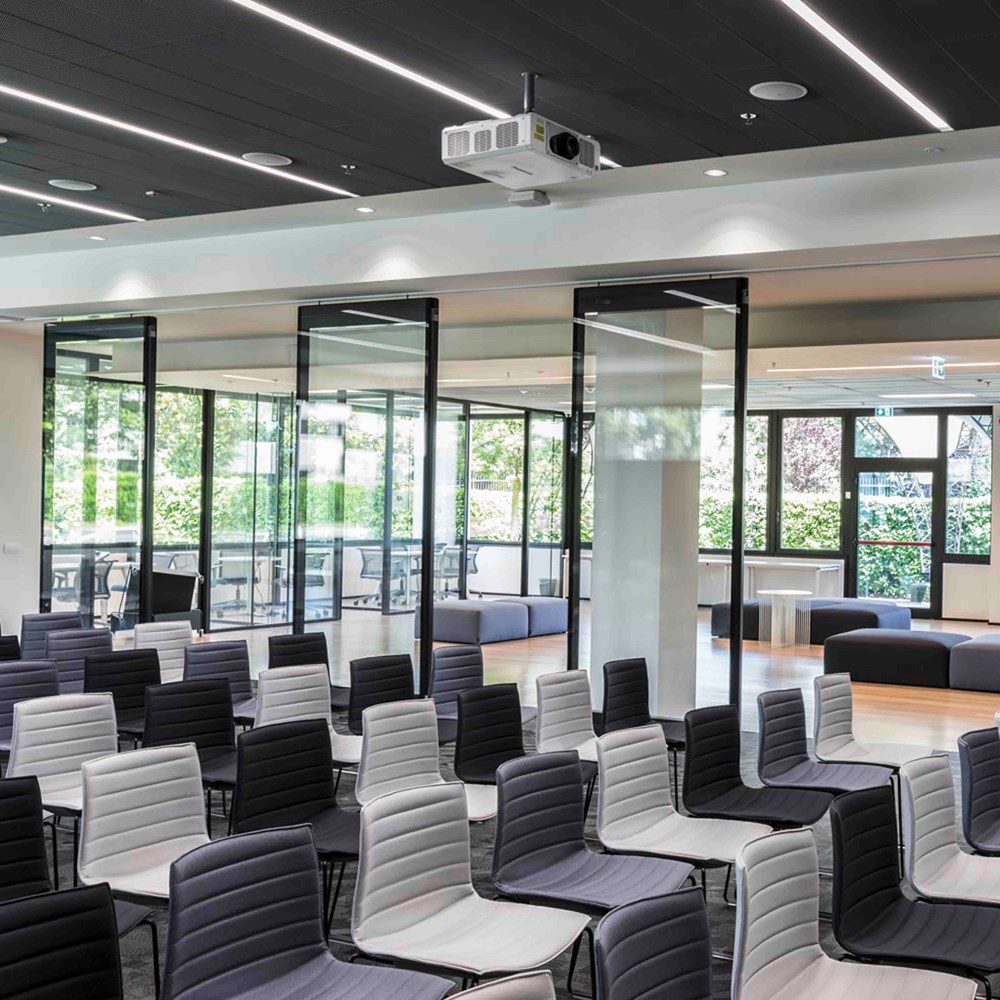

Glassstackwall > motion is an innovative system that embraces automated operation and acoustic control for swift partitioning and privacy.
Automated locking and drop-seal mechanisms are activated when the panels are pushed next to each other, maximizing sound isolation (rw from 38db to 51db - 46db and 53db glazing), and improving operating speed.
The system’s glass panels are flush to the minimal hardware creating a clean surface design available in both structurally-glazed double and opaque wall options.
INFORMATION
BRAND
Carvart
PRODUCT TYPE
Movable Walls
GLASS THICKNESS
Accommodates 5/16”, 3/8” and 1/2” nominal.
APPLICATIONS
Space dividers, offices, conference rooms of flex-spaces.
THE COMPONENTS
The components are made from aluminum frames and two tempered glass sheets or two mdf panels (for non-glazed elements). This clean and elegant system provides uncompromised privacy with the touch of a button.
PRODUCTION
Made in NewYork
PANEL HEIGHT
165-5/16"
PANEL WIDTH MINIMUM
Minimum : 25-9/16”
SYSTEM HEIGHT MAXIMUM
Maximum Height : 49-3/16”
MOUNTING
Carvart offers several types of structural suspension assemblies and coordination services to advise on best practices for supporting the wall system.
WEIGHT
6lbs - 26lbs
SURFACE
Smoth Glass
ACOUSTIC MECHANISM
An automatic and manually operated continuous seal at both the top and bottom of the panel.
GLASS PANEL HEIGHTS
- 125-15/16" (Glass Thickness @ 5/16")
- 137-3/4" (Glass Thickness @ 3/8")
- 157-3/8" (Glass Thickness @ 1/2")
HARDWARE DIMENSIONS
- HPL panel thickness : " 4"
- Glass panel thickness : 3-13/16", 4", 4-1/4"
- Structurally glazed painted border : Vertical/sides : 1-3/8"
ELECTRICAL POWER REQUIREMENT
- System : 24V DC/48V DC
- Total power used : 200W
- Supply : 110-240 AC - 50/60 Hz
ACOUSTICAL RATING : ESTIMATED 43-53 STC
Determined by selected glass thickness and type, Sound Transmission Class (STC) is a number value quantifying the ability of a material to resist the transmission of sound. For example, 25 STC would mean only normal speech can be understood through the system, while 50 STC would mean almost nothing could be heard.
MATERIAL
Glass
DOWNLOADS
↓ Data Sheet
↓ 3-Part Specification
GLASS TYPES
- Pure
- Laminated
- Black painted
- Tempered monolithic
BENEFITS
-Semi-automatic hardware increases speed of operation and precision of seals -Wide-ranging acoustic and privacy options, seam details and panel connections -Minimal look with thin, aluminum profiles -Optional pre-engineered top structure support solution for taller spaces above finish ceiling -System durability and long-term integrity -Turnkey integrated project services
USE
Windows
WARRANTY
1 Year Limited Warranty
INSTALLATION
System is top-hung and requires trained industry professional to ensure installation meets quality and safety standards. Top supporting suspension structure provided by carvart is pre-engineered and anchoring and connections to structure/substrate must be coordianted by structural engineer. All panels come pre-assembled. Top track and structure above system must be cut-to-size on site and assembled.
Carvart offers on-site and remote training for all installers new to the product or requiring a refresher. Certain glass and hardware components/finishes are only available as “knock-down” products and require site-assembly. Consult a Carvart agent for information on available pre-assembled components.
FINISHES
- Brushed Anodized Aluminum
- Matte Anodized Aluminum
- Polished Anodized Aluminum
- Matte & Satin Power Coated Power Coated
Anodized
Aluminum
Anodized
Aluminum
Anodized
Aluminum
DETAIL
STRUCTURAL SUPPORT
Pre-engineered, easy-to-install top support can be coordinated and provided with acoustic considerations..
CONFIGURATIONS
Infinite ways to move and park panels to close and open a space to desired specification.
