STACKWALL GLASS FRAMED MOVABLE WALLS
STACKWALL GLASS FRAMED MOVABLE WALLS
Our glassstackwall > framed system provides increased acoustic performance for optimal privacy. This product features fully framed glass panels - available from our extensive glass selection – that travel individually along an upper track and store into a pre-designed parking area.
For a streamlined appearance with minimal hardware exposure, the top-hung track can be concealed within the ceiling, allowing glass panels to stack out of sight when parked. This system offers users a refined partition solution that creates acoustic and visual privacy while maximizing visual connection between adjoining interior spaces.
INFORMATION
BRAND
Carvart
PRODUCT TYPE
Movable Walls
APPLICATIONS
Space dividers, offices, commercial spaces, conference rooms
GLASS THICKNESS
Tempered monolithic and tempered laminated: -3/8” [6mm] - 13/16” [21mm]
COLLECTION
Stackwall
CODE
GW-STAK-FD
PRODUCTION
Made in NewYork
ACOUSTICAL RATING ESTIMATED 30-38 STC
Determined by selected glass thickness and type, Sound Transmission Class (STC) is a number value quantifying the ability of a material to resist the transmission of sound. For example, 25 STC would mean only normal speech can be understood through the system, while 50 STC would mean almost nothing could be heard.
PANEL WIDTH (OVERALL MAXIMUM)
Maximum : 47”
SYSTEM HEIGHT (OVERALL MAXIMUM)
Maximum Height : 120”
PANEL TYPES
Fixed and Movable panels can be combined to create multiple configurations for various uses across a movable wall.
MOUNTING OPTIONS
- Glass held by clamps in panel shoe
- Top-hung; header must support full weight of system
HARDWARE DIMENSIONS
Anodized aluminum finishes; glass held by steel” clamps; top-hung panels that slide through trackand individually stack into parking area
HARDWARE FINISES
-MFSA (satin anodized aluminum) -MFPA (polished anodized aluminum) -MFBA (black anodized aluminum) -MFBN (brushed antique nickel) -MFBN (brushed satin nickel)
BENEFITS
-Turnkey integrated project services -Efficient hardware for easy operation -Minimal look with thin, aluminum profiles -System durability and long-term integrity -Easy installation with self-correcting components -Wide-ranging acoustic and privacy options at all seams and panel connections -Pre-engineered top structure support solution for taller spaces above finish ceiling
MATERIAL
Glass
WARRANTY
1 Year Limited Warranty
DETAIL
ACCESSORIES
Create with carvart and combine hardware options for a highly unique system that meets all design needs.

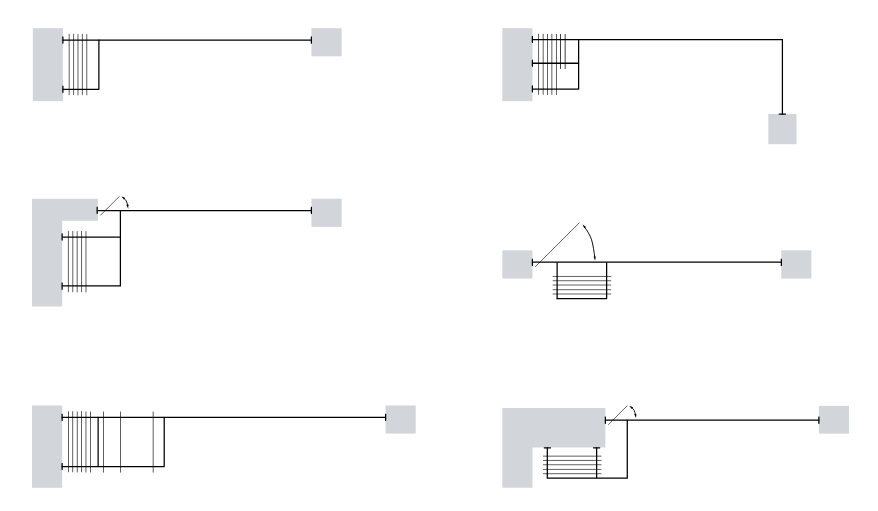

CONFIGURATIONS
Infinite ways to move and park panels to close and open a space to desired specification.

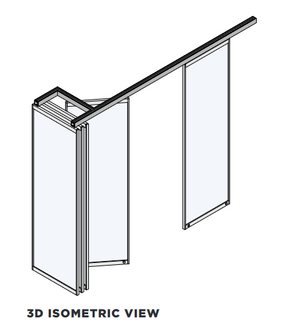

TECHNICAL DRAWINGS
