Carvart Stackwall Frameless
Stackwall Frameless
STACKWALL FRAMELESS
Our glassSTACKWALL > Frameless walls provides a range of elegant and easily operable glass wall solutions that offer privacy through acoustic control and transparency.
This product features glass panels – available from our extensive glass selection- with polished, exposed vertical edges, and are captured by top and bottom rails that travel individually along an upper track and store into a pre-designed parking area.
For a completely streamlined appearance with minimal hardware exposure, the top-hung track can be concealed within the ceiling, allowing glass panels to stack out of sight when parked.
This system offers users a refined partition system that creates acoustic and visual privacy while maximizing streamlined visual connection between adjoining interior spaces.
INFORMATION
BRAND
Carvart
PRODUCT TYPE
Movable Wall
PRODUCTION
Made in NewYork
WARRANTY
1 Year Limited Warranty
APPLICATIONS
- Offices
- Space Dividers
- Commercial Spaces
- Conference Rooms
HARDWARE FINISHES
MOUNTING OPTIONS
-Top-hung; header must support full weight of system - Glass held by clamps in panel shoe
GLASS THICKNESS
Tempered monolithic and tempered laminated: -3/8” [6mm] - 13/16” [21mm]
HARDWARE DIMENSIONS
Anodized aluminum finishes; glass held by steel” clamps; top-hung panels that slide through trackand individually stack into parking area
HARDWA REFINISES
- MFBN (Brushed Satin Nickel)
- MFBN (Brushed Antique Nickel)
- MFSA (Satin Anodized Aluminum)
- MFBA (Black Anodized Aluminum)
- MFPA (Polished Anodized Aluminum)
ACOUSTICAL RATING
Determined by selected glass thickness and type, Sound Transmission Class (STC) is a number value quantifying the ability of a material to resist the transmission of sound. For example, 25 STC would mean only normal speech can be understood through the system, while 50 STC would mean almost nothing could be heard.
PANEL WIDTH (OVERALL MAXIMUM)
Maximum: 47”
SYSTEM HEIGHT (OVERALL MAXIMUM)
Maximum Height: 120”
PANEL TYPES
Fixed and Movable panels can be combined to create multiple configurations for various uses across a movable wall.
DETAIL

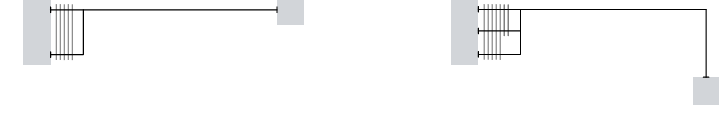

CONFIGURATIONS
Infinite ways to move and park panels to close and open a space to desired specification.
