OBLIO TRENCH GRATES
OBLIO TRENCH GRATES

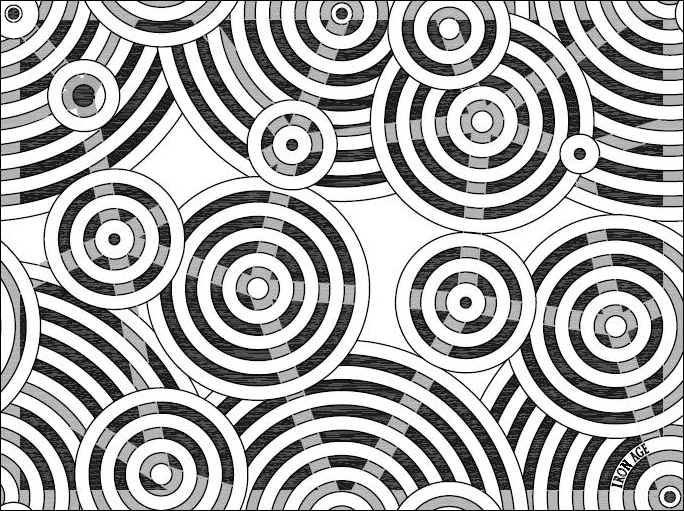

With a pattern that suggests ripples forming on the surface of water, our trademark Oblio design will add distinctive style to a wide range of architectural applications.
INFORMATION
BRAND
Iron Age Design
PRODUCT TYPE
Grates
COLLECTION
Greek
NAME / DESIGN

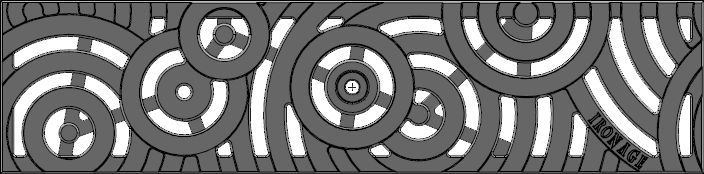

Oblio 4" x 18" Heel Proof
OPTIONAL MATERIAL UPGRADES
- Cast Bronze
- Cast Aluminum
PRODUCT ID
ON4-18I02HP
DIMENSIONS
4.07" x 17.80" x .75"
DOWNLOADS
↓ Data Sheet
↓ CSI 3-Part Spec
FITS
- NDS®
- Spee-D®
- Channel
MATERIAL
Cast Ductile Iron
GALLONS PER MINUTE (GPM)
12.38
DRAIN MANUFACTURER
NDS®
STANDARD FINISH
Raw
RECYCLED CONTENT
80%
COPYRIGHT REGISTRATION NO.
VA 2-159-673

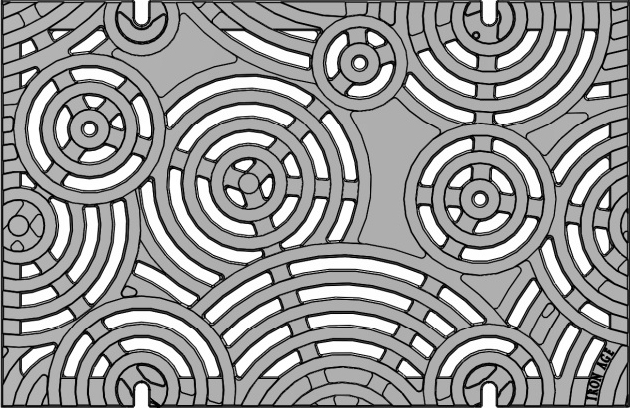

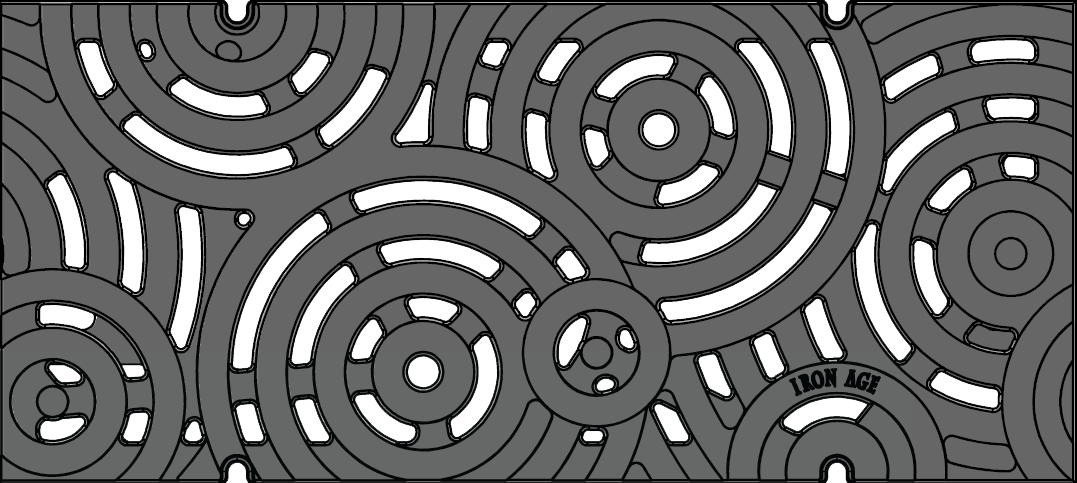

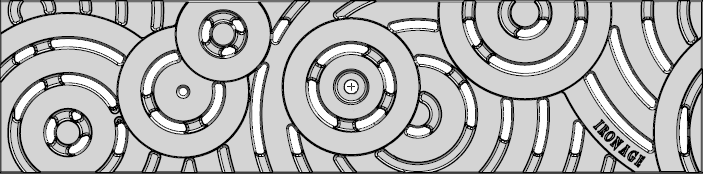

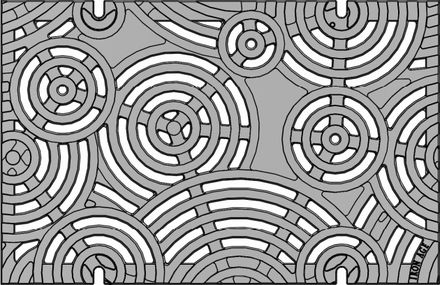

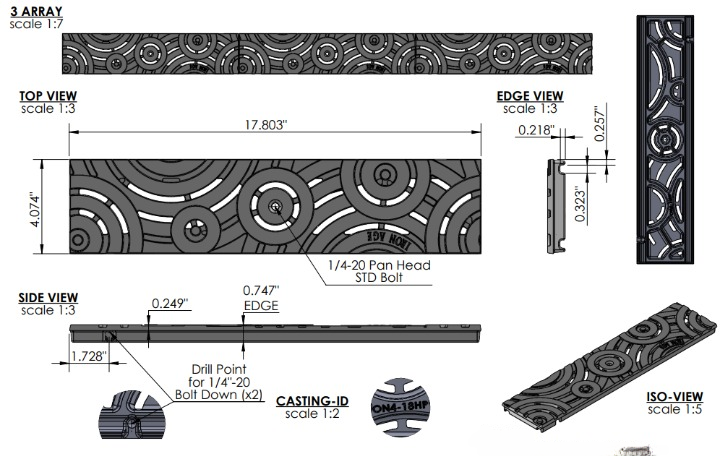

VIEWS
- Iso View

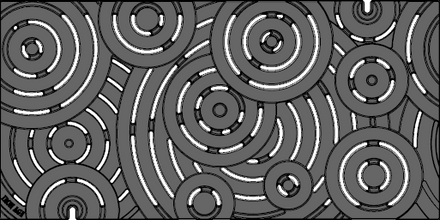

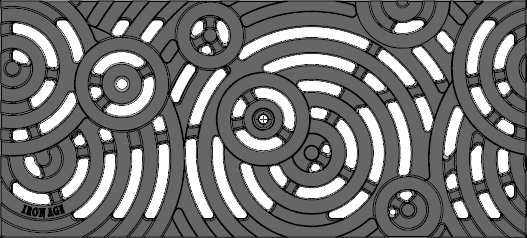

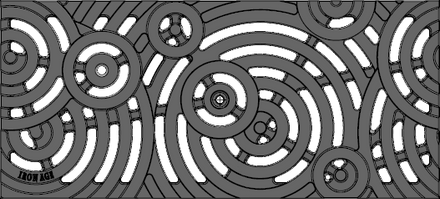

- Top View
- Side View
- Edge View
OPTIONAL FINISH
- Baked On Oil Finish
- Powder Coat
FREE DRAIN AREA
9.45%
GALLONS PER MINU21.27TE
21.27 GPM
WEIGHT
7.20 lbs
ADA COMPLIANT
Yes

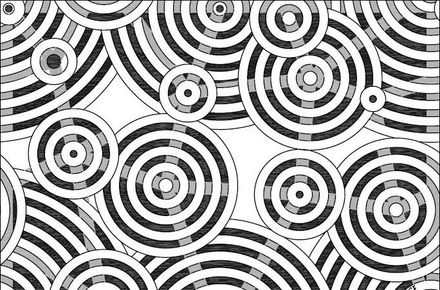

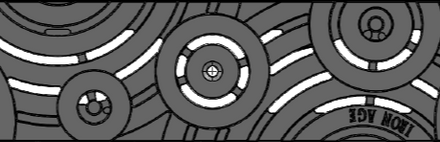

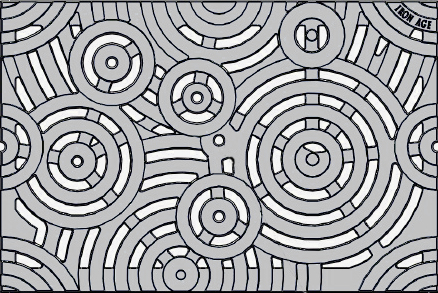

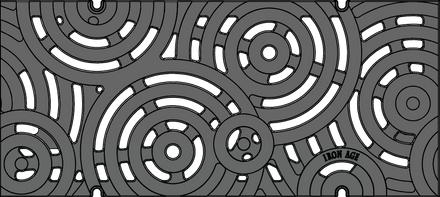

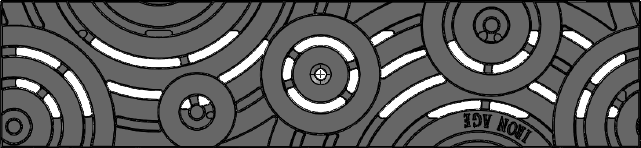

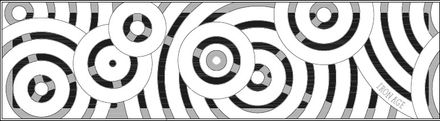

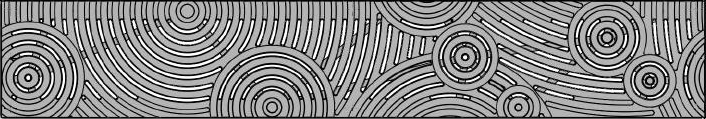

SIZE OPTIONS
SIZE OPTIONS

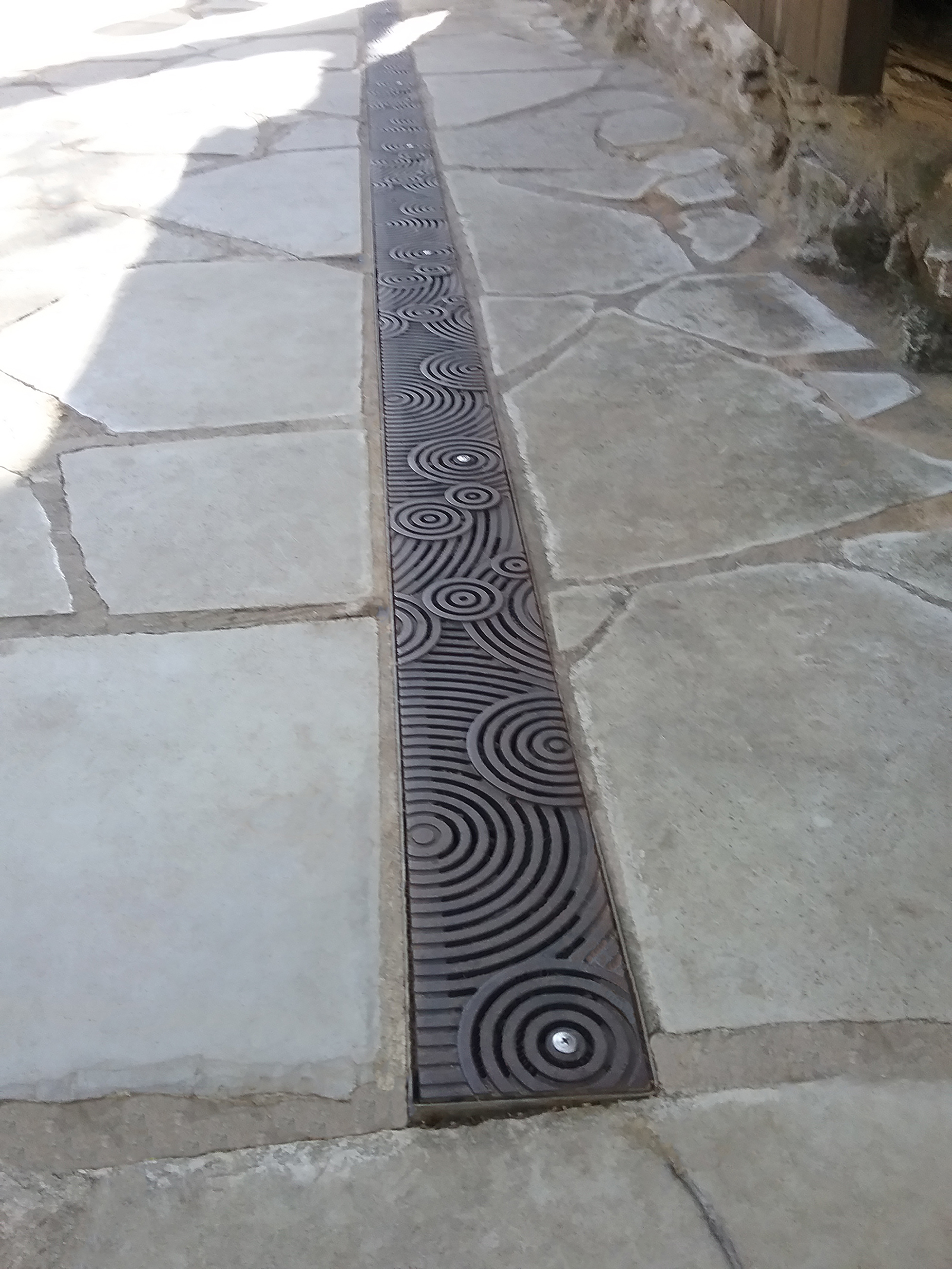

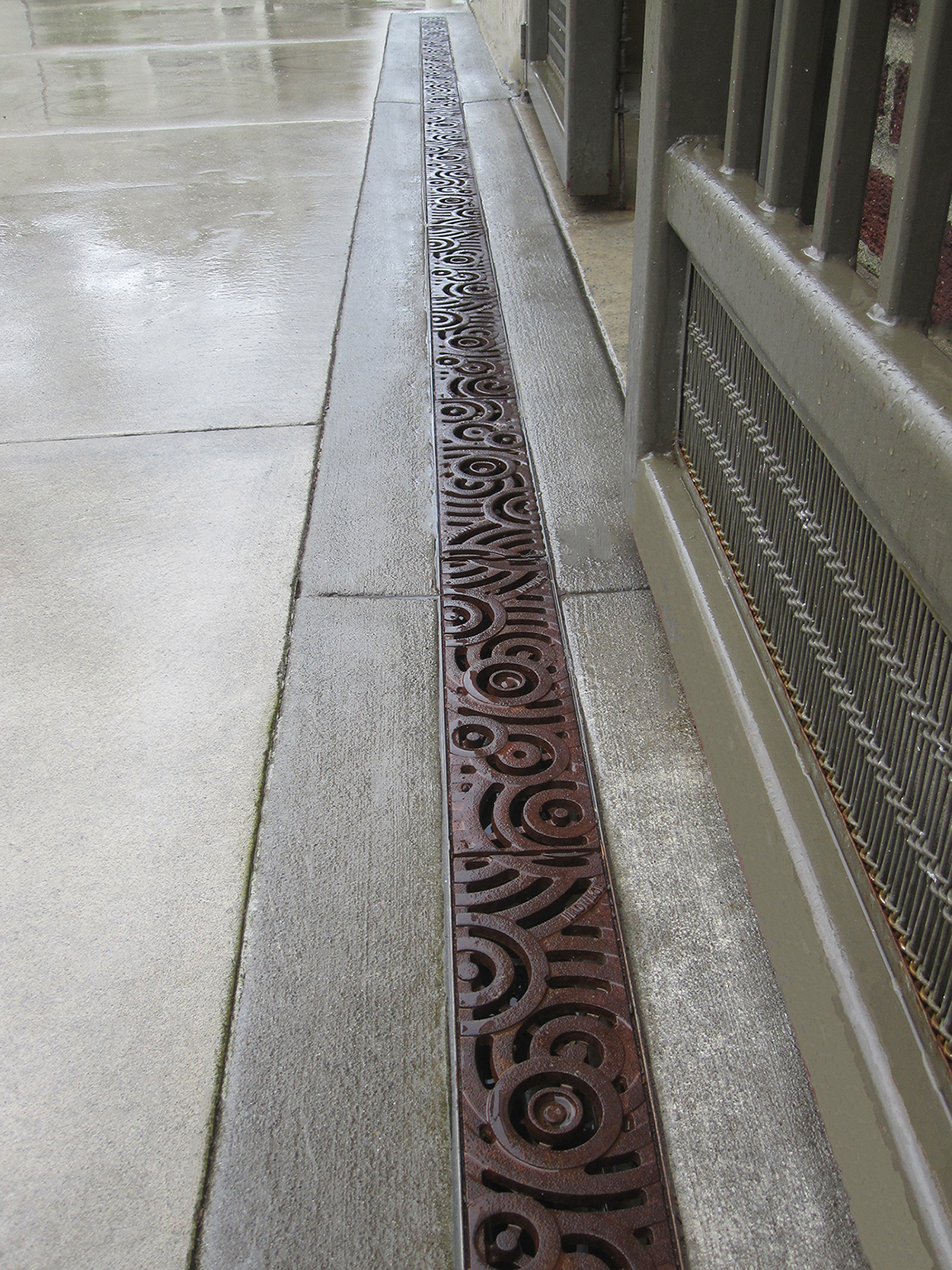

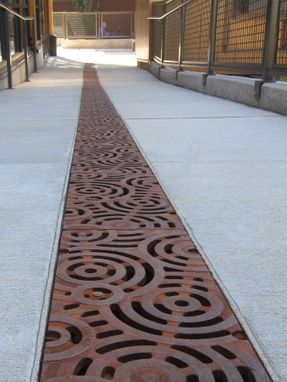

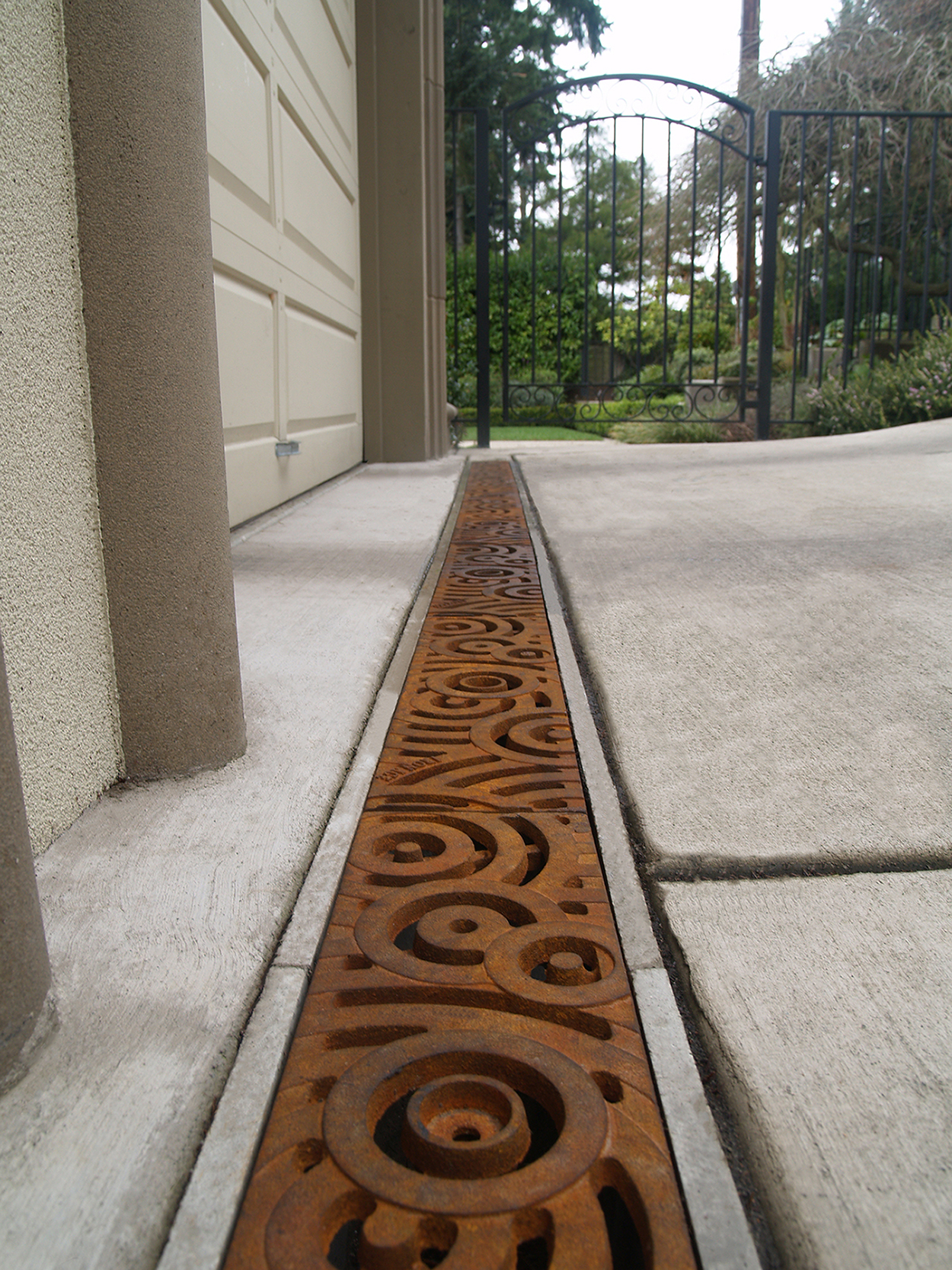

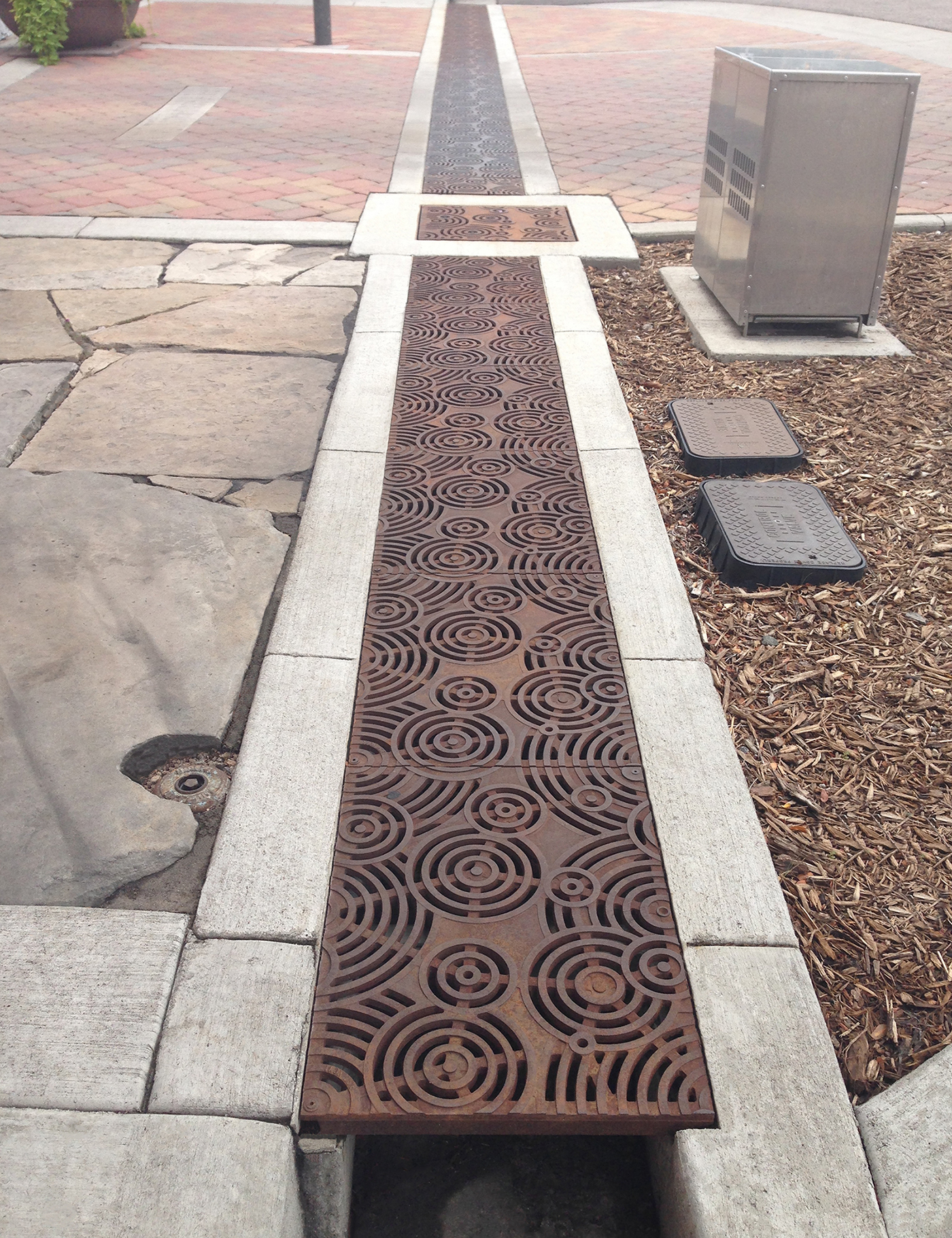

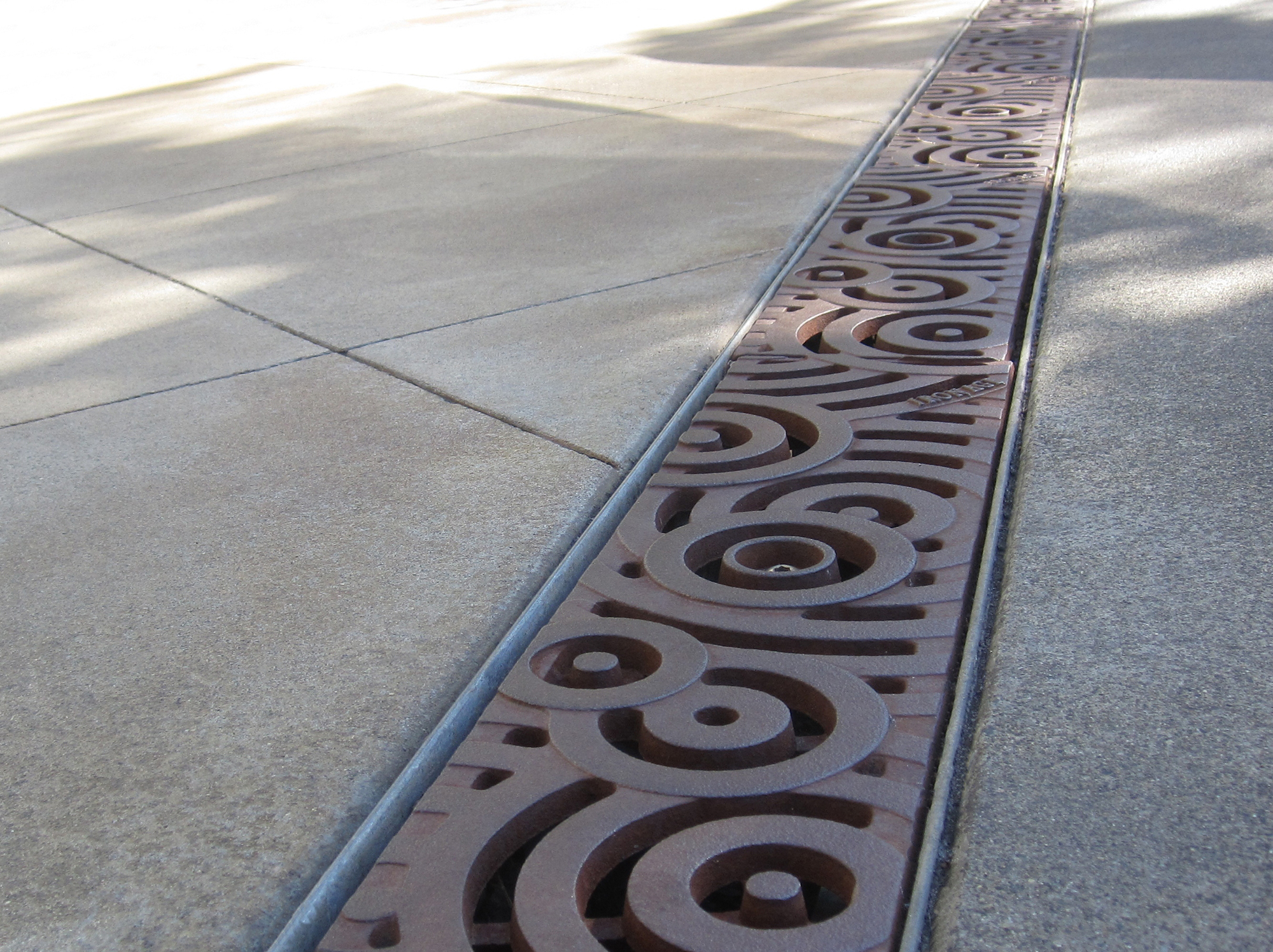

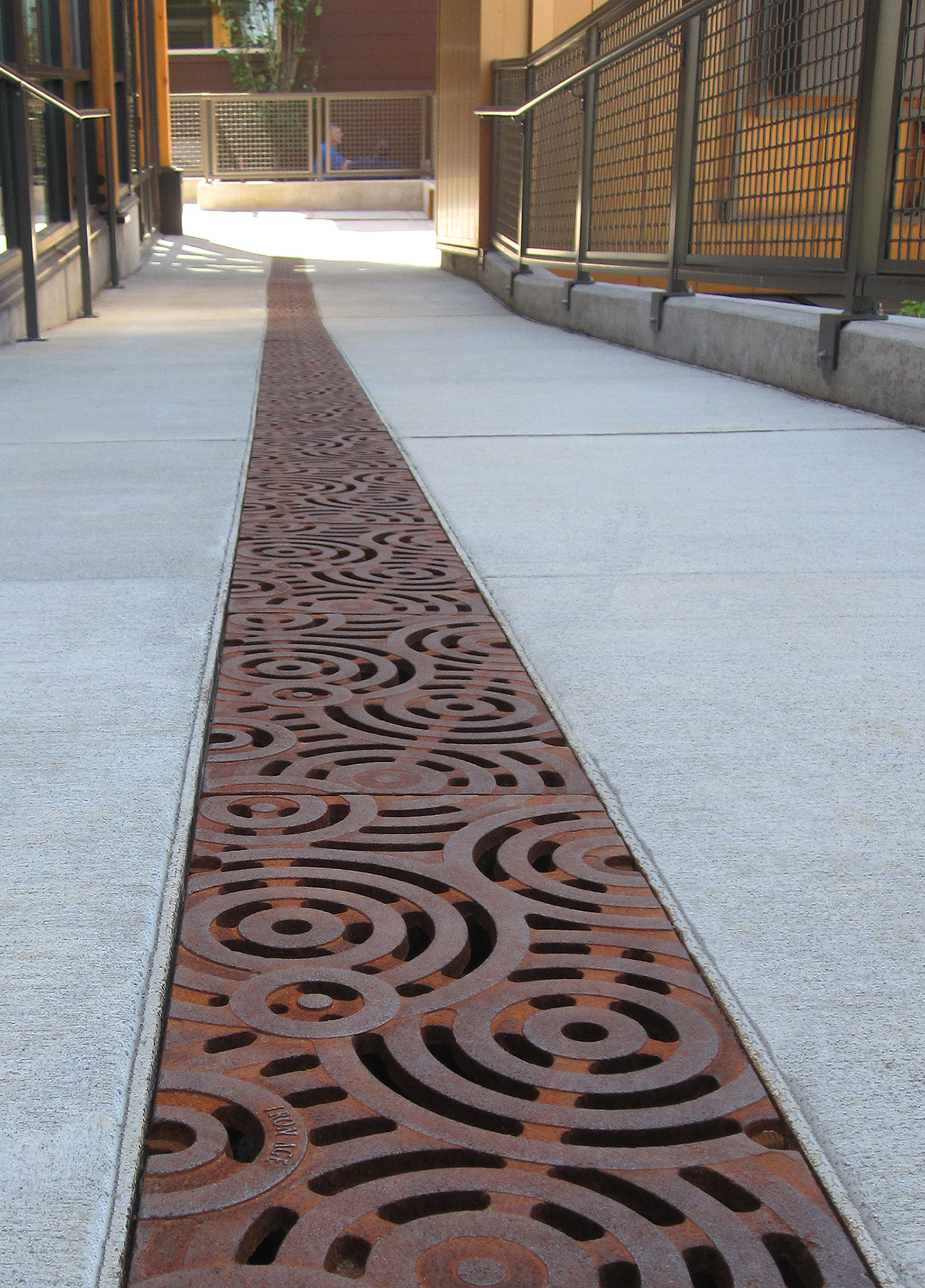

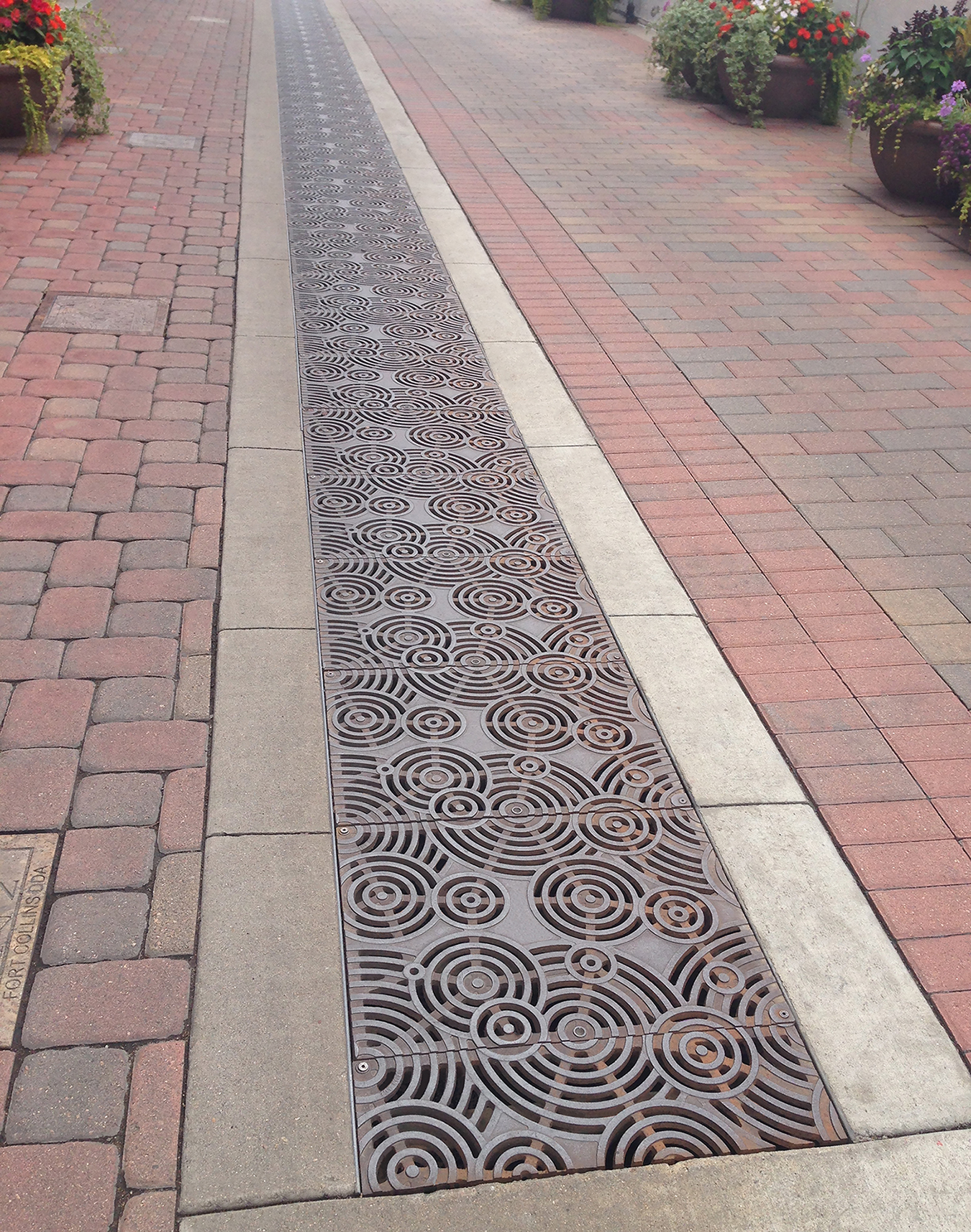

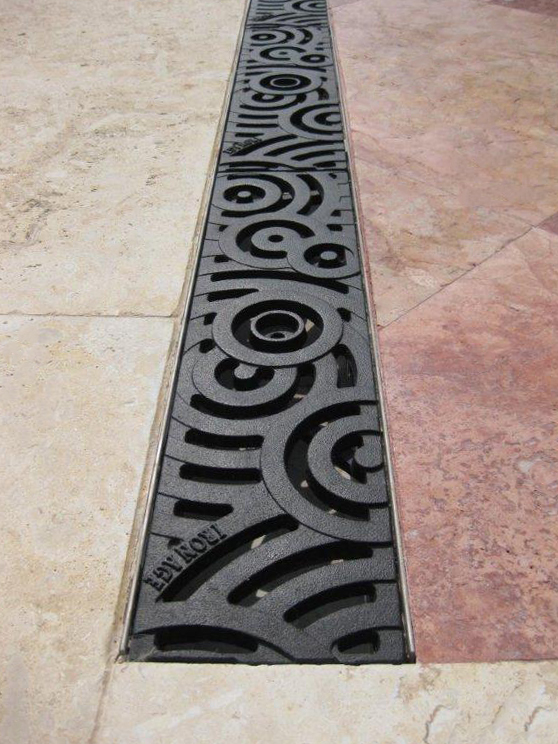

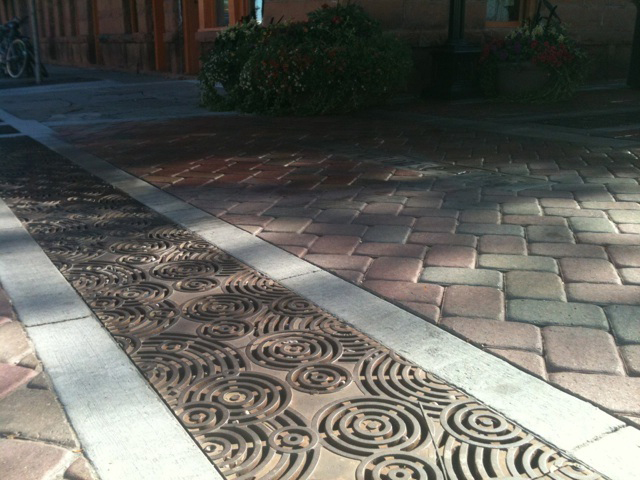

GALLERY
