Hansgrohe Ecostat Bath Thermostat 1001 Cl For Exposed Installation
ECOSTAT BATH THERMOSTAT 1001 CL FOR EXPOSED INSTALLATION BATHROOM TAPS
ECOSTAT BATH THERMOSTAT 1001 CL FOR EXPOSED INSTALLATION BATHROOM TAPS
Ecostat Bath thermostat 1001 CL for exposed installation
With Ecostat shower thermostats, we offer you sophisticated technology at excellent value for money. Whether exposed or concealed installation: Ecostat scores points for elegance, safety and functionality – all with hansgrohe quality
INFORMATION
BRAND
Hansgrohe
PRODUCT TYPE
Bathroom Taps
PRESSURE
- Min. Operating pressure : 1 bar
- Max. Operating pressure : 10 bar

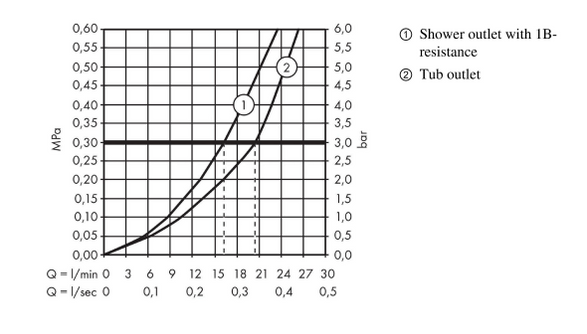

MAXIMUM FLOW
- Maximum flow rate at 3 bar : 20 l/min
- Flow rate for bath spout at 3 ba r : 20 l/min
- Flow rate of hand shower at 3 bar : 16 l/min
COLLECTION
Ecostat Bath
CONNECTION TYPE
S-shaped connections, g ½
FINISH
ART. NO
13201000
SPRAY TYPE MIXER
Normal spray
TEMPERATURE
Temperature limitation adjustable
USE
Actively regulate water consumption - the amount of water can be adjusted using the control dial.
FEATURES
- With silencer
- Shut-off valve
- Non-return valve
- Dirt Filter Included
- Thermostat cartridge
CENTRE DISTANCE
150 ± 12 mm
CONNECTION DIMENSION
DN15
INNOVATIVE TECHNOLOGIES (MORE PLEASURE, MORE EFFICIENCY)
Mixes generous quantities of air into the water. The enriched droplets are luxurious, light and soothing on the skin and cause less splash in the wash basin. For a more efficient use of the precious resource that is water.
- Air Power
- Thermostat
- Safety Stop
- Water Flow Control
PROJECTION
182 mm
SAFETY STOP
At 40 °c
FUNCTIONS
2
MATERIAL HANDLES
Metal
TECHNICAL DRAWING
