DeltaWing Fencing
STRETTO CEILING PANELS

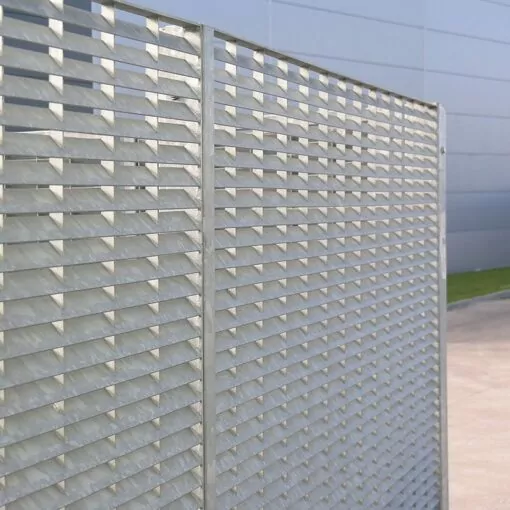

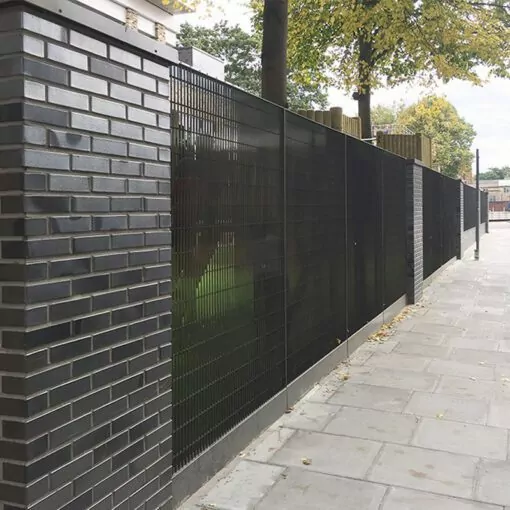

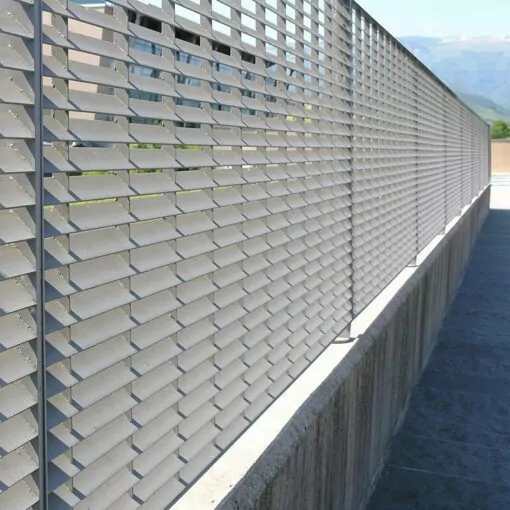

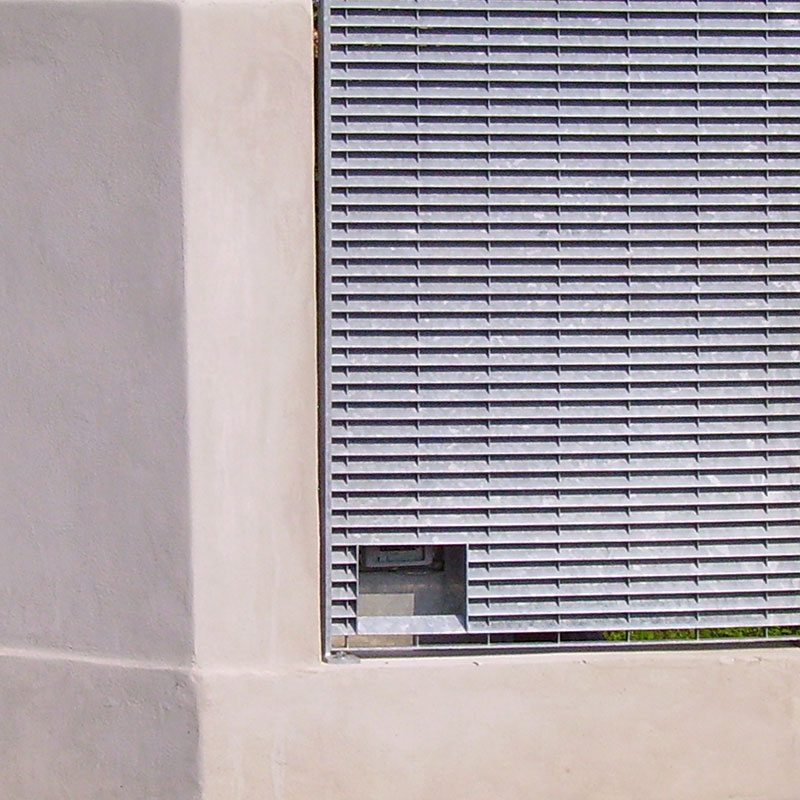

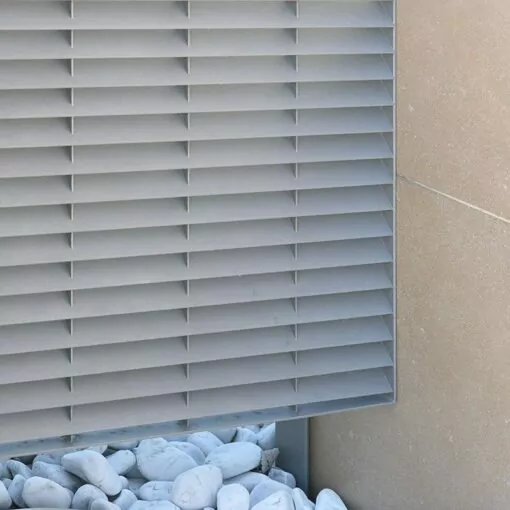

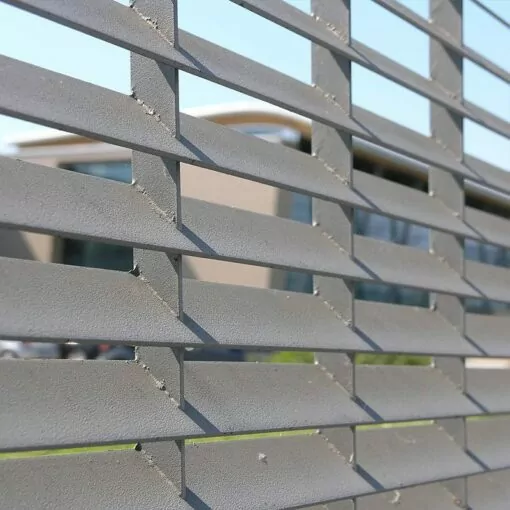

DeltaWing is a robust steel louvred fencing system, offering durability and an aesthetic design.
It is manufactured from inclined steel flat bars, which are pressure locked to recessed vertical flat bars.
INFORMATION
BRAND
Lang+Fulton
PRODUCT TYPE
Fences
COLLECTION
DeltaWing
PRODUCTION
Made in United Kingdom
INCLINED
The inclined louvres, can be spaced at any increment of 11 mm to provide the required level of visual screening.
MANUFACTURED
Steel Flat Bars
ACCORDANCE
BS 1722-14.
VERTICAL FLAT BARS
20 x 2 mm, centred at 132 mm.
LOUVRE FLAT BARS
40 x 2 mm set at 45 degrees
DELTAWING
- DeltaWing-100 : 22mm louvre spacing, 100% visual screening
- DeltaWing-90 : 33mm louvre spacing, 90% visual screening
- DeltaWing-70 : 44mm louvre spacing, 70% visual screening
- DeltaWing-45 : 66mm louvre spacing, 45% visual screening
DETAIL

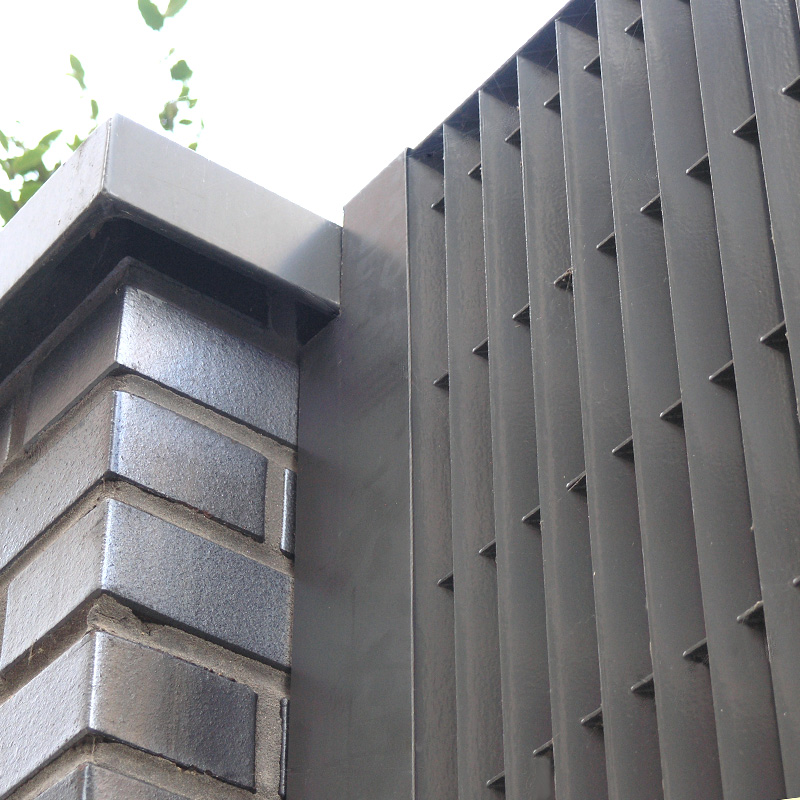

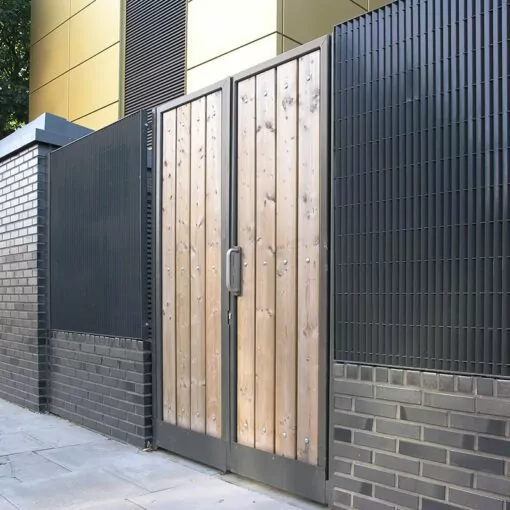

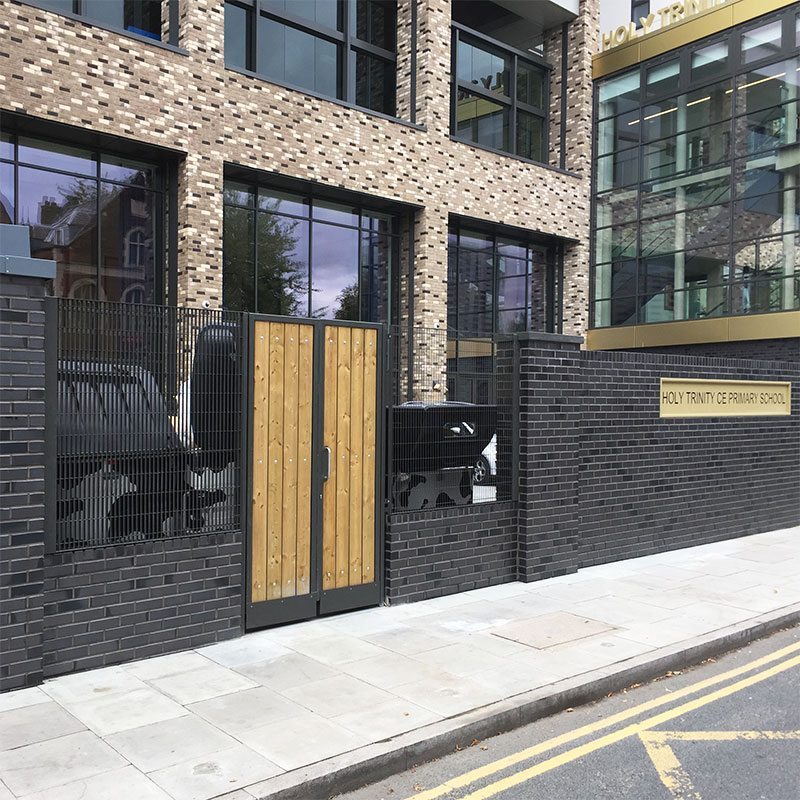

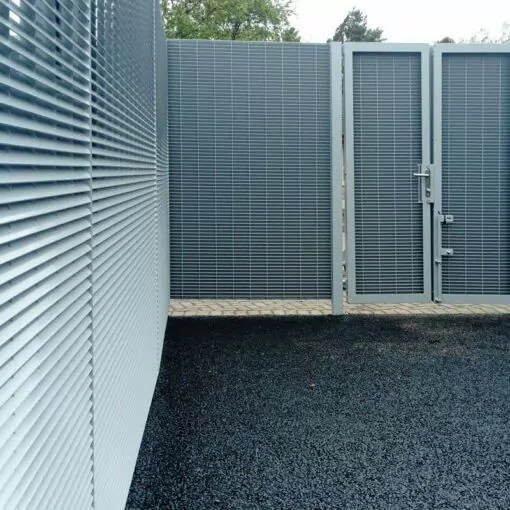

DeltaWing fences are manufactured with a horizontal louvred bar as standard but can also be supplied with a vertical louvred bar. Single leaf, double leaf, pivot, cantilevered or sliding gates are made to match. Optional entry/ exit controls can be supplied for restricted access with automatic activation in the event of fire alarm. Louvre fences are supplied in accordance with BS 1722-14.Panels and posts can be supplied galvanized only or galvanized and powder coated to any RAL colour.

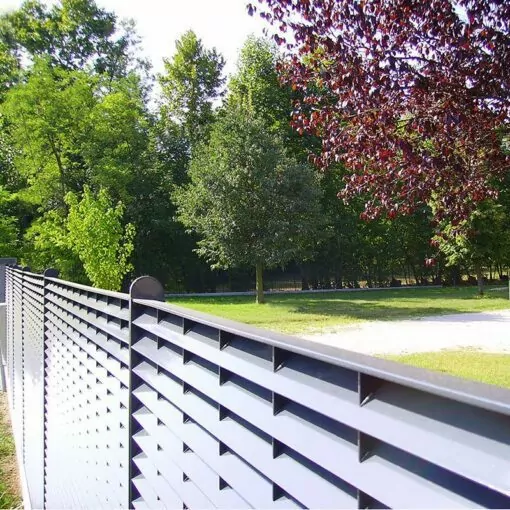

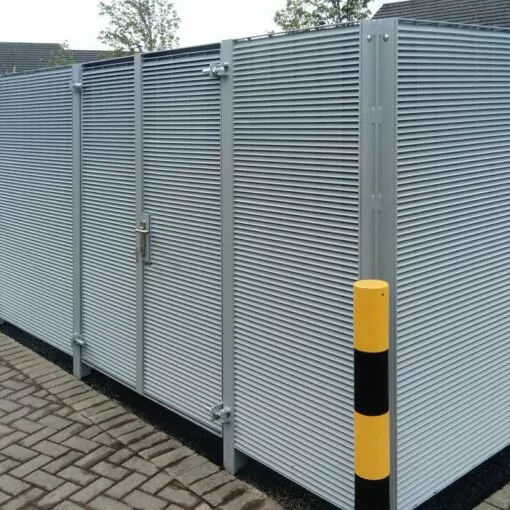

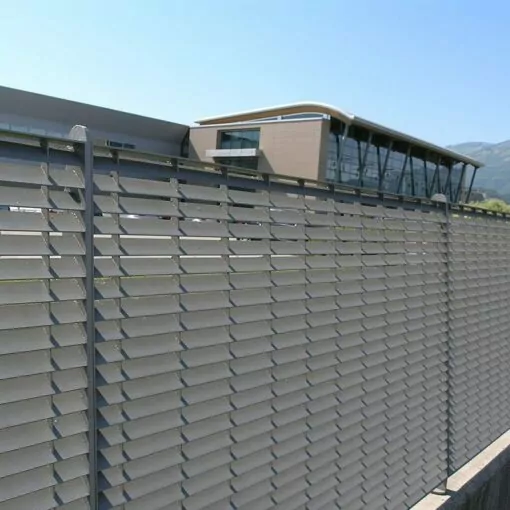

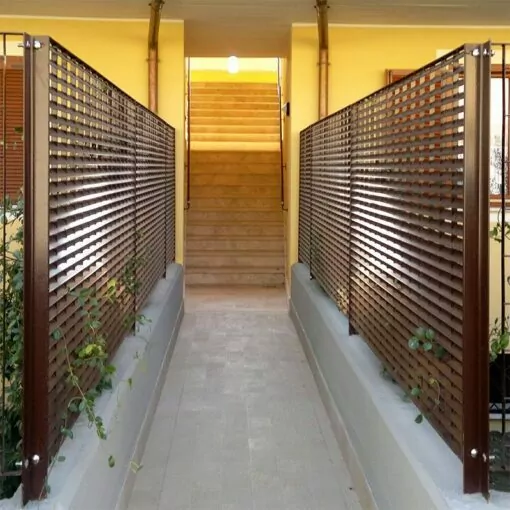

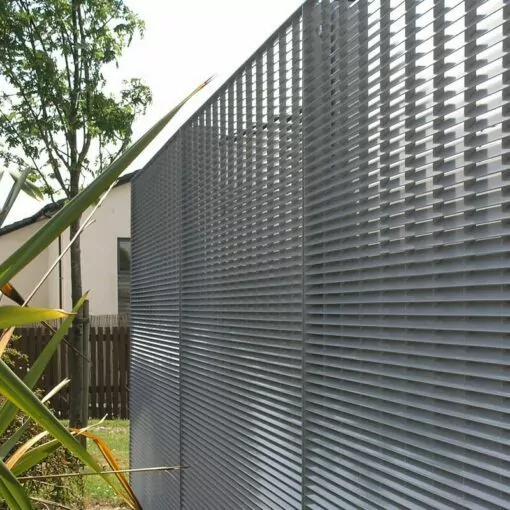

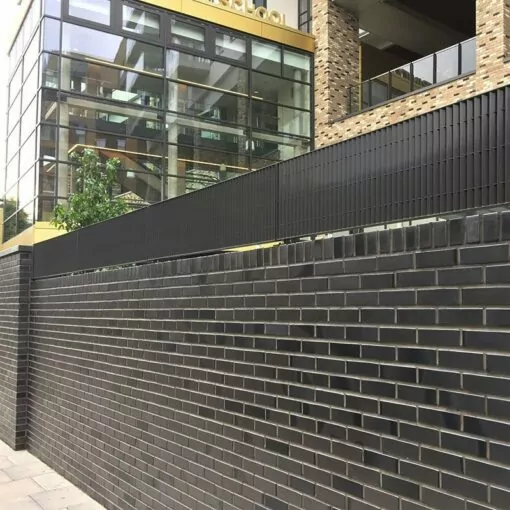

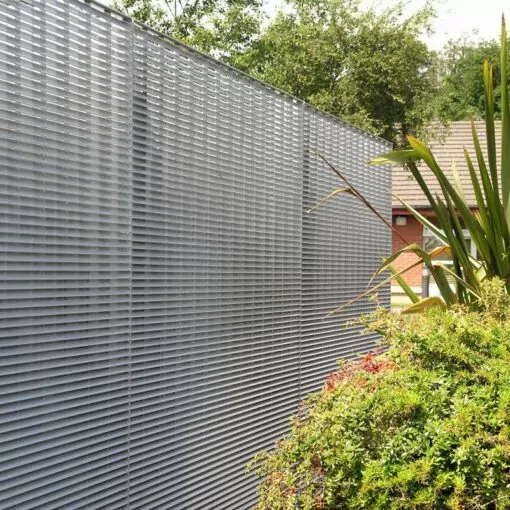

GALLERY
