CTS TXP™ Fast Epoxy Primer
TXP™ FAST EPOXY PRIMER
TXP™ FAST EPOXY PRIMER
Two Component, Alkali Resistant Epoxy Primer
TXP Fast epoxy primer is designed for use with Rapid Set TRU flooring products. TXP Fast’s formulation provides excellent substrate wetting capabilities to promote penetration and adhesion.
INFORMATION
BRAND
Cts
COLOR
White
MIXED VISCOSITY (77°F, BROOKFIELD LV-DVE), ASTM D2196
800 cP
VOC CONTENT
0 g/L
SOLIDS CONTENT
100%
ACCEPTABLE TEMPERATURE
40°F to 100°F
CONCRETE PH
10-13
IDEAL TEMPERATURE
60°F to 75°F
TESTED IN ACCORDANCE WITH
ASTM: D2196, D2240, D695, D790
RELATIVE HUMIDITY (RH)
≤100% (ASTM F2170)
HARDNESS, ASTM D2240
80 Shore D
MVER (MOISTURE VAPOR EMISSION RATE)
MVER ≤10 lbs/1000 sq ft per 24 hrs (ASTM F1869)
MASTERFORMAT® 2016
03 05 00 : Concrete bonding agents, admixtures and adhesives
COMPRESSIVE STRENGTH, ASTM D695
9,850 psi (67.9 MPa)
TACK-FREE TIME
3 hours
WORKING TIME
30-35 minutes
COVERAGE & PACKAGING
TXP FAST is available in 0.8-gallon (3.0 L) and 3-gallon (11.4 L) kits. Coverage is 160 ft2 (15 m2) per gallon at 10 mils (0.25 mm) thickness. Coverage rate is approximate and will vary due to the porosity and surface profile of the concrete substrate.
FOOT TRAFFIC
4-6 hours
COVERAGE AT 10 MIL
160 ft2 per gallon
SHELF LIFE
TXP FAST has a shelf life of 18 months when stored properly in a dry location, protecteCCCXd from moisture, out of direct sunlight, and in an undamaged package.
MOISTURE TOLERANT
It is moisture tolerant and resistant to elevated pH levels. Each kit covers about 400 ft2 to 480 ft2 at 12 mils to 10 mils thick. Tested in accordance with ASTM D2196, D2240, D695, D790 and CDPH Standard Method v1.2.
CLEAN-UP
Use acetone to remove TXP FAST from tools and surrounding areas before it hardens.
HIGHLIGHTS
- 100% solids, low odor, no VOC
- Low viscosity, deep penetrating
- Ready for overlayment in 4-6 hours
- Superior broadcast sand suspension properties
- Seals concrete, minimizes pinholes in overlayment
- High bond strength: Excellent adhesion to concrete
DOWNLOAD
↓ Data Sheet
ADHESION TO CONCRETE
>500 psi (3.44 MPa)
COMPONENTS
Rapid Set® TXP™ FAST is a two-component, 100% solids, high performance, fast-setting, epoxy primer. It is designed for use with Rapid Set® TRU® flooring products. TXP FAST has been specially formulated to have excellent substrate wetting capabilities to promote penetration and adhesion. It allows broadcast sand to be well suspended for excellent overlayment adhesion. Overlayment can be placed in 4-6 hours. TXP FAST is moisture tolerant and resistant to elevated pH levels. It is not designed to be a moisture vapor barrier.
DEATIL
MIXING
Organize work so that all personnel and equipment are in place before mixing. Mix Part A for 2 minutes with a drill and Jiffy-type paint mixer. Add the entire contents of Part B to the entire contents of Part A and mix for an additional 2 minutes. Proper proportioning and homogenization are absolutely critical for success; do not attempt to mix partial kits. Use the drill and Jiffy-type mixer to mix at slow speed (less than 500 rpm) to avoid air entrainment. Do not hand mix. Ensure that the material from the sides and bottom of the pail has been thoroughly mixed in.
SURFACE PREPARATION
TXP FAST is used on properly prepared concrete. Surface must be dry, porous, clean, sound, and free of grease, oil, curing compounds, dust, mastic and other contaminants or bond breakers. Mechanically profile the surface to achieve ICRI Concrete Surface Profile (CSP) 3-5. Shot blasting is the best method to prepare the substrate. Acid etching the concrete surface is not permitted. Upon completion of mechanical preparation, remove all shot, dust, dirt and debris. Determine the substrate Moisture Vapor Emission Rate (MVER) per ASTM F1869 prior to placing TXP FAST. Acceptable substrates have an MVER less than or equal to 10 lbs/1,000 sq. ft. per 24 hours and relative humidity less than or equal to 100%.
JOINTS & REPAIR
Non-moving cracks may be filled with the TXP FAST epoxy. For spalls, prime the surface with TXP FAST, then fill with epoxy mortar made using a mixture of 1 part TXP FAST and up to 5 parts dry, graded sand by volume. Once the repair area has been filled, continue with the application coat of the TXP FAST and subsequent system installation in accordance with product requirements. All moving joints must be honored through the finished floor and filled with an appropriate joint sealant or filler. TXP FAST should not be used in expansion joints, isolation joints, construction joints or any moving cracks.
WARNING
AVOID BREATHING OF VAPORS. FORCED LOCAL EXHAUST IS RECOMMENDED TO EFFECTIVELY MINIMIZE EXPOSURE. NIOSH approved, organic vapor respirators and forced exhaust must be used in confined areas, when conditions (such as heated polymer, sanding) may cause high vapor concentrations, or when applying large volumes. Do not weld on, burn or torch any epoxy material. Hazardous vapor is released when an epoxy is burned. Avoid skin or eye contact. Wash skin with soap and water if contact occurs. If eye contact occurs, flush with water for 15 minutes and obtain medical attention. Read and understand all cautions on container labels and safety data sheets before using this material.
LIMITED WARRANTY
CTS CEMENT MANUFACTURING CORP. (CTS) warrants its materials to be of good quality and, at its option, will replace or refund the purchase price of any material proven to be defective within one (1) year from date of purchase. The above remedies shall be the limit of CTS’ responsibility. Except for the foregoing, all warranties expressed or implied, including merchantability and fitness for a particular purpose, are excluded. CTS shall not be liable for any consequential, incidental, or special damages arising directly or indirectly from the use of the materials.
USER RESPONSIBILITY
Before using CTS products, read current technical data sheets, bulletins, product labels and safety data sheets at www.CTScement.com. It is the user’s responsibility to review instructions and warnings for any CTS products prior to use. Contact CTS prior to product installation when additional information is required, or when project conditions are not in compliance with specifications and/or installation requirements.Always comply with subsequent manufacturer’s testing and installation requirements when their products are used in conjunction with Rapid Set® TRU® flooring products.
PLACEMENT

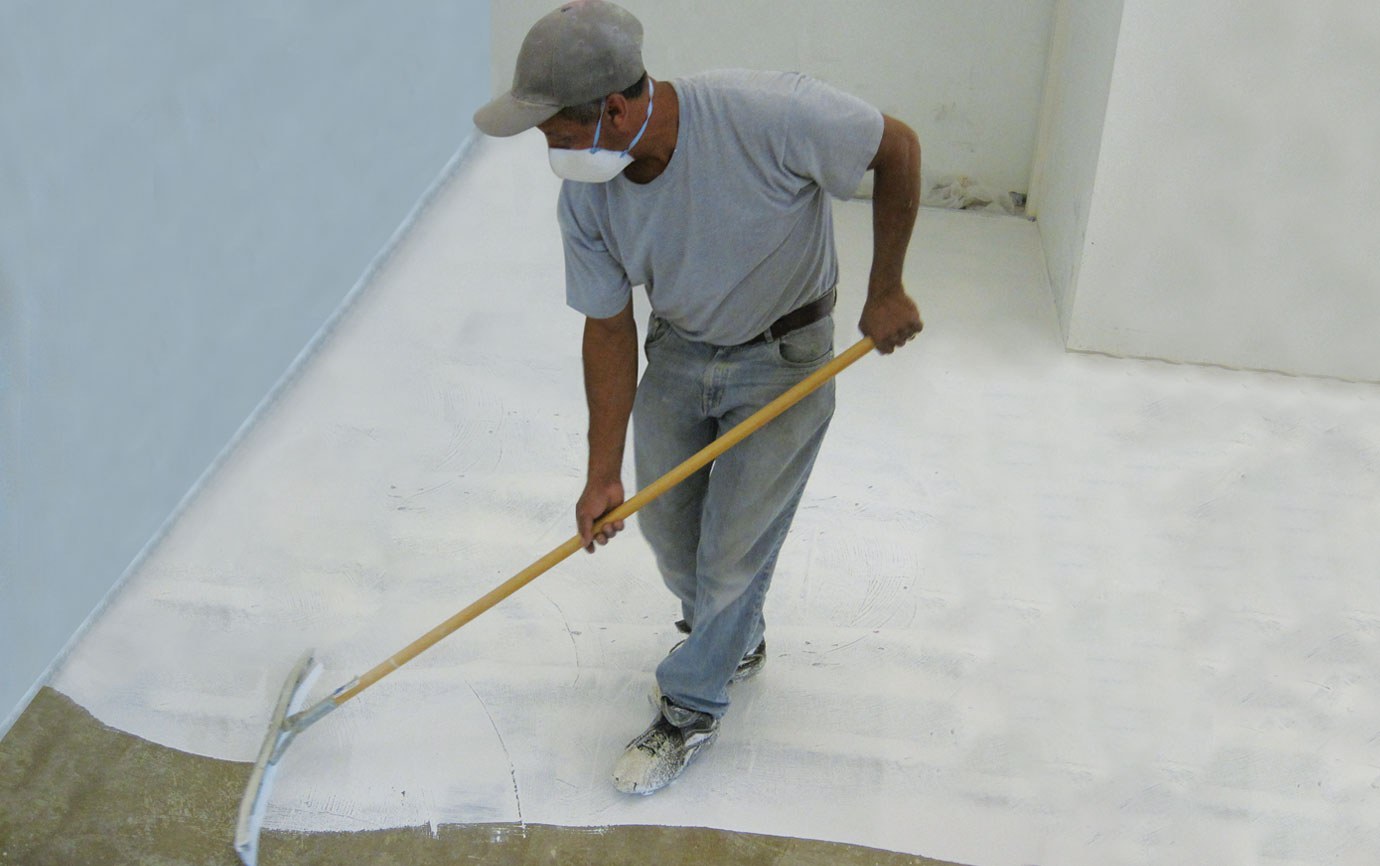

Upon completion of mixing, immediately pour the entire mixed TXP FAST kit onto the surface. Mixed material left in the bucket will rapidly generate heat and become unusable. Spread the TXP FAST with a squeegee to the appropriate coverage rate: 133 ft2 (12 m2) per gallon at 12 mils (0.30 mm) thickness or 160 ft2 (15 m2) per gallon at 10 mils (0.25 mm) thickness.
To achieve a uniform thickness, back roll perpendicular to the squeegee application with a 1/2" (12.7 mm) nap roller. Use a paint brush for hard to reach areas. Immediately broadcast with clean, dry silica sand (#20-#30 mesh) to rejection [approximately 50 lbs to 75 lbs per 100 ft2 (2.4 kg to 3.7 kg per m2)]. Sweep and vacuum to remove all loose sand after a minimum curing period of 4 hours. Areas that are bare or not seeded to rejection must be recoated. Within 24 hours, those areas may be reprimed and rebroadcast.
After 24 hours, the floor must be mechanically abraded, primed, broadcast and cured prior to proceeding. Surface and ambient temperatures must be between 40°F and 100°F (4°C and 38°C). At 70°F (21°C), Rapid Set TXP FAST has a working time of approximately 30-35 minutes. Higher temperatures will shorten the working time. Lower temperatures will extend the working time and may delay the time in which excess sand may be removed.
