Irsap Get Up Air Mix Radiator
GET UP AIR MIX RADIATOR
GET UP AIR MIX RADIATOR
The GET UP AIR MIX radiator can be used as a drying rack. GET UP AIR MIX is combined with a 1000 Watt electric power booster system.
This system provides a uniform temperature in the room where it is installed.
INFORMATION
BRAND
Irsap
PRODUCT TYPE
Radiator
STANDARD EQUIPMENT
- 3 wall fixings
- 1 venting valve of 1/8” for radiators model M (height 1076 mm); 1 venting valve of 1/8” and 1 venting valve of 1/2" for radiators model L (height 1499 mm)
CERTIFICATIONS
FINISHES AVAILABLE
- Standard White
- Classic finished
- Special finished
- Other RAL colors
CAPACITY
Maximum capacity of the towel rails : 7 kg
THREADING
Threading at the ends of the manifolds right gas 1/2”
PRODUCTION
Made in Italy
ELECTRICITY
1000 Watt
TECHNICAL SPECIFICATIONS
Wireless communication via radio signals transmitted to the receiver connected to the system.
- You can activate the manual functions
- Approx. 30-50 metre range in residential environments (868 MHz)
- Radiofrequency communication pursuant to European standards
CALCULATE THE POWER
How to choose the Oasi radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space.
CHARACTERISTICS
- ON/OFF switch
- Insulation: CLASSE II
- Protection index : IP24
- Power installed = 1000 W
- Power supply 230 V 50 Hz, 1 ph
- Electronic ambient thermostat
- Long electricity cable : 1.200 mm, schuko plug
MATERIAL
Steel Towel Warmer
DOWNLOAD
↓ Data Sheet
DIAMETER
- 30 mm diameter round lateral manifolds
- 23 mm diameter horizontal round bar heating elements
WORKING PRESSURE
Maximum working pressure 4 bar
TEMPERATURE
Maximum Working Temperature 95°c
WIRELESS REMOTE CONTROL FOR BOOSTER CONTROL
GET UP AIR MIX is equipped with a wireless controller that allows remote management of every electric radiator function. Because the controller is wireless, it has the advantage of being quick and easy to install and does not require any modifications within the home.

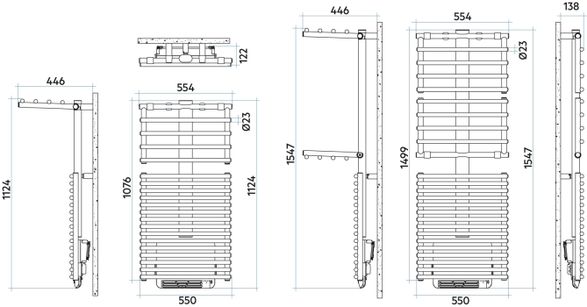

TECHNICAL DRAWING
TECHNICAL DATA
Thanks to the high performance of Irsap GET UP AIR MIX radiators, the ideal Δt for low temperature projects is Δt at 30°C.For Δt different from 50°C use the formula Q=Qn (Δt / 50)n
| MODEL | DEPTH (MM) | HEIGHT (MM) | WIDTH (MM) | CONN. CENTRE (MM) | WEIGHT (KG) | CAPACITY (LT) | ΔT=50°C (BTU/H) | EXPONENT | Electric Power with Booster (Watt) |
|---|---|---|---|---|---|---|---|---|---|
| 1076 20 rails 1 espace | 122,0 | 1124 | 550 | 500 | 17,20 | 6,88 | 625,0 | 1,251 | 1000 |
| 1499 25 rails 2 espaces | 122,0 | 1547 | 550 | 500 | 22,10 | 9,18 | 775,0 | 1,278 | 1000 |
FEATURES
-Low Temperature -Electric Radiator with Booster Available -Hydraulic Radiator Available -Electric Radiator Available -Electric Radiator with Booster Available
