Iron Age Designs Dynamo Trench Grate 5" X 20"
DYNAMO TRENCH GRATE 5" X 20"
DYNAMO TRENCH GRATE 5" X 20"

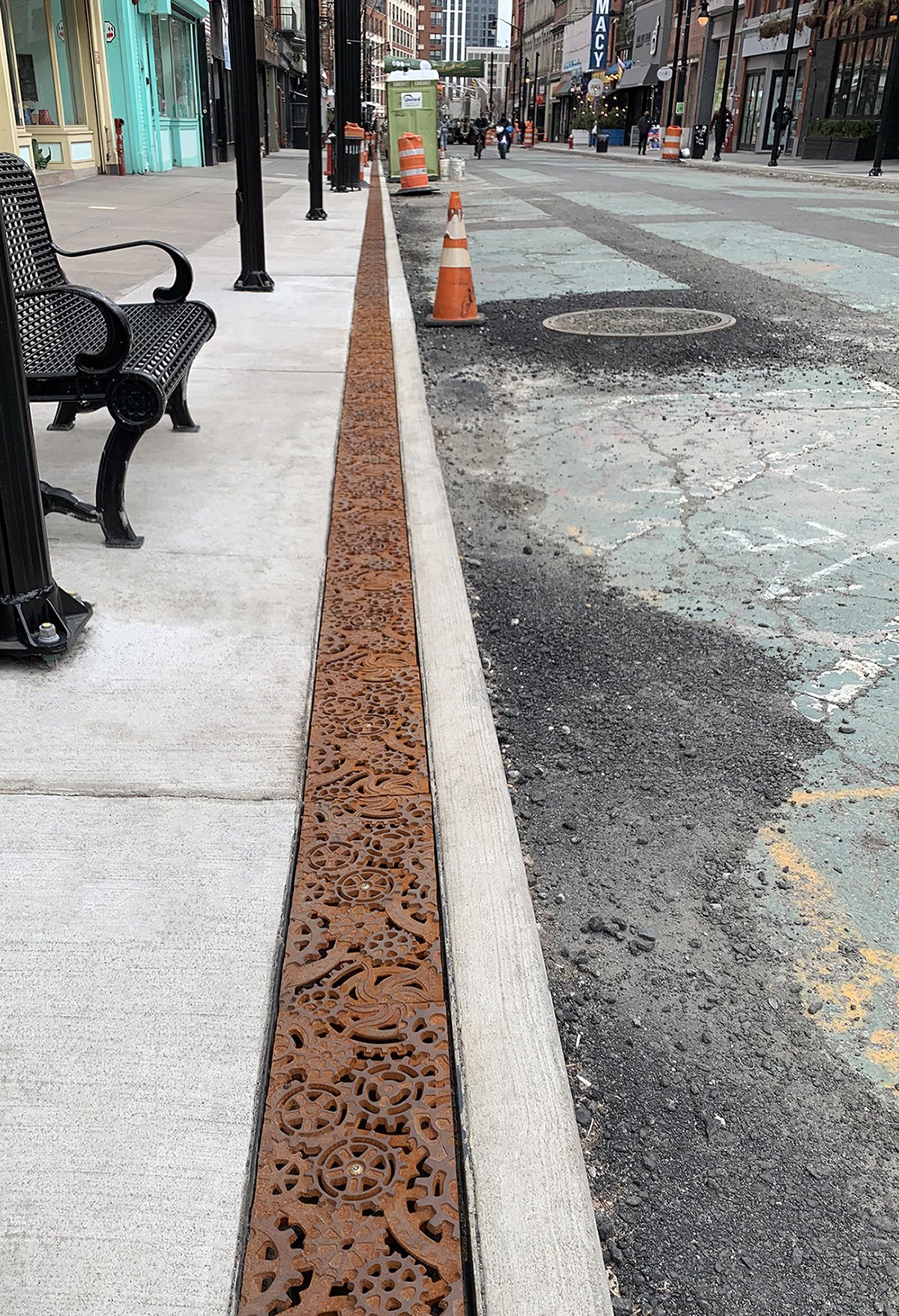

The lively, interlocking gear design of our Dynamo Trench Grate adds an energizing element to any hardscape environment.
INFORMATION
BRAND
Iron Age Design
PRODUCT TYPE
Grates
COLLECTION
Dynamo
PRODUCTION
Made in United States
PRODUCT ID
DYA5-20I21
DESIGN
Dynamo 5" x 20"
DRAIN MANUFACTURER
- ABT
- ACO
- MEA®
FITS
- ABT® PolyDrain®
- MEA® 1000 Series
- ACO™ K100, K100S, KS100
MATERIAL
Cast Ductile Iron
EDGE
0.8125"
COPYRIGHT REGISTRATION NO.
VA 1-964-890
OPTIONAL MATERIAL UPGRADES
- Cast Bronze
- Cast Aluminum
DIMENSIONS
4.81" x 19.56" x .81"
STANDARD FINISH
Raw
DOWNLOADS
↓ Data Sheet
↓ CSI 3-Part Spec
USE
Outdoor
WEIGHT
9.66 lb(s)
FREE DRAIN AREA
13.3%
VIEWS
GALLONS PER MINUTE (GPM)
16.41
RECYCLED CONTENT
80%
ADA COMPLIANT
Yes
OPTIONAL FINISH
Baked On Oil Finish Powder Coat
