Iron Age Designs Greek Key Trench Grates
GREEK KEY TRENCH GRATES
GREEK KEY TRENCH GRATES
Greek Key was the most important symbol in Ancient Greece, representing infinity or the eternal flow of life.
INFORMATION
BRAND
Iron Age Design
PRODUCT TYPE
Grates
GALLONS PER MINU21.27TE (GPM)
21.27
OPTIONAL MATERIAL UPGRADES
- Cast Aluminum
- Cast Bronze
COLLECTION
Greek
PRODUCTION
Made in United States
DOWNLOADS
↓ Data Sheet
↓ CSI 3-Part Spec
DESIGN
Greek Key 5" x 20""
RECYCLED CONTENT
80%
COPYRIGHT REGISTRATION NO
VA 2-007-080
STANDARD FINISH
Baked On Oil Finish Powder Coat
FITS
- ABT® PolyDrain®
- MEA® 1000 Series
- ACO™ K100, K100S, KS100
MATERIAL
Cast Ductile Iron
STANDARD FINISH
Raw
PRODUCT ID
GA5-20I21
DIMENSIONS
4.81" x 19.44" x .81"
METAL PRODUCT
Our take on this classical motif showcases the stunning dimension and depth characteristic of all our cast metal products.
DRAIN MANUFACTURER
- ABT®
- ACO™
- MEA®
USE
Outdoor
FREE DRAIN AREA
17%
WEIGHT
11 lbs
ADA COMPLIANT
Yes

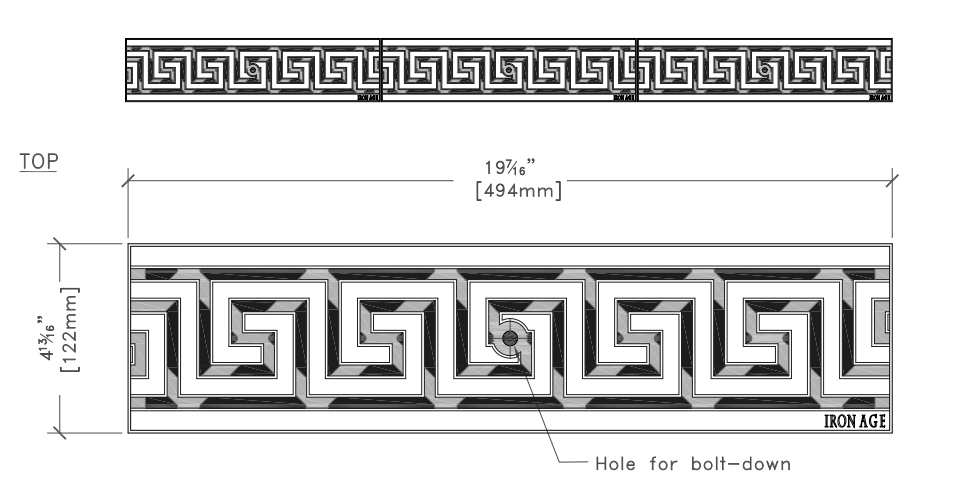

VIEW
Top View
