DISCOVERY I WOOD STOVE
DISCOVERY I WOOD STOVE
The Discovery I is a compact design that provides the perfect amount of heat for smaller spaces. And heating that space has never been easier with a space saving wood storage bin designed right into the stove makes grabbing that next piece of wood easy.
Using the Automatic Combustion Control (ACC) makes this stove easy to light and allows you to give it a boost of air anytime the fire needs it. Changing the appearance of your stove has never been easier, just pick out some 12 x 12 ceramic tiles, slide them in the side panel of the stove and create or change the look any time your want.
INFORMATION
EFFICIENCY
Weighted average LHV (Low Heating Value) & HHV (High Heating Value) efficiencies using data collected during EPA emissions test. HHV efficiency over 75% qualifies for the 2021-2023 Federal Tax Credit.
BRAND
Quadra Fire
PRODUCT TYPE
Stove
COLLECTION
Discovery
MAX. BURN TIME
7 hrs
EMISSIONS
1.7 grams/hour
FIREBOX
1.4 cu ft
PRODUCTION
Made in United States
DIMENSION
Length : 16"
FUEL TYPE
Wood
VIEWING AREA
125 sq in
ACTUAL WEIGHT
285 lb
DOWNLOADS (SERVICE PARTS & OWNER'S MANUALS ) / DOWNLOADS (BROCHURE & INSTALLATION MANUALS)
↓ Brochure
↓ Install Manual
↓ Service Parts
↓ Owner's Manual
↓ Install Manual (French)
↓ Owners Manual - French
↓ Cord Wood Best Practices
HEATING CAPACITY
This is a general guide, see your local dealer for help in determining the product that best suits your heating needs based on climate, home efficiency, location of the heater, and air movement in the room.
DETAIL
Heat output will vary depending on the type of fuel used. The flame and ember appearance may vary based on the type of fuel burned and the venting configuration used. Actual product appearance, including flame may differ from image shown. Refer to the owner's manual for complete clearance requirements and specifications. Product specifications and pricing subject to change without notice. For testing and listing information please refer to the owner's/installation manual.
USE
Heating
PEAK BTU/HR OUTPUT
44.400
TECHNICAL DRAWINGS
TECHNICAL DRAWINGS

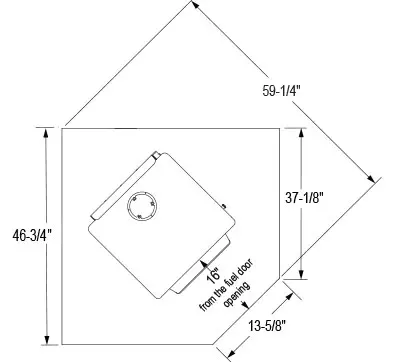

-Front View -Side View -Basic clearances (assumes use of double wall pipe) -Corner Hearth Pad - Single Wall Pipe -Corner Hearth Pad - Double Wall Pipe
Single Wall Pipe
Double Wall Pipe
