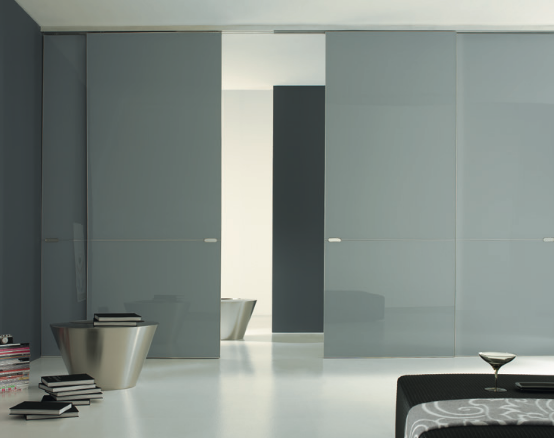

TELESCOPIC DOUBLE DOORS
CARVART framed and frameless glass doors add a sophisticated aesthetic and functionality to any environment.
Options such as sliding glass doors, telescopic doors, and swing doors can create a minimalist look and feel previously unavailable in highly-functional egress applications.
Whether used as stand alone or incorporated into our partition systems, our glass doors will bring the unique touch to your project.
INFORMATION
GLASS THICKNESS
Refer to local code and structural requirements Accommodates 1/8" nominal up to 1/4" nominal.
BRAND
Carvart
PRODUCT TYPE
Sliding Glass Door
ADD-ON DESIGN OPTIONS
- Per specification and upcharges apply Various pull options. -Various plastic/brush connection details
WEIGHT & STRUCTURAL LOADS
Consult local engineer for structural codes and requirements Top rails for individual panels rated up to 200 lbs. Linear per foot weights based on final glass type. Overall weights available upon request for client structural calculations. Refer to CARVART for technical consultation.
COLLECTION
Telescopic
GLASS TYPES
Tempered monolithic.
VIEW
- T (Transparent)
- TW (Translucent W)
- T1 (Translucent 1)
- T2 (Translucent 2)
- T3 (Translucent 3)
- T4 (Translucent 4)
- O (Opaque)
- OT1 (Opaque Translucent 1)
HEIGHTS — OVERALL MINIMUM/ MAXIMUM RANGE
-Glass panels: Minimum 29". Maximum 48"
-Maximum opening lengths (operable): 24 feet (in triple mirrored condition)
HARDWARE DIMENSIONS
-Aluminum single top track: 4-5/8" wide (2 panels min.) x 2" high nominal
-Exposed edge frame: 1-13/16" deep x 1/8" wide (1" including concealed portion)
HARDWARE MATERIALS
Refer to Finish chart Brushed satin anodized aluminum, polished aluminum, black, white, grey, midnight, charcoal, light grey, warm grey, champagne, terra cotta, blackened aluminum. (Custom powder-coated colors available upon request for additional cost).
DETAIL
Additional options for visible or hidden tracks are available with many systems. With a myriad of hardware, frame and mounting options, CARVART door systems use the mediums of glass and woods to beautifully integrate into any space. Contact our team or your local representative to find out more about glassDOORS, design tools, and price ranges.
WIDTHS — OVERALL MINIMUM/ MAXIMUM RANGE
Glass panels: Minimum 29". Maximum 48"
DOWNLOAD
↓ Overview
HARDWARE WARRANTY
5-year limited warranty
GLASS FINISHES
Refer to Finish chart CARVART laminated transparent glass design options available: 01 Core, 02 Color, 03 Pattern, 04 Metallic, 05 Textile, 08 Gradient and 10 Covert.
INSTALLATION
Pre-cut top track speeds up installation. Requires trained and competent glazing or carpenter industry professionals. Installation instructions, assistance and training available at time of order. All hardware components, including doors, will be delivered knocked down and require assembly by a glazing industry professional. Certain glass and hardware finishes are available as pre- assembled products as called out in the glass and hardware finishes pages. Consult a CARVART agent for information on available pre-assembled components.
SURFACES
- Smooth Glass.
- Etched Glass.
CONFIGURATIONS
Straight runs and mirrored conditions.
FUNCTION
Sliding doors operate independently in single, double or triple configurations.
FACILITY DESIGN APPLICATIONS
Door and opening division, space division between offices, conference rooms or flex-space
MOUNTING FASTENERS
MOUNTING FASTENERS Final anchoring decision is client-directed or based on client structural consultant. Mounting fasteners and anchors to be supplied by others.
