STRETTO CEILING PANELS
STRETTO CEILING PANELS

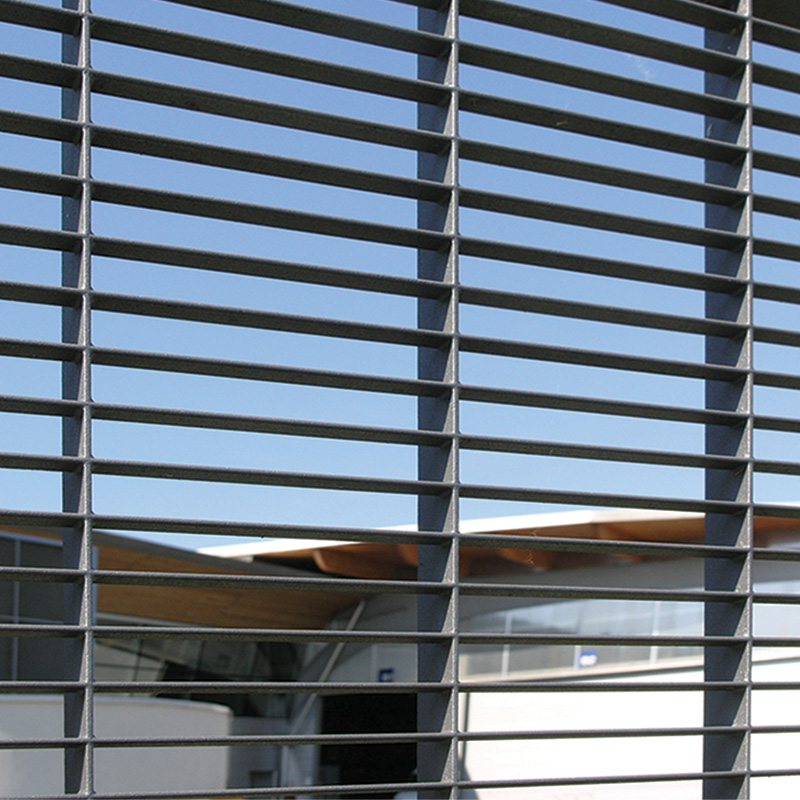

Stretto is a grating specifically designed for architectural projects and is particularly suited to balustrading, ceiling panels and applications which benefit from partial screening.
The exclusive and unusual arrangement of closely spaced transverse bars generates a striking visual presence with a distinctive lateral emphasis.
It also combines a degree of diffused visual screening with good through-visibility for balcony balustrades and provides an excellent level of security.
INFORMATION
FRAMING
Framed top and bottom with 25 x 3 mm flat bars.
BRAND
Lang+Fulto
PRODUCT TYPE
Ceiling Panels
UNICLASS
Ss_25_60_05_05 Balustrade and guarding systems
APERTURE (W X H)
132 x 11 mm.
BEARING BAR
25 x 2 mm (minimum).
PRODUCTION
Made in United Kingdom
SHAPE
Rectangle (Vertical load bearing bars.)
DETAIL
A grating for vertical applications that is particularly suited to balustrading. It has an arrangement of closely spaced transverse bars that generates a striking visual presence with good through-visibility, and provides a good level of security. The process of pressure locking produces a grating material with perfectly formed intersections, which are ideally suited to residential projects such as balconies and balustrading.
CAWS
- L30/55 Proprietary balustrades
- L30/560 Proprietary balustrades
RECYCLABILITY
100%
RECYCLE CONTENT
56 %
APPLICATION
Suitable for vertical applications such as balconies and balustrading.
MATERIAL
Steel
UPRIGHTS
Electrofused steel S235JR.
DIMENSIONS (LXWXH)
Bespoke
HORIZONTAL TRANSVERSE BAR
10x 2mm
FINISH
- Powder-coated
- Galvanized (Hot-dipped to BS EN ISO 1461.)
INFILLS
Horizontal and vertical flat bars, pressure locked mild steel S235JR.
COLORS
- Grey
- Beige
- Black
- Blue
- Bronze
- Brown
- Red
- Gold
- Green
- Silver
- Yellow
- Copper
- White Other
MESH SIZES (C/C)
- Stretto-11 (132×11 mm)
- Stretto-22 (132×22 mm)
- Stretto-33 (132×33 mm)
- Stretto-44 (132×44 mm)
FIXING TO PARENT STRUCTURE
There are three alternative fixing methods, with a minimum of four fixing points per panel. Through holes in the framing bar. Through welded plates. With clamping brackets.
PROCESS OF PRESSURE LOCKING
The process of pressure locking produces a very high quality material with perfectly formed intersections which is ideally suited to interiors and residential projects.
