Usg Concoction Ceilings & Walls System
CONCOCTION CEILINGS & WALLS SYSTEM
CONCOCTION CEILINGS & WALLS SYSTEM
Radians® - Curved Metal Ceilings & Walls System
Lightweight, acoustical, and fully downward accessible, Radians® ceilings break the 3-dimensional barrier with a smoothness of gesture executed with uncompromising precision.
INFORMATION
BRAND
Usg
PRODUCT TYPE
Ceilings & Walls System
PERFORMANCE
Acoustical performance utilizing perforations and sound absorbing materials including Acoustibond and Ultrasorb.
ACOUSTICS
NRC ratings of .75 - .95 deliver superior sound absorption
PERFORATIONS
attern with multiple shapes and sizes to create unique and inspiring projects
SUSTAINABILITY
Up to 99% post consumer recycled content
DESIGN PARAMETERS
PANEL SIZE GUIDELINES
-Maximum length is 96” with max width of 24” -Minimum width is 7” with max length of 96” -Maximum width 48” with max length of 96” -Depth is 1 ½” -Consult factory for custom panel size possibilities -Minimum Radius: is 30” -Maximum Radius: Depends upon panel size
INSPIRIATION
Increase clearance above a ceiling for ductwork or allow daylight to penetrate deeper
APPLICATIONS
- Sloped Ceilings
- Curved Ceilings
- New Construction
- Wall Applications
- Wall to Wall Ceilings
- Downward Accessible
- Pods, Islands, and Clouds
- Interior and Exterior Applications
FEATURES AND BENEFITS
-Design flexibility with panel sizes and layout options. -Fully accessible system that allows access at every panel location. -Standard and customizable perforations are available to create visual patterns.
-Class A per ASTM E84, Zero Flame Spread, non-combustible aluminum core Fire Classification.-Varied mounting arrangements are available to respond to any installation requirements or conditions.-Third party integration of diffusers, lights, speakers, sprinklers, wifi, etc independently suspended).
PERFORATIONS

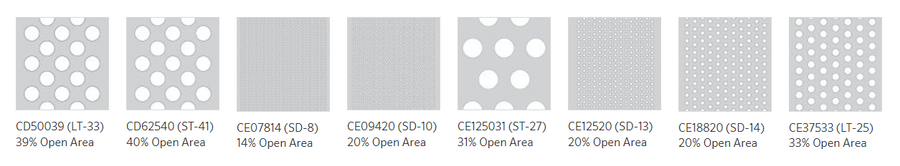

STANDARD PERFORATIONS
FINISHES
METAL
PAINT

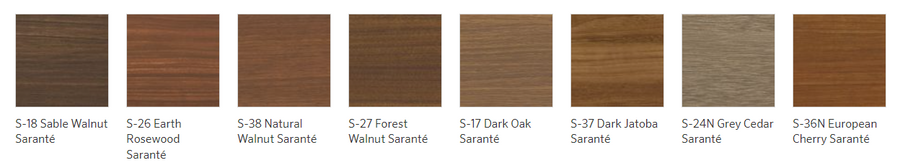

ARBOREAL®
SARANTÉ
