Kirei A Baffle Ceiling Elemen

Wed Aug 28, 2024CeilingsConstructionKirei USA, LLC

A BAFFLE CEILING ELEMEN

A BAFFLE CEILING ELEMEN

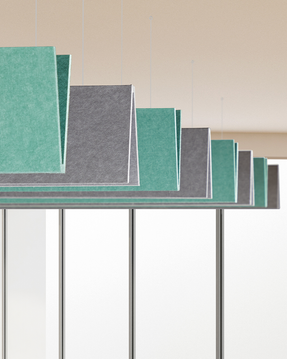

Designed to enhance open ceiling spaces and relieve excess sound reverberation issues, the A-shaped ceiling element features a flat, clean bottom plane and seamless aesthetic.

Hang A Baffles in regular rows, freeform groupings, or with other baffle systems to create beautiful architectural design solutions.

INFORMATION

VOC EMISSIONS

CDPH (CA 01350) Compliant TVOC: <0.5 mg/m3 Ecospecifier GreenTag Compliant TVOC: 0.015 mg/m2/hr (ASTM D5116)

BRAND

Kirei

PRODUCT TYPE

Ceiling Elemen

COLLECTION

A Baffles

MATERIAL

100% PET (60% post-consumer recycled)

PANEL THICKNESS

12mm

FIRE RATING

ASTM E84 Class A

DOWNLOADS

↓ BIM Elements
↓ Cleaning Guide
↓ Installation Guide
↓ Specifications Sheet

DIMENSIONS & WEIGHT

PANEL	WEIGHT	DIMENSION	LF/UNIT
40"	2.6 lbs	40"L x 5.25"W x 7"H	3.3
48"	3.2 lbs	48"L x 5.25"W x 7"H	4
72"	4.8 lbs	72"L x 5.25"W x 7"H	6
96"	6.3 lbs	96"L x 5.25"W x 7"H	8

TECHNICAL DRAWING

SUSTAINABILITY SOUNDS BETTER

A Baffles are made from 60% recycled post consumer plastics so you can be sure that every panel you specify is diverting hundreds of plastic bottles from landfills. Get exactly what you need to help achieve LEED credits and Green Building certifications with our products’ Declare Labels, HPDs, EPDs, and more.

DESIGNER

Kirei

ACOUSTIC DATA

0.65 NRC

INSTALLATION

Baffles are shipped ready to install. Each baffle has two attachment points with preset set screws and are easily installed wih aircraft cable and commonly available hardware. A Baffles have two attachment points with a ¼”-20 female thread and come with your choice of eyebolts or ¼”-20 male threaded screw hardware.

To install A Baffles, attach the specified ceiling mounting hardware and suspension cable/chain/rod/etc. with the appropriate connector at the bottom end. Once the ceiling hardware is installed, attach the connector to the supplied attachment hardware on the A Baffle.
