Iron Age Designs Divisadero Trench Grates
DIVISADERO TRENCH GRATES
DIVISADERO TRENCH GRATES

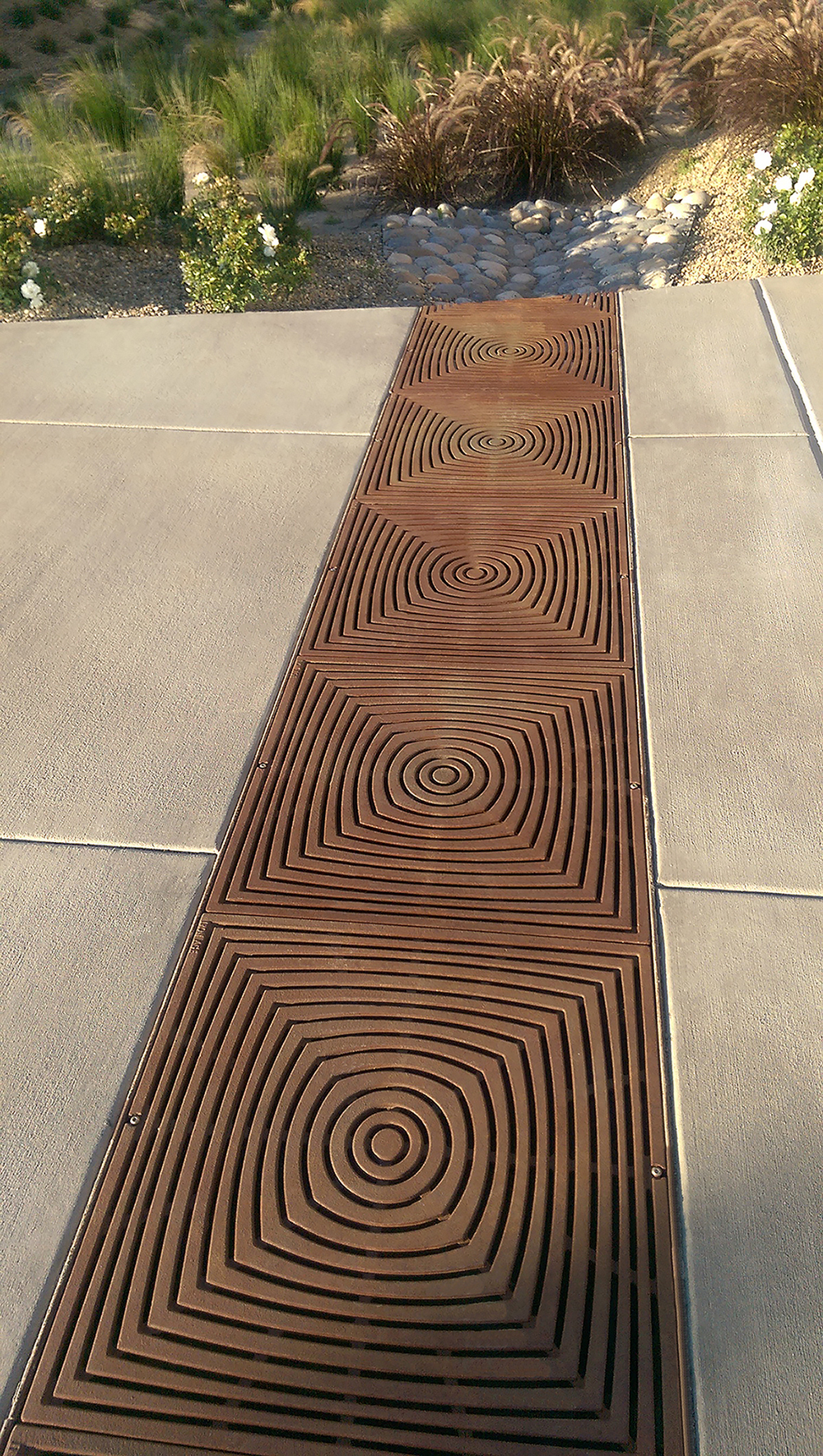

With concentric circles in the center radiating outward to increasingly squared-off versions of themselves, our Divisadero pattern is a modernist take on traditional design.
INFORMATION
PRODUCT TYPE
Grates
FITS
Iron Age Custom Frame
THICKNESS
1.00"
COPYRIGHT REGISTRATION NO.
VA-2-007-104
DESIGN
Divisadero 24" Sq. Heel Proof, Pedestrian Load Only
PRODUCT ID
DIX24-24I99HP
WEIGHT LB(S)
64
OPTIONAL MATERIAL UPGRADES
- Cast Aluminum
- Cast Bronze
FINISH
-Standard Finish : Raw
-Optional Finish : Baked On Oil Finish Powder Coat
MATERIAL
Cast Iron
STANDARD FINISH
Raw
FREE DRAIN AREA
21%
GALLONS PER MINUTE (GPM)
156.24
RECYCLED CONTENT
80%
ADA COMPLIANT
Yes
DIMENSIONS
23.81" x 23.81" x 1"
