LINEAR FLOW WOOD CLADDING
LINEAR FLOW WOOD CLADDING
The simple and elegant combination of wood and felt, with the performance needs for public environments.
Ribs with real wood veneer selected from the finest materials, are jointed together with a visible felt backing.
Create with innovation and realize your vision with a wide range of veneer, finish, perforation and installation options.
INFORMATION
BRAND
Carvart
PRODUCT TYPE
Wood Cladding
SIZES
- Width : 600 mm
- Length : 2400 mm
- Height : 22 mm
SOUND ABSORPTION CLASS
D for direct installation, A with additional 45 mm insulation (mineral Wool 30 kg/m³)
DETAIL
Linear Flow GUSTAFS is the simplest way to combine veneer faces, acoustic performance and ease of installation with a curated offering of wood veneers and wool colors.
SURFACE TREATMENT
7 Uw
SPACING
13 mm (both for Linear and Barcode)
WEIGHT
14.2 kg / panel
INSTALLATION
15 Black screws per panel, semi hidden between the ribs
JOINTS
Hidden fabricated joints
CURVED INSTALLATION
Yes, down to convex radius 1000 mm
EQUIPMENT NEEDED
-Saw
- Screws
- Level
- Screwdriver
- Tape Measure
- Carpet Knife
- Circular Saw or Foxtail
RIB DIMENSIONS BARCODE
13x18 mm and 13x33 mm (TxW), repeat pattern 33-33-18-33-18 mm
AIR QUALITY EMISSIONS
Formaldehyde class E1
GREEN
1.7 Uw
FEATURES AND BENEFITS
With 100% of the electricity coming from renewable sources such as hydroelectric, wind power and solar energy, the GUSTAFs collection delivers products produced from a climate neutral process.
DOWNLOAD
↓ Specification Sheet
RIB DIMENSIONS LINEAR
13x27 mm (TxW)
MATERIAL
The acoustic felt contains a minimum of 50% Post-Consumer recycled material and the ribs are made of 94% recycled material, including 17% Post-Consumer recycled material.
ACOUSTIC OPTIONS

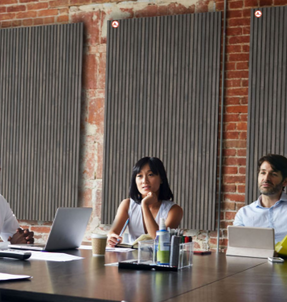

The woodcladding > linear flow panels are easily installed directly on an existing wall or ceiling.
-Standard : For acoustic classification D (absorbing), install directly on the wall or surface.
-Extremely high performing : For acoustic classification A (extremely absorbing), place a 1-3/4” 45mm mineral wood behind the panels. Recommended to first mount the 1-3/4” 45mm battens on the wall with a distance of 23-5/8” 600mm center to center.
COLORS
COLORS
-American Oak + Anthracite -American Oak + Wool Grey -Ash + Wool Grey -Birch + Wool Grey -Knotty Oak + Anthracite -Knotty Oak + Wool Grey -Walnut + Anthracite
-Wild Oak Grey + Anthracite -Wild Oak Smoked + Anthracite
