WALLFORMS™ - METAL PANEL WALL SYSTEM
WALLFORMS™ - METAL PANEL WALL SYSTEM
Lightweight, easy to install, accessible so cables can be managed and better acoustics to satisfy concerns about noise and privacy. Wallforms™ opens a new dimension to design innovation
WALLFORMS
ACOUSTICS
NRC ratings of .75 - .95 deliver superior sound absorption
INTEGRATION
Installer-friendly slotted hat channel or “Z” clips for panel attachment
FINISHES
A virtually unlimited spectrum of metal and painted finishes are available to create your space
INFORMATION
BRAND
Usg
PRODUCT TYPE
Metal Panel
LOCATION
Fully accessible system that allows access at every panel location.
STUD
Third party integration of lights (independently attached to studs).
SOUND
Acoustical performance utilizing perforations and sound absorbing materials
LAYOUT
Design flexibility with panel sizes and layout options.
MOUNT
Slotted-hat channel or direct mount options are available.
APPLICATIONS
- Wall Applications
- Sloped Walls
- Curved Walls
- New Construction
- Interior and Exterior Applications
TECHNICAL DRAWING
DURABILITY
Drywall backer necessary below 5 feet to increase durability.
RECYCLED CONTENT DESCRIP
Aluminum: Up to 99% post consumer recycled content
WOOD VENEER
Ask us about the availability of FSC® (FSC-C022109) certified.
LENGTH RANGE
600 mm to 3050 mm (2’ to 10’)
ACCESS WIDTH RANGE
300 mm to 1525 mm (1’ to 5’)
APPROXIMATE WEIGHT
7.5 kg/m2 (1.5 psf) approximate
FIRE CLASS DESCRIPTION
Many of our panels can be used in Class A environments (IBC Chapter 8. Section 803).
CLASSIFICATION
Class A per ASTM E84, Zero Flame Spread, non-combustible aluminum core Fire Classification
ACOUSTICS
Utilizing perforations and sound absorbing materials, we can meet your NRC requirement with Acoustibond and/or Ultrasorb. Fiberglass batts and duct liner are available upon request.
MODIFICATION
Panels are easily modified in the field with standard tools. See our full list of CAD details.
WALLFORMS
Design with sustainability, acoustics, scale and access with aesthetics without compromising design
PERFORATIONS
STANDARD PERFORATIONS
FINISHES
METAL
PAINT
ARBOREAL®
SARANTÉ

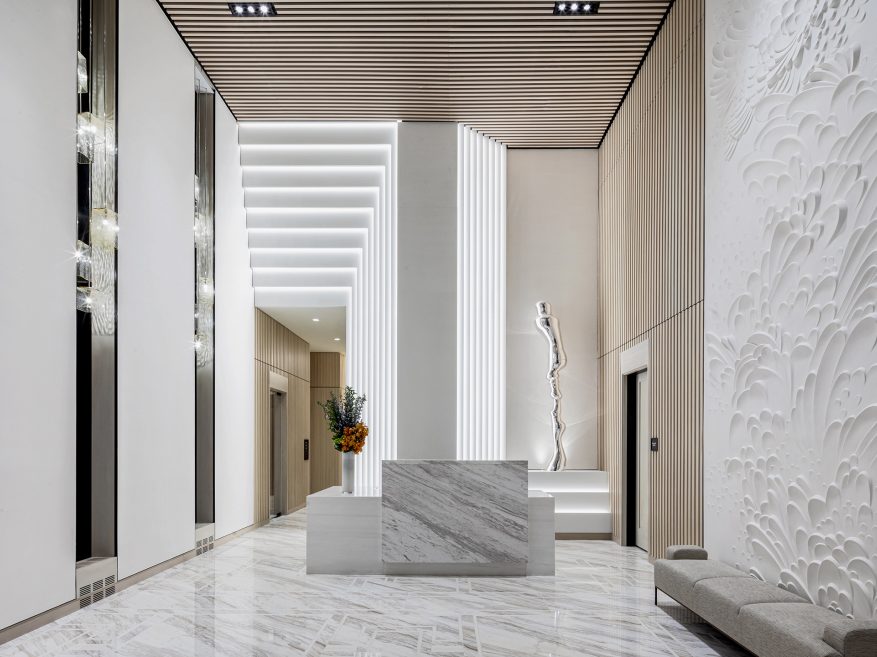

GALLERY
