Jacuzzi Cetra® Drop-in Bathtub

Mon Jan 29, 2024BathtubsConstructionAcrylic

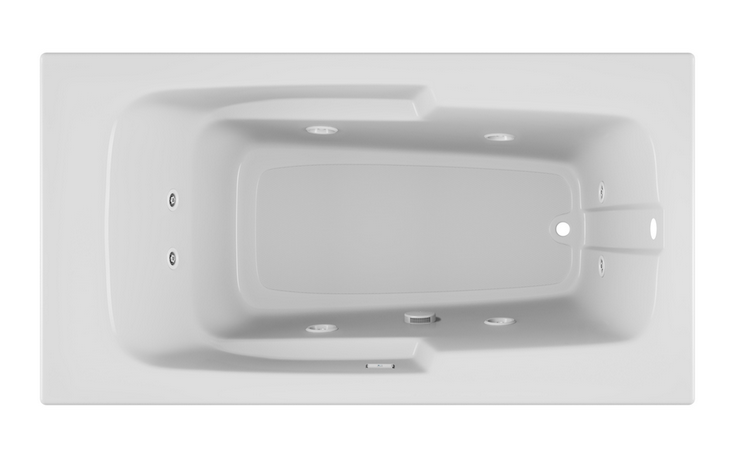

CETRA® DROP-IN BATHTUB

CETRA® DROP-IN BATHTUB

Perfectly Sculpted - The classic CETRA® bath is perfect for any and every bathroom setting.

INFORMATION

BRAND

Jacuzzi

PRODUCT TYPE

Bathtub

COLLECTION

Cetra®

USE

Bathroom

DIMENSIONS

- Height : 21.25 In
- Width : 32.0 In
- Depth : 16.25 In
- Length : 60.0 In
- Soaking Depth : 16.25 In

DETAIL

Like its namesake, the cetra® bath is an undeniable classic. It comes with sculpted armrests and a contoured backrest. The cetra® bath is ideal for both traditional and contemporary settings. Uncomplicated, straightforward, and utterly heavenly.

MATERIAL

Acrylic

SHAPE

Rectangle

CUTOUT

58” x 30”

SKIRT MOUNTING

Optional U-Frame P/N F955

DETAIL

Measurements inside unit represent cutout in floor to allow for drain/overflow.

CIRCUIT

Requires a dedicated GFCI protected separate circuit.

COLORS

FEATURES

-High-gloss acrylic finish for durability and ease of cleaning -Ergonomic design cradles the bather in a comfortable position -The combination of heat and water relaxes muscles and calms the senses -Limited Lifetime Warranty gives you peace of mind -Skirted baths are designed to fit into a cozy space…a private area with walls on three sides -IAPMO/cUPC certified to stringent ANSI standards

MOTOR/PUMP & RAPID HEAT

120 VAC, 15 AMP, 60 Hz.

HEATER (OPTIONAL) MODELS

T720, T725

OPERATING GALLONAGE

- Max. 56 U.S. Gal. (212 Liters)
- Min. 42 U.S. Gal. (159 Liters)

DRAIN ASSEMBLY

No

ADA

No

DRAIN/OVERFLOW

- A : 18-½” (470 mm)
- B : 9” (229 mm)

TECHNICAL DRAWINGS

DOWNLOADS

↓ Cetra® 532 Drop-In Bath Specification
↓ Cetra® 536 Drop-In Bath Specification
↓ Cetra® 6036 Air Bath Bathtub Specification
↓ Cetra® 536 Pur Air II Bath Drop-In Bath Specification

HAND DRAIN LOCATION

Left & Right

CERTIFICATIONS

IAPMO & cUPC

TOTAL WEIGHT

- T730: 663 lb (301 kg) / 50 lb/sq. ft. (244 kg/sq. m)
- T720, T725 : 697 lb (316 kg) / 53 lb/sq. ft. (256 kg/sq. m)

ACCESSORIES / HARDWARE

- TheraPro™ Jet Rings Kit #GU44
- AccuPro™ Jet Rings Kit #GU45 (2 kits required)

TRIM KIT FINISHES AVAILABLE

- Chrome (827)
- Brushed Nickel (826)
- Oil Rubbed Bronze (845)

MEASUREMENT

HOW TO MEASURE FOR A BATHTUB

When it comes to finding the perfect bathtub, the first step is to determine how much space is available to place a new tub. And you will do so by taking 3 measurements: overall width, length, and height.

MEASURING LENGTH

Most bathtubs will sit parallel against the wall, so measuring the length of the wall will help you gauge how long your new tub can be. To measure the overall length of an existing tub, include the lip or shelf of the tub in your measurements.

MEASURING WIDTH

Measure the width of the area by measuring out from the wall to the furthest point you expect your tub to be. This will allow you to fit your bath into the space without gaps or overages, especially in an alcove location.

OTHER THINGS TO CONSIDER

It is also important to keep in mind your bathtubs’ weight and water capacity which is indicated in your new bathtub manual. The basin capacity indicates how many gallons the tub can hold. A US gallon of water weighs 8.34 lbs., so to determine the weight of the water within the tub when full you should multiply the basin capacity by 8.34. Your bathtub manual should also tell you the weight of the bathtub before adding water. Together, the weight of the bathtub and the added weight of the water will determine whether you need to reinforce your floor or not. Also, remember to measure your doorways and hallways to ensure the tub will fit when it’s delivered and installed. You can find all the information needed to plan your bathtub replacement within our specification and manuals.

MEASURING HEIGHT

The height measurement will need to include the total elevation of the bath, including the base or legs if applicable. Measuring the height ensures your new bath won’t conflict with any existing outlets or ledges. Keep in mind that deeper tubs often have taller walls to step over so plan accordingly for safety.

HYDROTHERAPY EXPERIENCES

SOAKING

To sit, stretch, read and relax, a deep bath is a simple and calm pleasure.

HEATED SOAK

The new heated soak experience allows for a longer soak without adding more hot water.

SWIRLPOOL®

The whirlpool effect is inspired by the movement of water from eddies found in rivers and streams.

PURE AIR® BATH

A caressing sensation of hot air inside thousands of bubbles. It is a smooth experience for the whole body, and a pure pleasure.

WHIRLPOOL

he whirlpool tub, powered by the legendary Jacuzzi® jet system, provides bathers with an invigorating and therapeutic massage.

SALON® SPA

A Spa Salon® gives you the best experience of both the Whirlpool bath and the Pure Air®... without limits.
