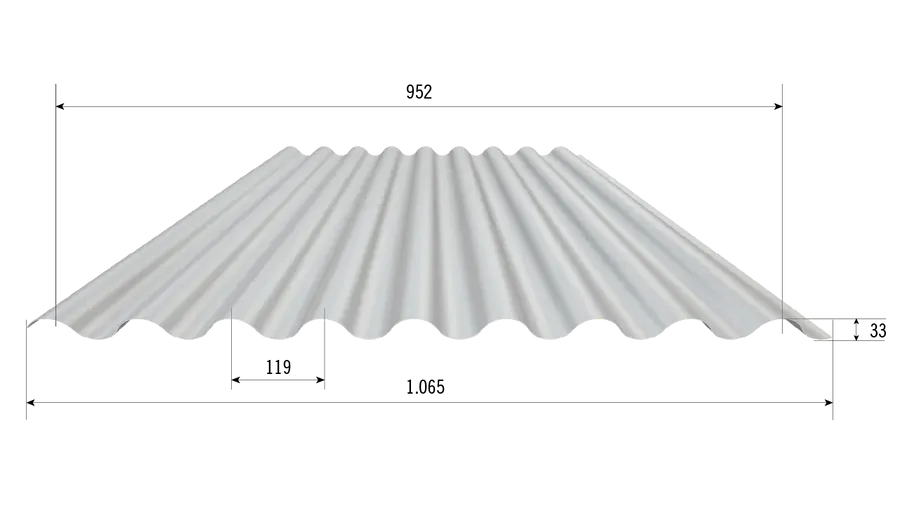

Alubel Ond-all 33 Sinusoidal Sheet For Wall Cladding
OND-ALL 33 SINUSOIDAL SHEET FOR WALL CLADDING
OND-ALL 33 SINUSOIDAL SHEET FOR WALL CLADDING
INFORMATION
BRAND
Alubel
PRODUCT TYPE
Wall Cladding
RECOMMENDED FOR
- Internal Cladding
- External Cladding
STANDARD PRODUCTION
- Aluminium
- Prepainted Steel
- Prepainted Aluminiuml
PRODUCTION
Made In Italy
USE
Construction
SUITABLE FOR
Industrial and civil cladding.
TECHNICAL DRAWING
FRAMING COMPONENTS
Thanks to its wide range of accessories the system reduces considerably assembling work. Dry pose with no type of glue or cement.
INSTALLATION
INSTALATION
PROCESSING
PUNCHING
Standard perforation: Ø 4mm, centre-to-centre 6mm, alternate 60°. Perforation of the laminate before cold forming enables to create darkening elements.
STANDARD NOTCHING(A = min 150 mm - B = min 50 mm or A = min 50 mm - B = min 150 mm)
| RI | ALUMINIUM | OTHER MATERIALS |
|---|---|---|
| 1 m | max 3 m | max 3 m |
| From 2 m - 3 m | max 4m | max 4 m |
| From 3 m - 4 m | max 5 m | max 5 m |
| From 4 m - 6 m | max 6 m | max 6 m |
| From 6 m - 7 m | max 8 m | max 8 m* |
PARTIAL NOTCHING(SYMBOLOGY)
| SYMBOLOGY | DATA | MIN & MAX |
|---|---|---|
| A | Beginning Part | min 50 max 150 mm |
| B | Final Part | min 50 max 150 mm |
| S | Curved Developmen | min 100 mm |
| A+B+S | Total development (aluminium) | max 4000 mm |
| A+B+S | Total development (other materials) | max 3000 m |
| Ri | Inner radius | min 280 mm |
| P | Imprint distance | min 25 mm |
| a | Deflection Angle | min 1° max 4 |
FINISHINGS
PREPAINTED ALUMINIUM & PREPAINTED STEEL
Standard Colours : Simil Ral 9006
OTHER FINISHINGS
-Pvdf Simil Ral 7037 -Pvdf Simil Ral 9006
SMOOTH PAINTING
-Simil Ral 5010 -Simil Ral 9006 -Simil Ral 7016 -Simil Ral 9010 -Simil Ral 9005 -Simil Ral 1002 -Simil Ral 1019 -Simil Ral 2011 -Simil Ral 3000 -Simil Ral 7034 -Simil Ral 7037 -Simil Ral 8029 -Simil Ral 5011 -Simil Ral 6024 -Simil Ral 8017
VIDEOS

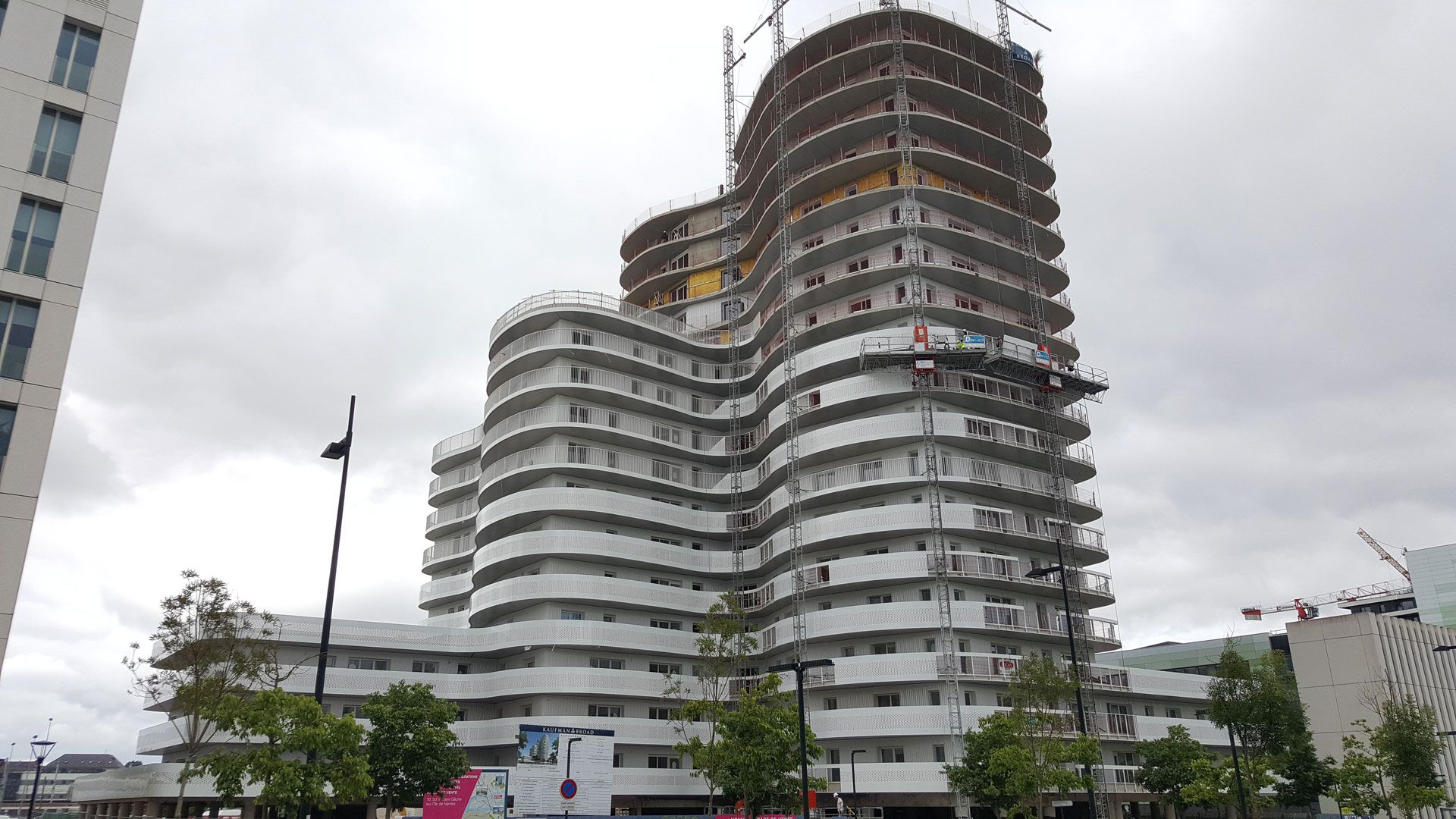

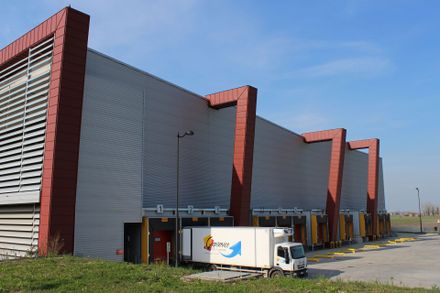

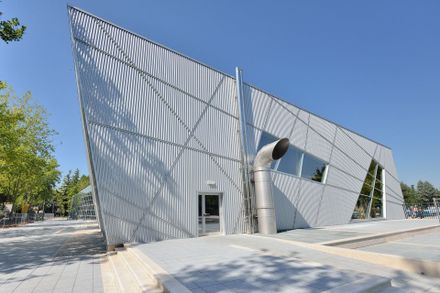

GALLERY
