ARPA 12_2 HORIZONTAL RADIATOR
ARPA 12_2 Horizontal represents the aesthetic evolution of the decorative radiator, thanks to its longitudinal development and the squared profile of the elements.
Every caloric need is met by the modularity and breadth of range. There are 15 proposed widths, from 4 to 60 elements in even number and thermal power from 120 to 3388 Watt.
information
PIPE
23 mm diameter steel round pipes
BRAND
Irsap
WIDTH
520 mm
PRODUCT TYPE
Radiators
HEIGHT
76 mm
MAXIMUM TEMPERATURE
Maximum working temperature 95°c
MAXIMUM PRESSURE
Maximum working presure 8 bar
CERTIFICATIONS
CALCULATE THE POWER
How to choose the Arpa 12 Horizontal radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
RADIATOR
Hydrualic
TEMPERATURE
Low
CONNECTIONS
Connection eft/right with angle valve

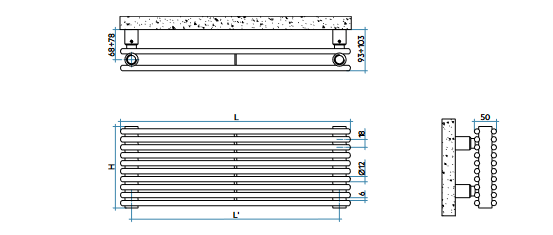

TECHNICAL DRAWING
RADIATOR COLOUR
Standard White
HYDRUALIC
Hydraulic radiator available
HYDRUALIC CONNECTIONS AND VALUES
None
MODELS
MODEL
-Arpa 12 Horizontal -Arpa 12_2 Horizontal -Arpa 18 Horizontal -Arpa 18_2 Horizontal -Arpa 23 Horizontal
-Arpa 23_2 Horizontal
TECHNICAL DATA

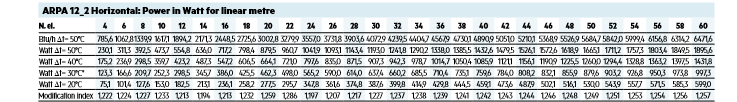

THERMAL OUTPUT PER LINEAR METRE
TECHNICAL INFORMATION

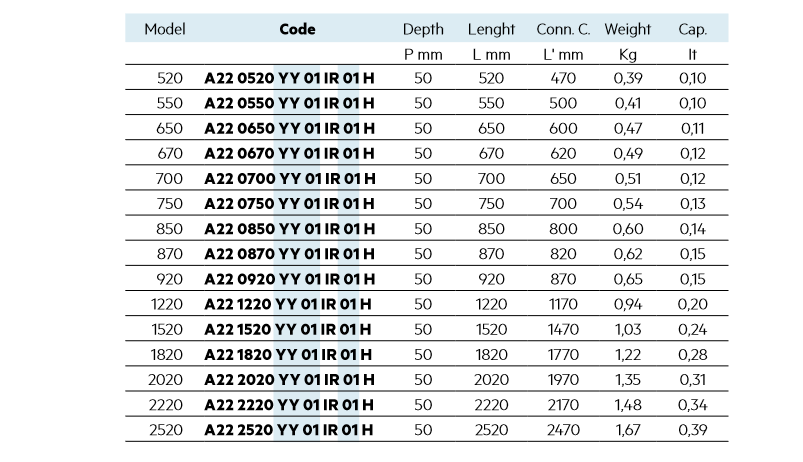

COMPLETE BATTERY DATA
