ARPA 18_2 VERTICAL RADIATOR
ARPA 18_2 VERTICAL RADIATOR
The sober verticality of ARPA 18_2 represents a modern aesthetic that integrates into any environment.
The style of ARPA 18 is completed in modular functionality. Available in 15 heights, from 4 to 60 elements in even number and thermal powers from 124 to 3708 Watt.
information
TUBES
Tubes made of sheet steel with an 18 mm diameter
BRAND
Irsap
HEIGHT
520 mm
PRODUCT TYPE
Radiator
WIDTH
109 mm
RADIATOR
Hydrualic
KIT
Piper Cover Kit
CONNECTIONS
Connection left/right with angle valve
CERTIFICATIONS
RADIATOR COLOUR
Standard White
MATERIAL
Steel
HYDRUALIC CONNECTIONS AND VALUES
None
MAXIMUM TEMPERATURE
Maximum working temperature 95°c
MAXIMUM PRESSURE
Maximum working pressure 10 bar
TEMPERATURE
Low
THERMAL POWER
206 Watt
GAS RIGHT
Manifold threading 1/2” Gas right

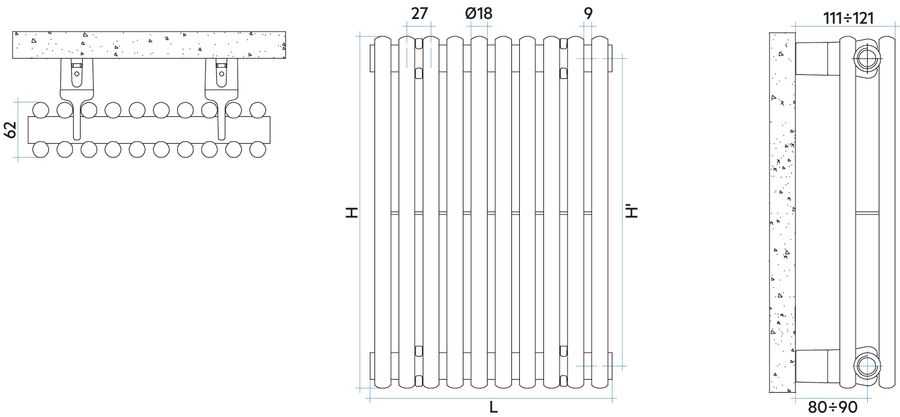

TECHNICAL DRAWING
MANIFOLDS
Manifolds with a 30 mm diameter circular section
AIR VENT
1/2” Air Vent
PLUG
1/2” Blind Plug
WALL FIXING SYSTEM
Wall fixing systems with screws and anchors
CALCULATE THE POWER
How to choose the Arpa 12 Horizontal radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
COLORS
- Quartz 1
- Beige Cream
- Standard White
- Ivory
- RAL 1013
- Manhattan Grey
- Red
- RAL 3000
- Brown
- RAL 8017
- Claret
- RAL 3003
- Orange
- RAL 2004
- Bluish Lilac
- RAL 4005
- Matt Light Grey
- Woodland Green
- RAL 6005
- Green Grass
- RAL 6018
- Melon Yellow
- RAL 1028
- Black
- RAL 9005
- Pearl White
- Edelweiss White
- Sablé
- Quartz 2
- Sunstone
- Tobacco Brown
- Flame Red
- Azurite 3
- Medium Grey
- Titanium Grey Metallic
- RAL 9023
- Pearl Grey
- Graphite Black
- Hammered Grey
- Satin Black
- Matt White
- Matt Black
- Hammered Copper
- Deep Blue
- RAL 5004
- Agave
- North Sea Blue
- Ice
- Matt Blue Dove
- RAL 5014
TECHNICAL DATA
TECHNICAL INFORMATION
| MODEL | DEPTH (MM) | LENGTH (MM) | CONN. CENTRE (MM) | WEIGHT (KG) | CAPACITY (LT) | ΔT=50°C (WATTS) | EXPONENT |
|---|---|---|---|---|---|---|---|
| 520 | 62.0 | 520 | 470 | 0.54 | 0.23 | 31.1 | 1.296 |
| 550 | 62.0 | 550 | 500 | 0.57 | 0.24 | 32.7 | 1.296 |
| 650 | 62.0 | 650 | 600 | 0.66 | 0.28 | 37.9 | 1.298 |
| 670 | 62.0 | 670 | 620 | 0.68 | 0.29 | 38.9 | 1.298 |
| 700 | 62.0 | 700 | 650 | 0.71 | 0.30 | 40.5 | 1.299 |
| 750 | 62.0 | 750 | 700 | 0.75 | 0.32 | 43.0 | 1.300 |
| 850 | 62.0 | 850 | 800 | 0.84 | 0.36 | 48.0 | 1.302 |
| 870 | 62.0 | 870 | 820 | 0.86 | 0.37 | 49.8 | 1.302 |
| 920 | 62.0 | 920 | 870 | 0.91 | 0.39 | 51.5 | 1.303 |
| 1220 | 62.0 | 1220 | 1170 | 1.18 | 0.50 | 65.8 | 1.308 |
| 1520 | 62.0 | 1520 | 1470 | 1.46 | 0.62 | 79.5 | 1.312 |
| 1820 | 62.0 | 1820 | 1770 | 1.73 | 0.74 | 92.7 | 1.319 |
| 2020 | 62.0 | 2020 | 1970 | 1.92 | 0.82 | 101.2 | 1.324 |
| 2220 | 62.0 | 2220 | 2170 | 2.10 | 0.90 | 109.5 | 1.329 |
| 2520 | 62.0 | 2520 | 2470 | 2.37 | 1.01 | 121.6 | 1.336 |
