OPTIMO FORMWORK SYSTEM
OPTIMO FORMWORK SYSTEM
Frame formwork system suitable for any type of construction site. The modularity of the panels ensures the best value for money.
INFORMATION

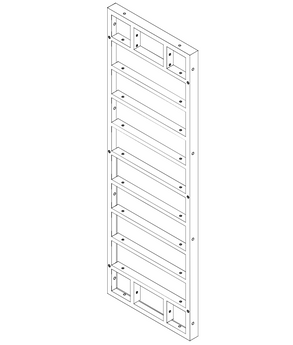

STANDARD PANELS
- Width : 100/75/60/50/40/30/20
- Height : 300/270/150
PRODUCT TYPE
Wall Formwork
FLATNESS TOLERANCE
According to DIN 18202.
TIE RODS
DW15 - n.3 tie rods.
FLATNESS TOLERANCE
According to DIN 18202.
UNIVERSAL COLUMN/PANELS
- Width (cm): 100/75
- Height (cm): 300/270/150/75
PROFILE THICKNESS
- Height= 100mm
- Thickness= 50mm
- Weight= 4.52Kg/m
EXTERNAL STEEL PROFILE
S 355-MC (high yeld strenght steel for cold forming according to EN10149-92).
INTERNAL STEEL PROFILES
S 235-JR
SERVICE BRACKETS
Brackets cm 75 Working load 150Kg/sq.m. for centre distance 1.50m
EXTERNAL STEEL PROFILE
S 355-MC (high yeld strenght steel for cold forming according to EN10149-92).
THE SYSTEM
OPTIMO formworks include in one single system lightness, thanks to the 10 cm frame, durability, thanks to the 18 mm plywood, 60 kN/sqm supported casting pressure and versatility of usage thanks to the wide range of accessories.
PLYWOOD
-Thickness= 18mm – 12,6 Kg/sq.m. -Multilayer Finnish panel with a 220/220 g/sq.m. phenolic coating
LIFTING HOOK
Cod. 19100 Maximum load capacity 1500 Kg.
DOWNLOADS
↓ Data sheet
↓ Catalog
MAXIMUM CASTING PRESSURE: 60KN/M2
Fresh concrete casting pressure according to DIN 18218 complying with the flatness tolerances according to DIN 18202 (table 3 line 7).
FEATURES
-Convenient and handly formwork for residential and commercial construction sites; -Light for easy handling; -Elements can be used both horizontally and vertically with the same accessories; -High frequency of use thanks to the 18 mm thickness plywood; -Maximum concrete pressure equal to 60 kN/sqm; -Easy to use, thanks to panels modularity and to the number of accessories.
CONNECTION CLAMPS (VERTICAL/HORIZONTAL)
Cod. 19330 Fixed Clamp Cod. 19080 Universal Clamp (max 9cm) Cod. 19061 Adjustable Clamp (max 22cm)
