ARPA 23_2 HORIZONTAL RADIATOR
ARPA 23_2 HORIZONTAL RADIATOR
Musical form that combines personality with functionality.
Ideal, therefore, for small and large environments, even with low temperature systems.
ARPA 23_2 Horizontal is available in 14 widths, from 4 to 40 elements and thermal powers from 211 to 3062 Watt.
information
PIPE
23 mm diameter steel round pipes
BRAND
Irsap
WIDTH
520 mm
PRODUCT TYPE
Radiators
HEIGHT
130 mm
RADIATOR
Hydrualic
RADIATOR COLOUR
Standard White
CONNECTIONS
Connection left/right with angle valve
CERTIFICATIONS
MAXIMUM TEMPERATURE
Maximum working temperature 95°c
MAXIMUM PRESSURE
Maximum working pressure 8 bar
GAS RIGHT
Threading at the ends of the manifolds, right G 1/2”
MANIFOLDS
Round section manifold, 30 mm diameter
TECHNICAL DRAWING
TEMPERATURE
Low
HYDRUALIC
Hydraulic radiator available
HYDRUALIC CONNECTIONS AND VALUES
None
CALCULATE THE POWER
How to choose the Arpa 12 Horizontal radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
COLORS
- Quartz 1
- Beige Cream
- Standard White
- Ivory
- RAL 1013
- Manhattan Grey
- Red
- RAL 3000
- Brown
- RAL 8017
- Claret
- RAL 3003
- Orange
- RAL 2004
- Bluish Lilac
- RAL 4005
- Matt Light Grey
- Woodland Green
- RAL 6005
- Green Grass
- RAL 6018
- Melon Yellow
- RAL 1028
- Black
- RAL 9005
- Pearl White
- Edelweiss White
- Sablé
- Quartz 2
- Sunstone
- Tobacco Brown
- Flame Red
- Azurite 3
- Medium Grey
- Titanium Grey Metallic
- RAL 9023
- Pearl Grey
- Graphite Black
- Hammered Grey
- Satin Black
- Matt White
- Matt Black
- Hammered Copper
- Deep Blue
- RAL 5004
- Agave
- North Sea Blue
- Ice
- Matt Blue Dove
- RAL 5014
MODEL
-Arpa 12 Horizontal -Arpa 12_2 Horizontal -Arpa 18 Horizontal -Arpa 18_2 Horizontal -Arpa 23 Horizontal
-Arpa 23_2 Horizontal
TECHNICAL DATA
THERMAL OUTPUT PER LINEAR METRE

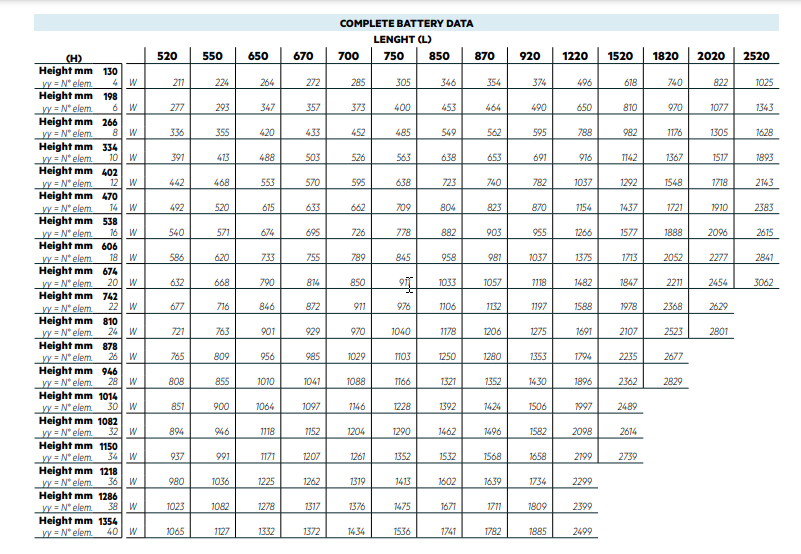

COMPLETE BATTERY DATA
TECHNICAL INFORMATION
| MODEL | DEPTH (MM) | LENGTH (MM) | CONN. CENTRE (MM) | WEIGHT (KG) | CAPACITY (LT) |
|---|---|---|---|---|---|
| 520 | 70.0 | 520 | 470 | 0.80 | 0.36 |
| 550 | 70.0 | 550 | 500 | 0.85 | 0.38 |
| 650 | 70.0 | 650 | 600 | 1.00 | 0.45 |
| 670 | 70.0 | 670 | 620 | 1.03 | 0.46 |
| 700 | 70.0 | 700 | 650 | 1.08 | 0.48 |
| 750 | 70.0 | 750 | 700 | 1.15 | 0.52 |
| 850 | 70.0 | 850 | 800 | 1.31 | 0.59 |
| 870 | 70.0 | 870 | 820 | 1.33 | 0.54 |
| 920 | 70.0 | 920 | 870 | 1.38 | 0.63 |
| 1220 | 70.0 | 1220 | 1170 | 1.81 | 0.82 |
| 1520 | 70.0 | 1520 | 1470 | 2.20 | 1.04 |
| 1820 | 70.0 | 1820 | 1770 | 2.63 | 1.25 |
| 2020 | 70.0 | 2020 | 1970 | 2.89 | 1.34 |
| 2520 | 70.0 | 2520 | 2470 | 3.61 | 1.67 |
