ARPA 12 HORIZONTAL RADIATOR
ARPA 12 HORIZONTAL RADIATOR
ARPA 12 Horizontal represents the aesthetic evolution of the decorative radiator, thanks to its longitudinal development and the squared profile of the elements.
Every caloric need is met by the modularity and breadth of range.
There are 15 proposed widths, from 4 to 60 elements in even number and thermal powers from 115 to 3394 Watt.
information
PRODUCT TYPE
Radiators
BRAND
Irsap
WIDTH
520 mm
HEIGHT
76 mm
RADIATOR
Hydrualic
TEMPERATURE
Low
CONNECTIONS
Connection left/right with angle valve
CERTIFICATIONS
MAXIMUM PRESSURE
Maximum working pressure 10 bar
MAXIMUM TEMPERATURE
Maximum working temperature 95°c
STEEL TOWER
Steel Towel Warmer Radiator With Horizontal Elements Featuring 50x20 Mm Oval Tubes
RADIATOR COLOUR
Standard White
HYDRUALIC CONNECTIONS AND VALUES
None

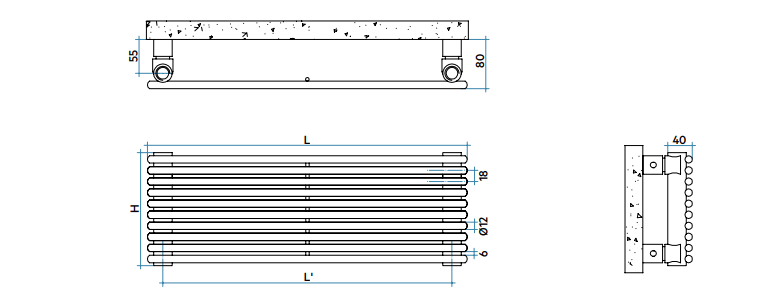

TECHNICAL DRAWING
HYDRUALIC
Hydraulic radiator available
GAS RIGHT
Manifold threading 1/2” gas right
MANIFOLDS
manifolds with a 30 mm diameter circular section
CALCULATE THE POWER
How to choose the Arpa 12 Horizontal radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
COLORS
- Quartz 1
- Beige Cream
- Standard White
- Ivory
- RAL 1013
- Manhattan Grey
- Red
- RAL 3000
- Brown
- RAL 8017
- Claret
- RAL 3003
- Orange
- RAL 2004
- Bluish Lilac
- RAL 4005
- Matt Light Grey
- Woodland Green
- RAL 6005
- Green Grass
- RAL 6018
- Melon Yellow
- RAL 1028
- Black
- RAL 9005
- Pearl White
- Edelweiss White
- Sablé
- Quartz 2
- Sunstone
- Tobacco Brown
- Flame Red
- Azurite 3
- Medium Grey
- Titanium Grey Metallic
- RAL 9023
- Pearl Grey
- Graphite Black
- Hammered Grey
- Satin Black
- Matt White
- Matt Black
- Hammered Copper
- Deep Blue
- RAL 5004
- Agave
- North Sea Blue
- Ice
- Matt Blue Dove
- RAL 5014
MODEL
-Arpa 12 Horizontal -Arpa 12_2 Horizontal -Arpa 18 Horizontal -Arpa 18_2 Horizontal -Arpa 23 Horizontal
-Arpa 23_2 Horizontal
TECHNICAL DATA

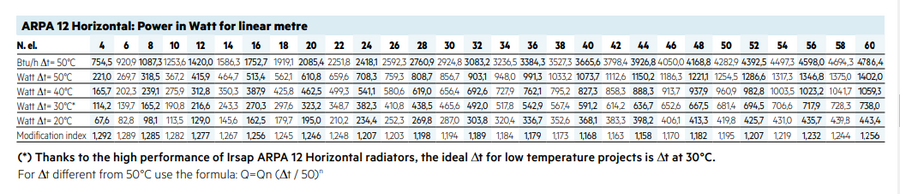

THERMAL OUTPUT PER LINEAR METRE
TECHNICAL INFORMATION
| MODEL | DEPTH (MM) | LENGTH (MM) | CONN. CENTRE (MM) | WEIGHT (KG) | CAPACITY (LT) |
|---|---|---|---|---|---|
| 520 | 40.0 | 520 | 470 | 0.23 | 0.06 |
| 550 | 40.0 | 550 | 500 | 0.24 | 0.06 |
| 650 | 40.0 | 650 | 600 | 0.27 | 0.07 |
| 670 | 40.0 | 670 | 620 | 0.27 | 0.07 |
| 700 | 40.0 | 700 | 650 | 0.28 | 0.07 |
| 750 | 40.0 | 750 | 700 | 0.29 | 0.07 |
| 850 | 40.0 | 850 | 800 | 0.33 | 0.08 |
| 870 | 40.0 | 870 | 820 | 0.34 | 0.08 |
| 920 | 40.0 | 920 | 870 | 0.35 | 0.09 |
| 1220 | 40.0 | 1220 | 1170 | 0.45 | 0.10 |
| 1520 | 40.0 | 1520 | 1470 | 0.54 | 0.13 |
| 1820 | 40.0 | 1820 | 1770 | 0.64 | 0.15 |
| 2020 | 40.0 | 2020 | 1970 | 0.70 | 0.17 |
| 2220 | 40.0 | 2220 | 2170 | 0.77 | 0.18 |
| 2520 | 40.0 | 2520 | 2470 | 0.87 | 0.20 |
