Sandrinimetalli Sanda55 P600 Metal Sheet For Roofing
Sanda55 P600 Metal Sheet For Roofing
SANDA55 P600 METAL SHEET FOR ROOFING
Structural corrugated sheet. Strong and versatile.

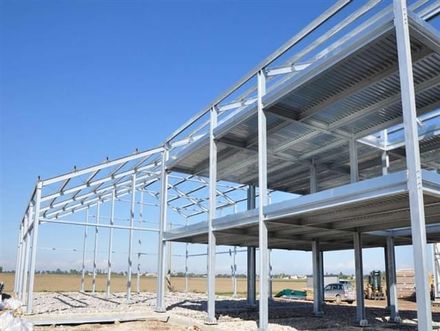

The SAND A55 P600 sheet has a symmetrical geometry, characterised by the strong and marked appearance of the frets, which makes it particularly suitable for use in the facade cladding of commercial and industrial buildings.
It is mainly used as a roofing slab, especially where a high load-bearing capacity is required. SAND A55 P600 can be ordered in the following versions: Positive (use as a dry slab), Negative (use in roofing) and CLS (for collaborating slab).
INFORMATION
BRAND
Sandrini Metalli
PRODUCT TYPE
Roofing
COLLECTION
Sanda55
PRODUCTION
Made in Italy
RADIUS
The possible bending operations are : fixed radius bending, variable radius bending.
TECHNICAL DRAWINGS
FUNCTION
The following applications are available on the internal side: Sandnodrip non-woven fabric with anti-condensation function, or SANDcontrol non-woven fabric with anti-noise and anti-condensation function.
COLOUR
Grey
FIRE RESISTANCE CLASS
A2 - s1, d0
NOMINAL THICKNESS
< 1 mm
MATERIAL
TNT 100% Polyester Fibre
APPLICATIONS
SANDNODRIP - ANTI-CONDENSATION CLOTH
-SANDnodrip is a special non-woven fabric cloth chemically bonding specific elements that create a highly porous surface with excellent moisture absorption properties. -These characteristics prevent the roof from dripping, thanks to polyester fibres and microbeads in the felt that absorb and collect the forming condensation. -SANDnodrip corrugated metal sheets are characterised by a fire resistance class A2-s1, d0.
THE TESTS PERFORMED ON THE PRODUCTS ARE:
↓ Fire resistance test
↓ Rain-induced noise test
TECHNICAL INFORMATION ABOUT SANDNODRIP:
- Colour = Grey
- Material = TTNT 100% polyester fibre
- Nominal thickness = < 1 mm
- Fire resistance class = A2 - s1, d0
SANDCONTROL - ANTI-NOISE AND ANTI-CONDENSATION CLOTH
-SANDcontrol is a special non-woven cloth with increased density, which makes it possible to significantly reduce the noise caused by outdoor weathering. -In addition, it is specially designed to offer excellent performance in absorbing any condensation that may form. -The reduced thickness allows you to carry out interventions, even in case of recovery or renovation, without raising the roof package. -The corrugated sheets with SANDcontrol application are characterised by fire resistance class C-s1, d0.
THE TESTS PERFORMED ON THE PRODUCTS ARE:
↓ Fire resistance test
↓ Rain-induced noise test
TECHNICAL INFORMATION ABOUT SANDNODRIP:
- Colour = Grey
- Material = TNT 100% polyester fiber
- Nominal thickness = 2-3mm/200 g/m2
- Fire resistance class = C - s1, d0
MATERIAL & COLOURS
STANDARD
STONE
LUXURY
NATURIAL
PREMIUM
