Sandrinimetalli Sanda75 P570 Metal Sheet For Roofing
Sanda75 P570 Metal Sheet For Roofing
SANDA75 P570 METAL SHEET FOR ROOFING
For prestigious cladding.

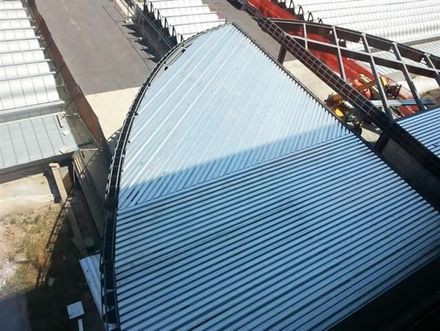

SAND A75 P570 is one of the most traditional and requested profiles in the construction sector. The structural corrugated sheet metal SAND A75 P570 finds application mainly as a flooring, especially when the installing of products with high capacity is necessary.
SAND A75 P570 can be ordered in the following versions: Positive (use as dry floor), Negative (use in coverage) e CLS (for composite floor). The following applications are available on the internal side: non-woven fabric SANDnodrip with anti-condensation function, or SANDcontrol non-woven fabric with anti-noise and anti-condensation function.
INFORMATION
BRAND
Sandrini Metalli
PRODUCT TYPE
Roofing
COLLECTION
Sand18
PRODUCTION
Made in Italy
FACADE
Ventilated and insulated facade
DIRECTION
Vertical or horizontal direction
MATERIAL
TNT 100% Polyester Fibre
NOMINAL THICKNESS
< 1 mm
COLOUR
Grey
FIRE RESISTANCE CLASS
A2 - s1, d0
APPLICATIONS
SANDNODRIP - ANTI-CONDENSATION CLOTH
-SANDnodrip is a special non-woven fabric cloth chemically bonding specific elements that create a highly porous surface with excellent moisture absorption properties. -These characteristics prevent the roof from dripping, thanks to polyester fibres and microbeads in the felt that absorb and collect the forming condensation. -SANDnodrip corrugated metal sheets are characterised by a fire resistance class A2-s1, d0.
TECHNICAL INFORMATION ABOUT SANDNODRIP:
- Colour = Grey
- Material = TTNT 100% polyester fibre
- Nominal thickness = < 1 mm
- Fire resistance class = A2 - s1, d0
THE TESTS PERFORMED ON THE PRODUCTS ARE:
↓ Fire resistance test
↓ Rain-induced noise test
SANDCONTROL - ANTI-NOISE AND ANTI-CONDENSATION CLOTH
-SANDcontrol is a special non-woven cloth with increased density, which makes it possible to significantly reduce the noise caused by outdoor weathering. -In addition, it is specially designed to offer excellent performance in absorbing any condensation that may form. -The reduced thickness allows you to carry out interventions, even in case of recovery or renovation, without raising the roof package. -The corrugated sheets with SANDcontrol application are characterised by fire resistance class C-s1, d0.
TECHNICAL INFORMATION ABOUT SANDNODRIP:
- Colour = Grey
- Material = TNT 100% polyester fiber
- Nominal thickness = 2-3mm/200 g/m2
- Fire resistance class = C - s1, d0
THE TESTS PERFORMED ON THE PRODUCTS ARE:
↓ Fire resistance test
↓ Rain-induced noise test
MATERIALS AND COLOURS
STANDARD
STONE
LUXURY
NATURIAL
PREMIUM
