Kaldewei Conoduo Bathtub
CONODUO BATHTUB
CONODUO BATHTUB
Designed by Sottsass Associati
Enamelled waste cover and overflow knob integrated in the bath design (also available with filling function)
INFORMATION
BRAND
Kaldewei
PRODUCTION
Made in UK
PRODUCT TYPE
Batthtub
COLLECTION
Conoduo
BATHING WITH A FRIEND
Two identical back rests and centrally positioned waste
DETAIL
-Straight-lined, purist design -Classic four-cornered model -Made of kaldewei steel enamel
NET WEIGHT
52 kg
MODEL
732
WATER VOLUME
122 l
EXTERNAL RADIUS
R1 : 23 mm
DEPTH INSIDE
C1 : 420 mm
DEPTH INCL. WASTE HOLE
C2 : 445 mm
HEIGHT OF RIM
C4 : 50 mm
WIDTH OF RIM
E1;E2 : 80; 80 mm
DIMENSIONS
- External Length A1 : 1700 mm
- Internal Length A6 (Top) : 1540 mm
- Internal Length A7 (Bottom) : 1080 mm
- External Width B1 : 750 mm
- Internal Width B6 (Top) : 590 mm
- Internal Length B11 (Bottom) : 470 mm
DISTANCE BETWEEN THE FEET
H4 : 555 mm
DISTANCE FOOT END OF BATH EDGE TO CENTRE OF FOOT
H2 : 590 mm
HEIGHT WITH FEET
C3 : 565 - 600 mm
WIDTH OF FEET MAX.
H6 : 445 mm
FULL ANTI-SLIP
788 x 356 mm
ANTI-SLIP
356 x 356 mm
DOWNLOADS
↓ Technical Sheet
↓ Planning Data
DIAMETER OF OVERFLOW & WASTE HOLE
F8 & F9 : Ø 52 mm & Ø 59 mm
APPLICATIONS
Bathrooms
DESIGNER
Sottsass Associati
DISTANCE TOP EDGE TO CENTRE OF OVERFL OW HOLE
-F 1 : 70 mm -F 2 : 850 mm -F 7 : 285 mm
TECHNICAL DRAWING
THE EXCELLENT BATHTUB

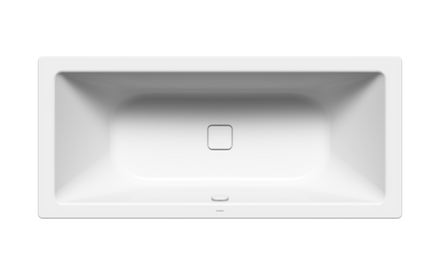

Conoduo combines independent design with excellent bathing comfort for a feeling of calm and clarity. Architectural and geometric elements combine to create a distinctive shape. Other special features are the concealed waste with enamelled cover and an enamelled knob for operating the waste.
DETAIL
STEEL ENAMEL
KALDEWEI steel enamel is extremely resistant, durable and sustainable. Robust steel and fine glass, two authentic, natural materials form an inseparable bond.
DESIGN
An exquisite, sustainable material like kaldewei steel enamel deserves a timeless design. Our bathroom objects will touch and delight you each day. In addition to our own creations, we rely on the expertise of renowned designers.
SUSTAINABILITY
We live and produce sustainability. Steel enamel is made from natural raw materials and is 100 percent recyclable after a long life cycle. That makes kaldewei steel enamel the most sustainable material in your bathroom!
