Isometal E/p 3000 Corrugated Metal Sheets
E/P 3000 CORRUGATED METAL SHEET
E/P 3000 CORRUGATED METAL SHEETS
INFORMATION
EPD CERTIFICATION (CAM)
The entire range of roofing and wall panels in steel and aluminium in PIR, PUR and mineral wool, single metal sheet panels and corrugated metal sheets in steel and aluminium, possess the EPD type III - EN ISO 14025 certification, meeting the requirements of compliance with the regulation construction DM 23 June 2022, and satisfying the required CAM criteria.
For more information on CAM certification, contact the technical / commercial department.
BRAND
Isometal
PRODUCT TYPE
Corrugated Metal Sheets
PRODUCT CODE
E/P 3000
PRODUCTION
Made in Italy
SHEET TICKNESS
- 1
- 0.6
- 0.7
- 0.8
- 1.2
- 1.5

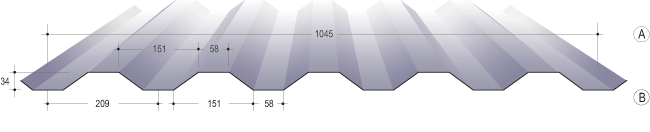

DIMENSIONS
Width : 1045 h mm
MATERIAL
Galvanized steel, coated or laminated; stainless steel, copper:
-Steel in compliance with the uni en 10147 fe e 250 g type, available in hot galvanized with "Sendzimir" process, pre-painted or plasticized galvanized. -Aluminum alloy 3103 H16 conforming to the UNI 9003/3 Standard or according to UNI 10372, available natural or pre-painted. -AISI 304 stainless steel, 2B finish, compliant with UNI 10372 Standards.
corten. -Copper conformity with standards UNI EN 1172 - UNI 10372.
PITCH BETWEEN SUPP
-1.00 -1.25 -1.50 -1.75 -2.00 -2.25 -2.50 -2.75 -3.00 -3.25 -3.50
PROTECTIVE TREATMENTS FOR EXTERNAL SUPPORT AVAILABLE
-Polyester Outdoor Coating -Silicone Polyester -Pvdf -Thermoplastic Class A
INSIGHTS ON THE TEST REPORT
The report test given, is provided for information purposes only. Values and formulas should not be used to determine or calculate the flow rate of the panel. It is the responsibility and care of the customer and/or designer to draft appropriate calculations with specific reference for individual uses.
The thicknesses and quality of steel defined in the report test above, does not represent a standard of product as the combination of thicknesses and materials is determined by the customer according to their technical requirements, therefore the customer and/or the designer are required to specify thickness, quality and type of materials that the producer will use in the construction of the panels.

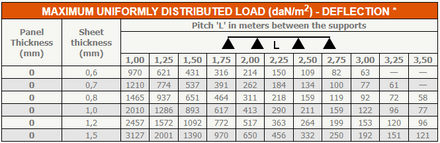

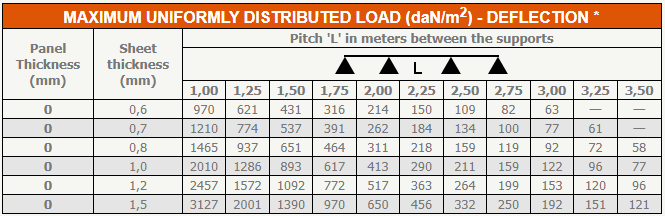

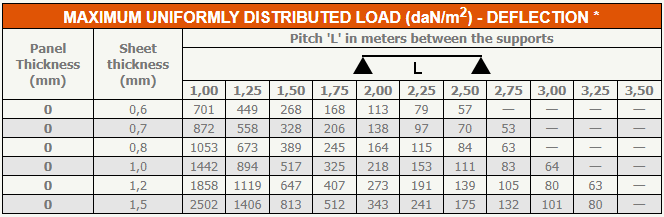

MAXIMUM UNIFORMLY DISTRIBUTED LOAD
