Isolgomma Syl 6ad Insulation Accessories
SYL 6AD INSULATION ACCESSORIES
SYL 6AD INSULATION ACCESSORIES
High stability impact noise acoustic insulation, consisting of rolls composed of sbr rubber granules 6 mm thickness
INFORMATION
LAYING COSTS REDUCTION
The presence of the tear-proof support allows the laying of the screed without the use of other protective layers
FLEXIBILITY
Resistance to loads, high density and mechanical resistance allow to use SYL AD in different acoustic and vibration-damping applications
BRAND
Isolgomma
PRODUCT TYPE
Insulation Accessories
COLLECTION
Syl
PRODUCTION
Made in Italy
DETAIL
-Easy installation -High sound insulation performance in reduced thickness -Long-lasting also in presence of water
DOWNLOADS
↓ Technical data
↓ Cat. Solutions for acoustic insulation timber structures
↓ Cat. Solutions for acoustic insulation in buvilding construction
USE
Floor
DENSITY
780 kg/m³
IMPACT SOUND LEVEL ATTENUATION ΔLW (DB)
17
THICKNESS
6 mm
INSTALLATION
Dry
UNDER APPLICATION
- CLS floor
- CLT floor
- Timber joists floor
TO BE USED WITH
Under screed solutions for commercial use high thickness floors. Wooden floors and decoupling of structures
APPLICATION

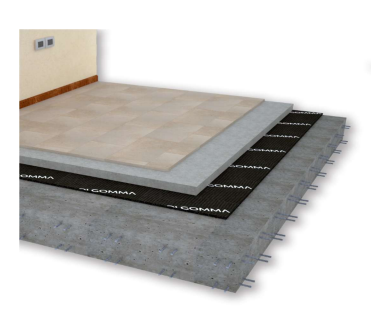

Under screed
GLUE
Polyurethane Glue
INSTALLATION TEST
Acoustic performances of the intervention can be tested on site by a competent technician
LAYING ASSISTANCE
Thanks to our extensive commercial technicians network, we are at your disposal for the coordination of the first laying phases on site
APPLICATIONS
- Wooden floors
- Decoupling of structures
- Commercial use high thickness floors
THERMAL CONDUCTIVITY COEFFICIENT Λ
0.12 W/m K
DIMENSIONS
- Length : 8.0 m
- Width : 1.2 m
DYNAMIC STIFFNESS S' (DB)
77-68 MN/m³
SUPERFICIAL WEIGHT
4.80 kg/m²
ACOUSTIC INSULATION

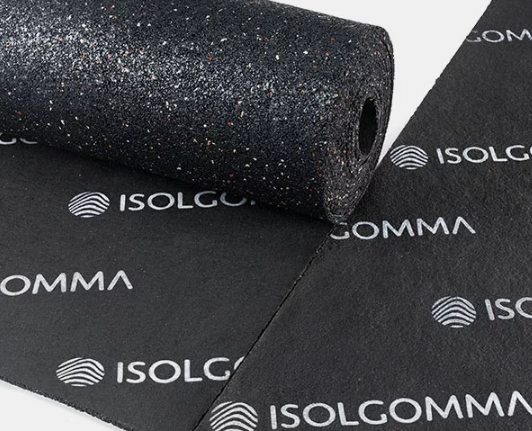

Acoustic insulation supplied in rolls, thickness 6 mm, produced using selected rubber fibers and granules, compacted with a polyurethane glue in a hot process. A non-woven, non-stretch synthetic membrane is applied on one side of panel, for added protection; density 780 kg/m³. Rolls have a length of 8 m and a width of 1,2 m. Impact sound pressure level attenuation 17 dB.
ACOUSTIC REPORT
Our technical staff is able to give you the proper support in all the project phases, supporting you in the identification of materials
ACOUSTIC CERTIFICATES
Product acoustic certificates are available and allow to comply with the limits imposed by law
COMPRESSIBILITY C
0.2-0.4 mm
REACTION TO FIRE
E
CERTIFIED ACOUSTIC IMPROVEMENT
Acoustic performance and mechanical resistance together for excellent performances on both heavy and light structures
