Irsap Piano 2 Vertical
PIANO 2 VERTICAL
PIANO 2 VERTICAL
PIANO represents the evolution of the “radiator” in shape and color. PIANO 2 Vertical is the two-tier version of Piano Vertical, suitable for environments that require a higher caloric yield.
PIANO 2 Vertical is available in 9 heights, from 4 to 30 elements and thermal powers from 201 to 3364 Watt.
INFORMATION
PRODUCTION
Made in Italy
PRODUCT TYPE
Radiator
BRAND
Irsap
USE
Heating
DIMENSIONS
- Height : 520 mm
- Width : 232 mm
FEATURES
- Electric radiator
- Hydraulic radiator
- Eco Design
ELECTRIC POWER
201 Watt
THERMAL
Complete with thermal liquid
MANIFOLDS
Manifolds with a 30 mm diameter circular section
TUBES
Tubes Made Of Sheet Steel With A 50x10 Mm Rectangular Section
CERTIFICATIONS
GAS RIGHT
Manifold threading 1/2” Gas right
PRESSURE
Maximum working pressure 4 bar
INSTALLATION
Horizontal and vertical installation; in horizontal installation the leds must be pointing downward
CLASS
Class II, IP24
FUNCTION
VOC function (air quality control)

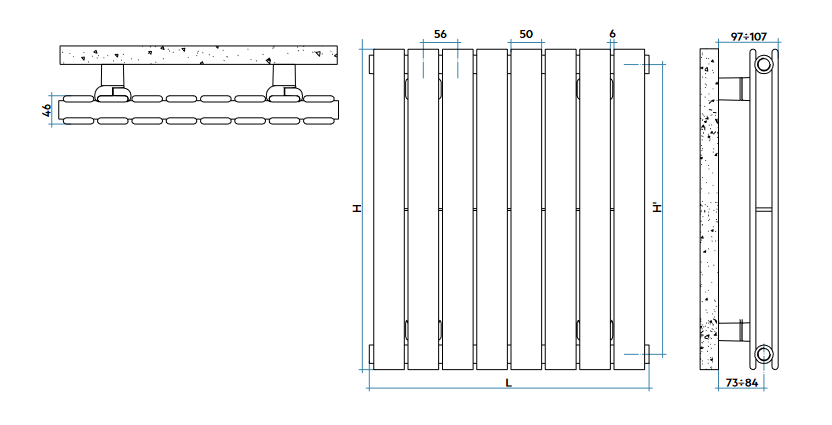

TECHNICAL DRAWING
CALCULATE THE POWER
How to choose the Oasi radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
COLORS
- Quartz 1
- Beige Cream
- Standard White
- Ivory
- RAL 1013
- Manhattan Grey
- Red
- RAL 3000
- Brown
- RAL 8017
- Claret
- RAL 3003
- Orange
- RAL 2004
- Bluish Lilac
- RAL 4005
- Matt Light Grey
- Woodland Green
- RAL 6005
- Green Grass
- RAL 6018
- Melon Yellow
- RAL 1028
- Black
- RAL 9005
- Pearl White
- Edelweiss White
- Sablé
- Quartz 2
- Sunstone
- Tobacco Brown
- Flame Red
- Azurite 3
- Medium Grey
- Titanium Grey Metallic
- RAL 9023
- Pearl Grey
- Graphite Black
- Hammered Grey
- Satin Black
- Matt White
- Matt Black
- Hammered Copper
- Deep Blue
- RAL 5004
- Agave
- North Sea Blue
- Ice
- Matt Blue Dove
- RAL 5014
TECHNICAL DATA
| MODEL | DEPTH (MM) | HEIGHT (MM) | WIDTH (MM) | WEIGHT (KG) | CAPACITY (LT) | WATTS | Exponent |
|---|---|---|---|---|---|---|---|
| 520 | 46,0 | 520 | 470 | 1,16 | 0,43 | 50,2 | 1,296 |
| 700 | 46,0 | 700 | 650 | 1,52 | 0,55 | 65,5 | 1,305 |
| 920 | 46,0 | 920 | 870 | 1,96 | 0,71 | 83,8 | 1,317 |
| 1220 | 46,0 | 1220 | 1170 | 2,61 | 0,91 | 108,1 | 1,316 |
| 1520 | 46,0 | 1520 | 1470 | 3,16 | 1,13 | 132,1 | 1,315 |
| 1820 | 46,0 | 1820 | 1770 | 3,76 | 1,34 | 155,7 | 1,314 |
| 2020 | 46,0 | 2020 | 1970 | 4,16 | 1,48 | 171,3 | 1,319 |
| 2220 | 46,0 | 2220 | 2170 | 4,61 | 1,61 | 186,9 | 1,324 |
| 2520 | 46,0 | 2520 | 2470 | 5,16 | 1,82 | 210,1 | 1,332 |
