Tegola Canadese Liberty Roof Tiles
LIBERTY ROOF TILES
LIBERTY ROOF TILES
Strong aesthetics and high performance make Premium Liberty shingles the ideal solutions for creating roofs that combine refinement and reliability. Not only do they protect your building from adverse weather conditions, but they are design elements that enhance it.
FEATURES
EXCLUSIVE DESIGN
Exclusive DESIGN for any roof and context, thanks to the wide range of models and colors
WATERPROOFING
WATERPROOFING to ensure your roof quality and durability over time
LIGHTNESS
Lightness above your head to guarantee maximum safety, even in the event of a seismic event
RESISTANCE
Resistance to any extreme conditions, to hailstorm, to strong winds
SIMPLICITY
Simplicity they adapt to any shape and slope of the roof, easy to transport and apply… even on the construction site
INFORMATION
IMPORTANT
This product does not contain asbestos and tar
BRAND
Tegola Canadese
PRODUCT TYPE
Roof Tiles
DIMENSIONS
- Length : 1000 mm
- Width : 340 mm
PRODUCTION
Made in Italy
WEIGHT
10.7 kg/m2
REFERENCE STANDARD
EN 544
SET OF THE FLAPS
Self-adhesive Pads
SURFACE COATING
Ceramic-coated basalt grit G-EVO
COLORS
Leather
Slate Grey
Losa
APPLICATION
Application on pitched roofs, with a slope between 5° and 85°. Installation temperature above +5°C. Always check the adhesion of the pads or of the shingle at the end of the installation.
TILES PER PACKAGE
21 (N°)
SURFACE PER PARCEL
3.05 (m2)
FLOW RESISTANCE, AT 90°C
<1 mm
BITUMEN PER SINGLE LAYER
>1300 g/m²
TENSILE STRENGTH MD/CMD
>850 / >510 N/50mm
THICKNESS
3.3 mm
RESISTANCE
Resistance to Tearing (Nail Shank Method) : >120
GRANULES ADHESION
EN 544 : <1 .5 (-g)
PACKAGING WEIGHT
1265 - 1480 Kg
STORAGE
Store pallets in closed warehouses, away from heat sources and direct sunlight. Store in the original packaging. Do not stack pallets.
ADHESION SYSTEM
Lower Self-Adhesive Surface
WATER ABSORPTION
<1 %
BUNDLE
3.05 (m2)
PALLET
158.6 (m2)
SAFETY
The material is free of asbestos, tar compounds and other dangerous substances.
EXTERNAL FIRE RESISTANCE
EN 13501-5 / EN 1187 : Broof (t1)
TYPE
Polyethylene Film
REACTION TO FIRE
EN 13501-1 / prEN ISO 11925-2 : E
OTHER INFORMATION
The characteristics expressed refer to the standard production. Tegola Canadese reserves the right to update the technical data sheets without notice.

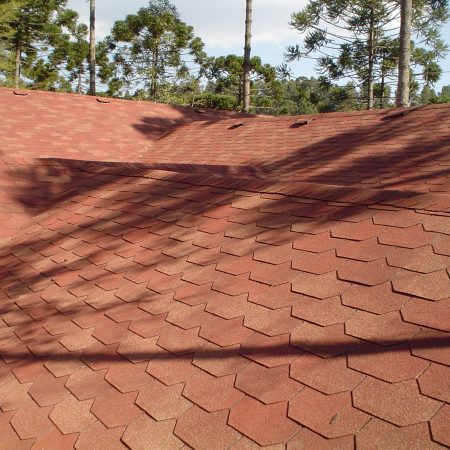

GALLERY
