Sky Tile Pattern Vintage 09
PATTERN VINTAGE 09
PATTERN VINTAGE 09
60x60x1.2 cm rock wool ceiling tiles decorated with UV technology.
It transforms or simply differentiates every room in the office, production area, sales area or home, making it a unique environment.
Modular office ceilings are often anonymous, here is a quick and effective solution to diversify any room.
INFORMATION
BRAND
Sky Tile
CATEGORY
Floral
PRODUCTION
Made In Italy
SKU
CO-210-foglie-bamboo-oro
FIRE RESISTANT SUPPORT
The rock fibre support
is certified REI 120 UNI EN 1365-2 Reaction to fire: Euroclass A1 according to EN 13501-1.
THE DECORATED CEILING
An extraordinarily light and flexible moulded substrate to make every room unique.
SOUNDPROOFING
Sound absorption: αw = 0.90 Class A / NRC = 0.85
MOISTURE RESISTANT
100% humidity resistant stable at any relative air humidity level.
ECOLOGICAL SUPPORT
Mineral wools are recyclable. The recycled content of mineral wool in our panels is 45%
ECOLOGICAL INKS
UL GreenGuard Gold certified inks suitable for use in critical environments such as schools and hospitals.
DETAILS
Sky-Tile is a rock fibre ceiling panel printed according to the customer's taste. Choose one of the standard graphics or send us your file, the end result will amaze you.
MINERVAL® A 12
KEY FEATURES
- Acoustic absorption : αw = 0.90
- Reaction to fire : A1
- 100% flat irrespective of the Relative Humidity
- Reverse side veil
HUMIDITY PERFORMANCE
100% flat irrespective of the Relative Humidity
BFIRE REACTION
According to EN 13501-1: Euroclass A1
DOWNLOAD
↓ Data Sheet
LIGHT REFLECTION
The light reflection coefficient of the veil is superior to 86%.
CLEANING
- The surface of Minerval® A 12 ceilings does not retain dust, which makes them easier to clean. - Minerval® A 12 ceilings can be cleaned using light brush / vacuum cleaner. - This type of cleaning will help extend the service life of Minerval® A 12 ceilings.
COLOR
White
EDGES
A
GRIDS
T15 - T24
CE MARKING
DoP no.: G001.
INDOOR AIR QUALITY
Minerval® A 12 products are classed A+.

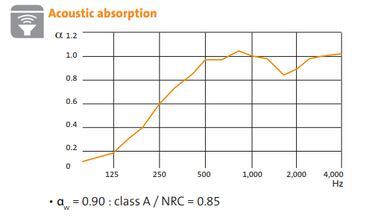

MINERVAL® A 12 - ACOUSTIC ABSORPTION
- Rigid stone wool self-supporting panel.
- Decorative white glass fiber veil.
- Reinforced by a natural glass fiber veil on the reverse side.
- Designed to be installed on T15 - T24 grids.
INSTALLATION
-Installation must conform to the requirements of the DTU 58.1 code of practice, the NF P 68203-1 and 2 standards and other applicable standards and codes of practice according to the type of room. -You are advised to ensure that air can circulate between the rooms and the plenum to balance the temperature and pressures on each side of the ceiling. -Minerval® A 12 ceilings are fitted on T15 - T24 grids. -Tiles can be cut with a craft knife without generating any noise or dust. -The direction in which the panels should be installed is indicated on the back of the panels. - Contact us if any mineral wool is to be laid in the plenum
MODULE SIZE (MM) AND PACKAGING
| DETAILS | SIZE | PACKAGING |
|---|---|---|
| Width | 600 | 600 |
| Length | 600 | 1200 |
| Thickness | 12 | 12 |
| Panels/pack | 40 | 20 |
| M²/pack | 14,40 | 14,40 |
| Packs/pallet | 18 | 18 |
HEALTHCARE
-Eurocoustic stone wool is certified by EUCEB (EUropean CErtification Board for mineral wool product).
-Stone wool panels are manufactured with fibers exempt from the carcinogenic classification (European Regula- tion 1272/2008 as amended by European Regulation 790/2009). According to the International Agency for Research on Cancer, mineral wool is not classifiable as to its carcinogenicity to humans (Group 3)
ENVIRONMENT AND HEALTH
-Environment : Mineral wool is recyclable, and the vast majority of production waste is recycled. The recycled content of the mineral wool of our Minerval® A 12 panels is 45%. For projects based on LEED® , BREEAM® and HQE™ Green Building certifications, EPD (Environmental Product Declarations) are available. Contact us. Eurocoustic is certified to ISO
-Healthcare : Eurocoustic stone wool is certified by EUCEB (EUropean CErtification Board for mineral wool product). Stone wool panels are manufactured with fibers exempt from the carcinogenic classification (European Regulation 1272/2008 as amended by European Regulation 790/2009). According to the International Agency for Research on Cancer, mineral wool is not classifiable as to its carcinogenicity to humans (Group 3).
