ISOPARETE EVO (BOX - PLISSÉ - DOUBLE) WALL PANEL
ISOPARETE EVO (BOX - PLISSÉ - DOUBLE) WALL PANEL
Isoparete EVO polyurethane wall panel, with micro-profiled finishing and hidden fixing.
Isoparete EVO is a sandwich panel covering used for walls of industrial and commercial buildings, characterized by a hidden fixing joint system. You can choose the type of external finishing from 3 different profiles (siehe pictures above from top to bottom: Box, Plissè, Double).
INFORMATION
BRAND
Isopan
PRODUCTION
Made In Germany
PRODUCT TYPE
Wall Pane
COLLECTTION
Isoparete EVO
CERTIFICATIONS
PROFILE
Possibility to choose the profile on the external side
COVERING
Panel with double metal covering
INVIRONMENT
- Industrial
- Commercial Buildings
INSULATION
Polyurethane insulation
JOINT
Joint with hidden fixing
INSTRUCTIONS OF USE
For the use of the panels and the related limits, please consult the Technical Manual available on www.isopan.com, General Sales Terms and Annexes defined by ISOPAN.
DETAILLS

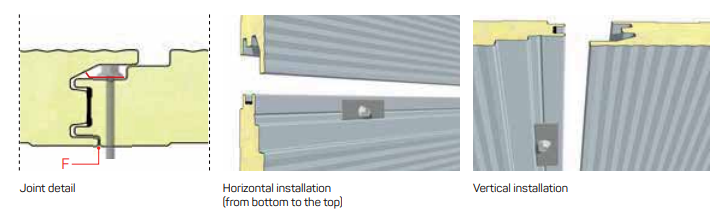

It is a self-supporting metal faced panel insulated with polyurethane foam; the labyrinth configuration and the tongue-and-groove joint with a special place for the screw determine the fully concealed fixing element. The fixing elements are concealed. It is available with different types of profile.
Isopan recommends, during the assembly phase, the use of a specific steel plate to distribute the tightening loads of the screw. The number and the place of the fixing elements must guarantee the stresses resistance, included depression loads.
