Irsap Relax Over Power Towel Holder
Relax Over Power Towel Holder
RELAX OVER POWER TOWEL HOLDER

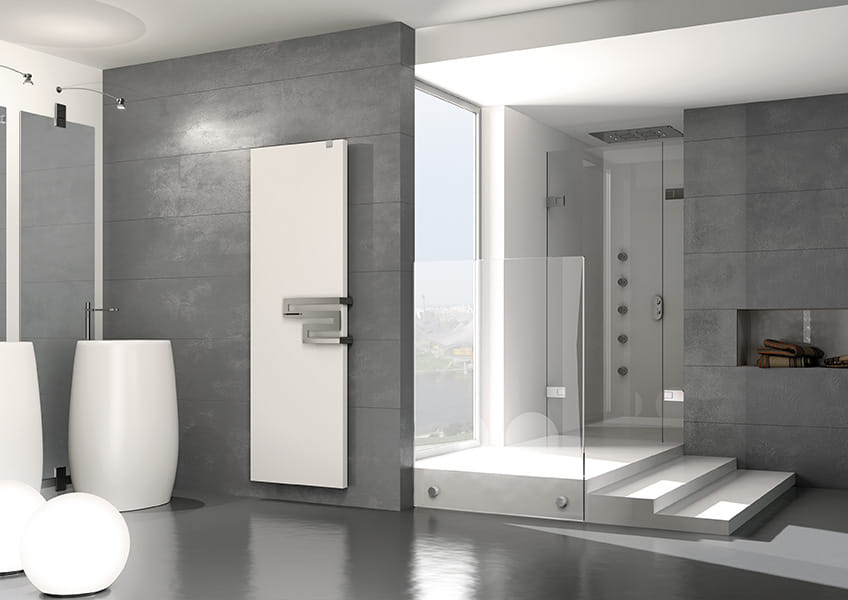

RELAX OVER POWER is the RELAX version for those who need high thermal power.
The towel holder is a design accessory that can be positioned, with the radiator already installed, at the desired height.
The whole RELAX range is supplied with the innovative concealed hydraulic connection system installed directly in the company.
INFORMATION
PRODUCTION
Made in Italy
PRODUCT TYPE
Towel Holder
BRAND
Irsap
WATT
682
DIMENSIONS
688 x 653 mm
FEATURES
- Valves included
- Hydraulic radiator
- Low temperature
MODEL
Relax Power
RELAX TOWEL-HOLDER
None
THREAD PITCH
50 Mm, M24x19
PRESSURE
Maximum Working Pressure 10 Bar
CERTIFICATIONS
TEMPERATURE
95°C
RELAX TOWEL-HOLDER
None
STANDARD EQUIPMENT
-water connection system complete with fittings for connection to copper pipes (12, 14 and 15 mm diameter) and multilayer pipes (14 x 2 thick and 16 x 2 thick)-Air vent
TECHNICAL DRAWING
CALCULATE THE POWER
How to choose the Oasi radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
COLORS
- Standard White
- Edelweiss White
- Matt White
- Pearl White
- Ivory - RAL 1013
- Flame Red
- Green Grass - RAL 6018
- Matt Blue Dove - RAL 5014
- Deep Blue - RAL 5004
- Pearl Grey
- Titanium Grey Metallic - RAL 9023
- Matt Black
- Matt Light Grey
- Quartz 1
- Sablé
- Quartz 2
- Sunstone
- Tobacco Brown
- Red - RAL 3000
- Woodland Green - RAL 6005
- Bluish Lilac - RAL 4005
- Manhattan Grey
- Medium Grey
- Black - RAL 9005
- Wall Finished
- Beige Cream
- Melon Yellow - RAL 1028
- Orange - RAL 2004
- Brown - RAL 8017
- Claret - RAL 3003
- Ice
- North Sea Blue
- Azurite 3
- Agave
- Graphite Black
- Satin Black
- Satin
TECHNICAL DATA
| MODEL | DEPTH (MM) | HEIGHT (MM) | WIDTH (MM) | CONN. CENTRE (MM) | WEIGHT (KG) | ELECTRIC POWER (WATT) |
|---|---|---|---|---|---|---|
| 688 x 1061 | 63.5 | 688 | 1061 | 45 / 100 | 27,50 | 7,30 |
| 688 x 1197 | 63.5 | 688 | 1197 | 45 / 100 | 31,00 | 8,30 |
| 688 x 1401 | 63.5 | 688 | 1401 | 45 / 100 | 36,10 | 9,80 |
| 688 x 653t | 63.5 | 688 | 653 | 45 / 100 | 17,30 | 4,40 |
| 688 x 857 | 63.5 | 688 | 857 | 45 / 100 | 22,40 | 5,90 |
| 868 x 1061 | 63.5 | 868 | 1061 | 45 / 100 | 35,10 | 9,40 |
| 868 x 1197 | 63.5 | 868 | 1197 | 45 / 100 | 39,50 | 10,70 |
| 868 x 1401 | 63.5 | 868 | 1401 | 45 / 100 | 46,00 | 12,60 |
| 868 x 653 | 63.5 | 868 | 653 | 45 / 100 | 22,00 | 5,70 |
| 868 x 857 | 63.5 | 868 | 857 | 45 / 100 | 28,60 | 7,50 |
| 1663 x 381 | 63.5 | 1663 | 381 | 45 / 100 | 34,30 | 6,40 |
| 1663 x 653 | 63.5 | 1663 | 653 | 45 / 100 | 43,10 | 8,90 |
| 1963 x 381 | 63.5 | 1663 | 1663 | 45 / 100 | 30,01 | 11,40 |
| 1963 x 517 | 63.5 | 1663 | 517 | 45 / 100 | 381 | 10,50 |
