Isolgomma Upgrei Accessories
UPGREI ACCESSORIES
UPGREI ACCESSORIES
High performance impact noise acoustic insulation made in rolls with epdm rubber granules glued to a resin polyester fibre layer
INFORMATION
BRAND
Isolgomma
COLLECTION
Upgrei
PRODUCT TYPE
Insulation Accessories
USE
Floor
FEATURES
-Very high acoustic and thermal performance -Extremely easy to lay -Resistant to dampness
FLEXIBILITY
One of the typical problematic situations about renovations consists of rough surfaces. UPGREI adapts to the most critical situations ensuring design comfort
APPLICATION
Under screed
TYPE
Impact insulation
IMPACT SOUND LEVEL ATTENUATION ΔLW (DB)
26
THICKNESS
10 mm
INSTALLATION
Dry
UNDER APPLICATION
- CLS floor
- CLT floor
- Timber joists floor
LAYING COSTS REDUCTION
Equipped with printed support to facilitate the activities cutting. A special adhesive stik facilitates the joint between the mats reducing installation times
APPLICATIONS
-Traditional or light floors -Extra-thick screeds -Floors requiring high acoustic performance
MASS PER UNIT AREA
2,65 kg/m²
RECYCLED CONTENT
80%
DYNAMIC STIFFNESS S' (DB)
6
SUPERFICIAL WEIGHT
2,65 kg/m²
WIDTH (INCLUDING 4 CM OVERLAPPING BAND)
1,04 mThermal conductivity coefficient λ
LENGTH
5,00 m
REACTION TO FIRE
E
THERMAL CONDUCTIVITY COEFFICIENT Λ
0,043 W/m K
TO BE USED WITH
Under screed solution for traditional or light floors where a high impact sound insulation performance is required. Also suitable when floor heating systems are present
COMPRESSIBILITY C
2,2 mm
LAYER
Polyester Fibre Layer
DETAILS

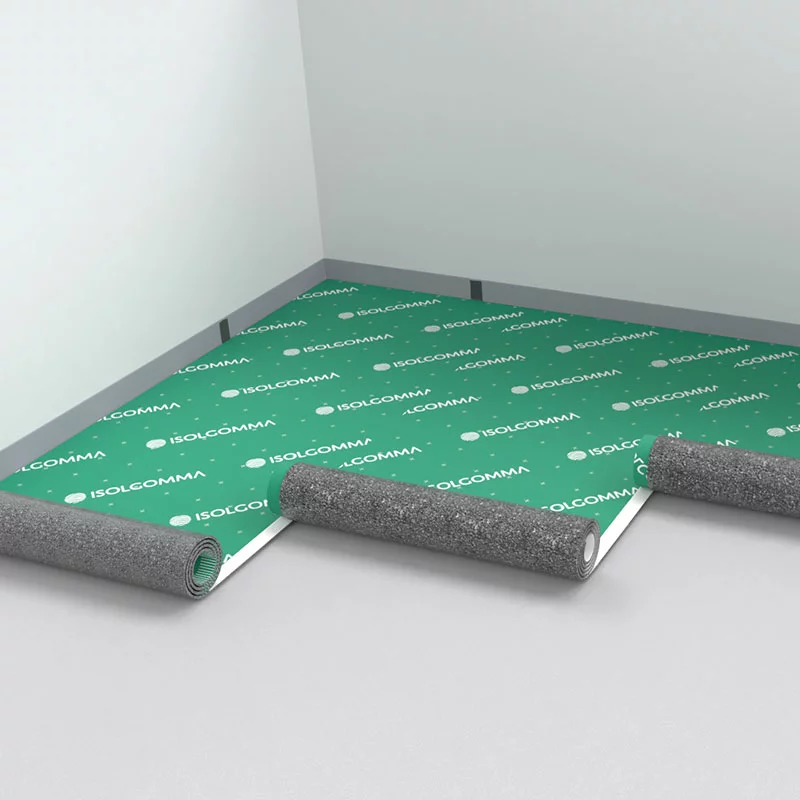

10 mm-thick acoustic insulation rolls, made of EPDM rubber granules that are anchored with carboxylate latex binder to a backing, made with non-woven, greencoloured, anti-stretch film and polyester fibre. The dimensions of the roll are: 5,0 m lenght, 1,04 m width including 40 mm adhesive side border for rolls overlapping during installation. The total mass surface is 2,65 kg/m². Dynamic stiffness s‘ 6 and impact sound pressure level attenuation 26 dB. Reaction to fire E class, thermal conductivity coefficient 0,043 W/m K. Recycled content 80%.
