SOUL_S AIR MIX RADIATOR
SOUL_S AIR MIX RADIATOR

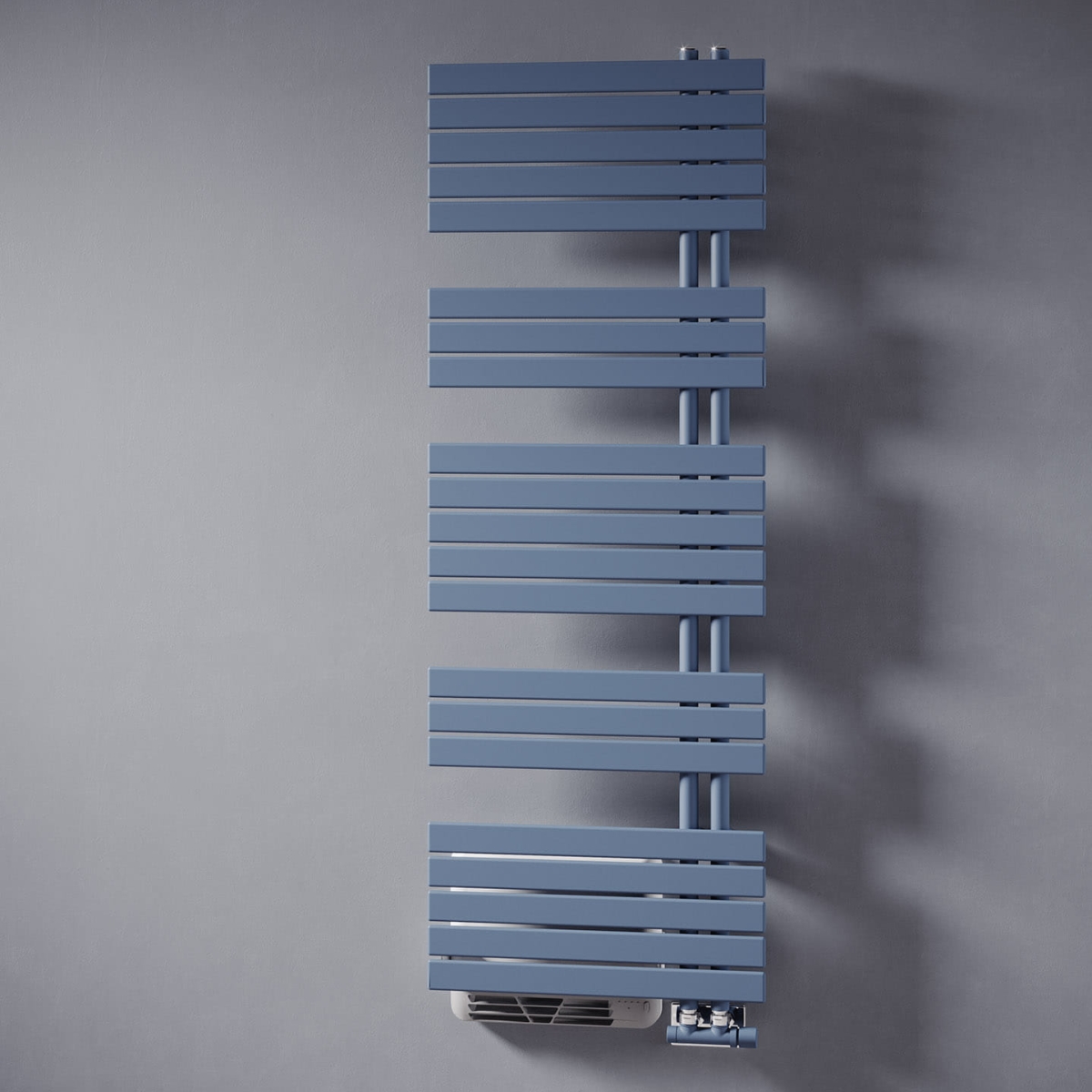

Light, minimal and essential, SOUL_S AIR MIX reinterprets any environment. Its linear perspectives are the expression of the evolution, fascinating encounter between a round collector and a flat profile, able to influence and characterize the bathroom’s environment enhancing its personality.
INFORMATION
POWER
Hydraulic radiator equipped with a booster mounted behind the radiator with a power of 1,000 watts
MATERIAL
Steel Towel Warmer Radiator
PRODUCT TYPE
Radiator
BRAND
Irsap
PRODUCTION
Made in Italy
TEMPERATURE
Maximum working temperature 95°c
INSTALLATION
Not suitable for installation with a single-pipe system
PRESSURE
Maximum working pressure 4 bar
CERTIFICATIONS
DIAMETER
Side round manifolds with a 30 mm diameter
FINISHES AVAILABLE
- Standard White
- Classic finished
- Special finished
- Other RAL colors
SECTION TUBES
Horizontal elements featuring rectangular 50x10 mm section tubes
USE
Indoor
THREADING
Manifold threading 1/2” gas right
TECHNICAL SPECIFICATIONS
Wireless communication via radio signals transmitted to the receiver connected to the system.
- You can activate the manual functions
- Approx. 30-50 metre range in residential environments (868 MHz)
- Radiofrequency communication pursuant to European standards
CALCULATE THE POWER
How to choose the Soul_S Air Mix radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
WIRELESS REMOTE CONTROL FOR BOOSTER CONTROL
SOUL_S Air Mix is equipped with a wireless controller that allows remote management of every electric radiator function. Because the controller is wireless, it has the advantage of being quick and easy to install and does not require any modifications within the home.
STANDARD EQUIPMENT
-4 wall fixing in the same color as the radiator -2 1/2” hidden airvents complete with valve cover
COLORS
-Quartz 1 -Beige Cream -Standard White -Ivory - RAL 1013 -Manhattan Grey -Red - RAL 3000 -Brown - RAL 8017 -Claret - RAL 3003 -Orange - RAL 2004 -Bluish Lilac - RAL 4005 -Woodland Green - RAL 6005 -Green Grass - RAL 6018 -Melon Yellow - RAL 1028 -Black - RAL 9005 -Pearl White -Edelweiss White -Sablé -Quartz 2 -Sunstone -Tobacco Brown -Flame Red -Azurite 3 -Medium Grey -Titanium Grey Metallic - RAL 9023 -Pearl Grey -Graphite Black -Hammered Grey -Satin Black -Matt White -Matt Black -Hammered Copper -Deep Blue - RAL 5004 -Agave -North Sea Blue -Ice -Matt Blue Dove - RAL 5014 -Matt Light Grey
TECHNICAL DRAWING
CHARACTERISTICS
- ON/OFF switch
- Insulation: CLASSE II
- Protection index : IP24
- Power installed = 1000 W
- Power supply 230 V 50 Hz, 1 ph
- Electronic ambient thermostat
- Long electricity cable : 1.200 mm, schuko plug
TECHNICAL DATA
Thanks to the high performance of Irsap SOUL_S AIR MIX radiators, the ideal Δt for low temperature projects is Δt at 30°C. For Δt different from 50°C use the formula Q=Qn (Δt / 50)n.
| MODEL | DEPTH (MM) | HEIGHT (MM) | WIDTH (MM) | CONN. CENTRE (MM) | WEIGHT (KG) | CAPACITY (LT) | ΔT=50°C (BTU/H) | EXPONENT | Electric Power with Booster (Watt) |
|---|---|---|---|---|---|---|---|---|---|
| 1176 16 rails 3 espaces | 110,0 | 1216 | 550 | 50 | 13,93 | 4,10 | 505,0 | 1,286 | 1000 |
| 1540 21 rails 4 espaces | 110,0 | 1580 | 550 | 50 | 17,48 | 5,33 | 655,0 | 1,295 | 1000 |
| 1848 28 rails 3 espaces | 110,0 | 1888 | 550 | 50 | 21,90 | 7,27 | 825,0 | 1,310 | 1000 |
FEATURES
- New products-Low temperature -Electric radiator with booster available -Hydraulic radiator available -Electric radiator available -Electric radiator with booster available
