INTERLOCKING PANEL
INTERLOCKING PANEL
The Interlocking panel system is designed for any facade to be cladded with a rainscreen system, for both new and refurbishment projects.
It involves installing interlocking panels on metal or wood framework fixed to the supporting structure (masonry or metal structure).
INFORMATION
BRAND
Vmzinc
PRODUCT TYPE
Panel
COLLECTION
Interlocking
THICKNESS
1 mm
PANEL

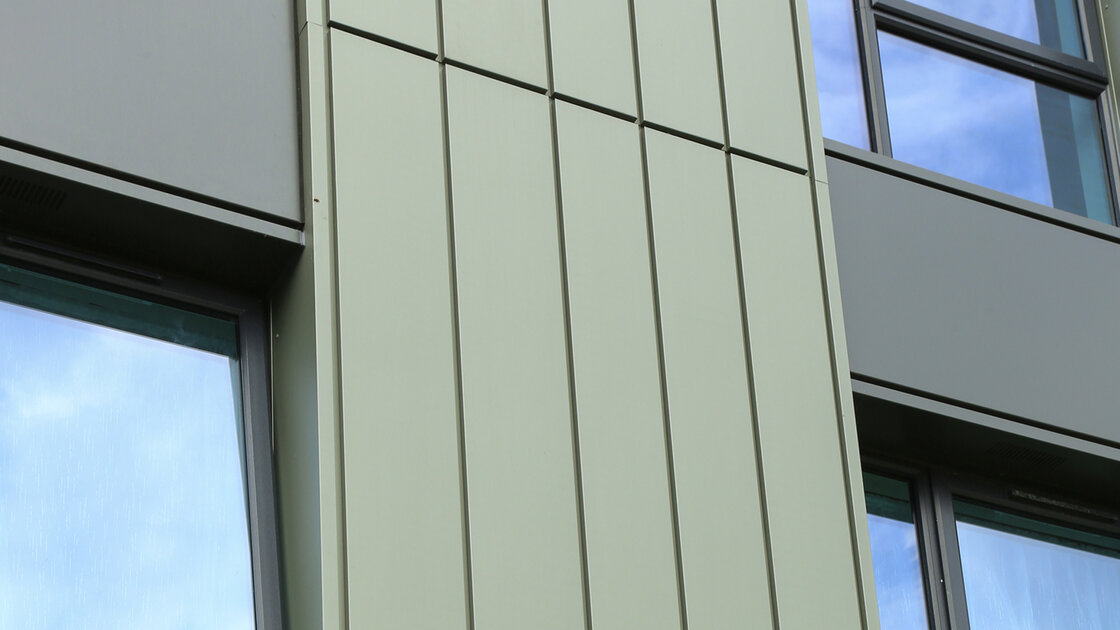

The metal facade panels are simply connected by the use of an interlocking groove giving the elegant appearance of a recessed joint.
DOWNLOAD
ā General advantages of Zinc
JOINT WIDTH
10 or 20 mm
LENGTH
From 500 mm to 6000 mm
AREAS OF APPLICATION
Suitable for both renovation projects and new buildings. All types of buildings : commercial, public buildings, collective and individual housing.
INSTALLATION
The panels can be laid vertically or horizontally. The choice of direction implies different aesthetics and technical solutions for the main flashings. A range of standard accessories has been designed for the main flashings:
- Window lintels
- Top and bottom pieces
- External and interior corners
CENTRE TO CENTRE DISTANCE
200 mm - 250 mm - 300 mm
WEIGHT
11.18 - 10.40 - 9.85 (kg/m2) excluding framework
ADVANTAGES
-Interlocking attachment with concealed fastening -Range of components offering a wide variety of all flashing details -Vertical or horizontal installation
FINISHES
ALL FINISHES
-Anthra Zinc -Azengar -Pigmento Blue -Pigmento Brown -Pigmento Green -Pigmento Red -Quartz Zinc
