Isolgomma Biwall 30 Insulation Accessories
Biwall 30 Insulation Accessories
BIWALL 30 INSULATION ACCESSORIES
- Extremely easy application
- High acoustic and thermal insulation value s
- High resistance to dampness and condensate build-up

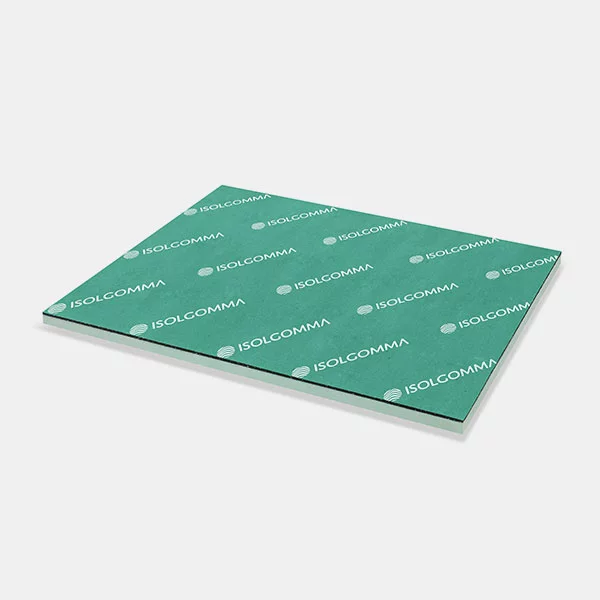

Airborne noise insulation in 30 mm thick pre-assembled panels made of a panel 10 mm thickness SBR (Stirene Butadiene Rubber) rubber granules and EPDM (Ethylene Propylene Diene Monomer) rubber granules anchored to a non-woven anti-stretch synthetic backing and hot pressed with polyurethane binder, density of 800 kg/m³; a 20 cm thick polyesther fibre panel with density 30 kg/m³. The panels dimensions are 1.20 m length and 1 m width.
INFORMATION
USE
Wall
BRAND
Isolgomma
PRODUCT TYPE
Insulation Accessories
THICKNESS
30mm
COLLECTION
Biwall
DETAIL
Airborne noise thermal acoustic insulation consisting of a polyester fibre panel and a sbr and epdm rubber granules panel 30 mm thickness
TYPE
Wall
INSTALLATION
- Dry
- Glue
DIMENSIONS
- Width : 1.1.20 m
- Length : 1.00m
UNDER APPLICATION

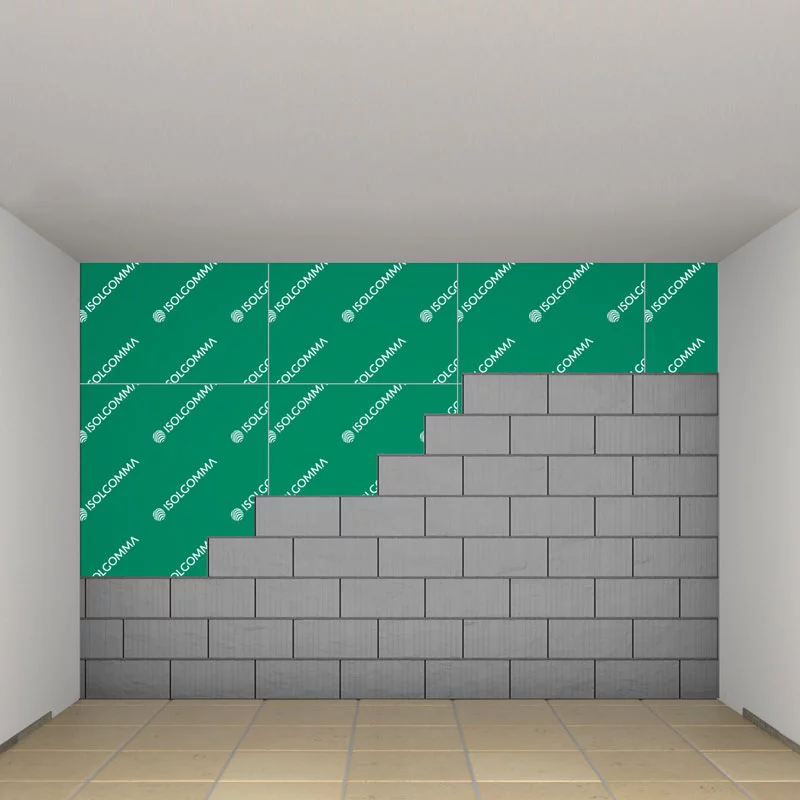

- Brick cavity walls
- Double wall
SUPERFICIAL WEIGHT
8.60 (kg/m²)
WALL ACOUSTIC PERFORMANCE
≥ 55 Rw (dB)
