ALUCOBOND® PLUS ALUMINIUM COMPOSITE PANEL

ALUCOBOND® PLUS ALUMINIUM COMPOSITE PANEL

Alucobond® plus is a composite panel consisting of two aluminium cover sheets and a mineral-filled polymer core.

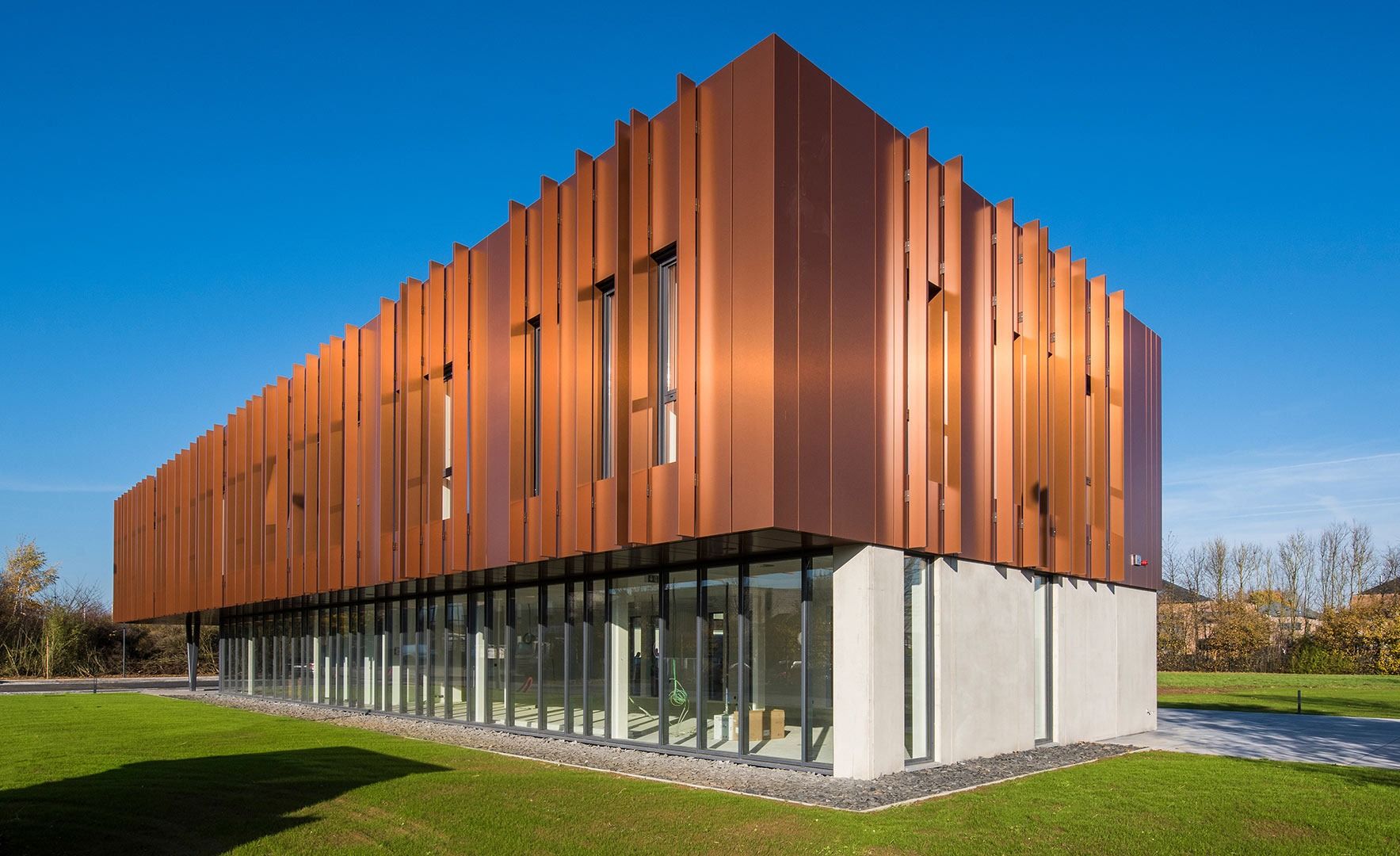

The superb properties of this material boost one’s inspiration and offer architecture a whole new range of solutions – whether your project is a private home, a public building, a corporate headquarter and offices, or a trading or industrial complex – or if your organisation wants to create a new image-building Corporate Design – whether for petrol stations, car showrooms, banks or supermarkets.

INFORMATION

BRAND

Alucobond

PRODUCT TYPE

Composite Panel

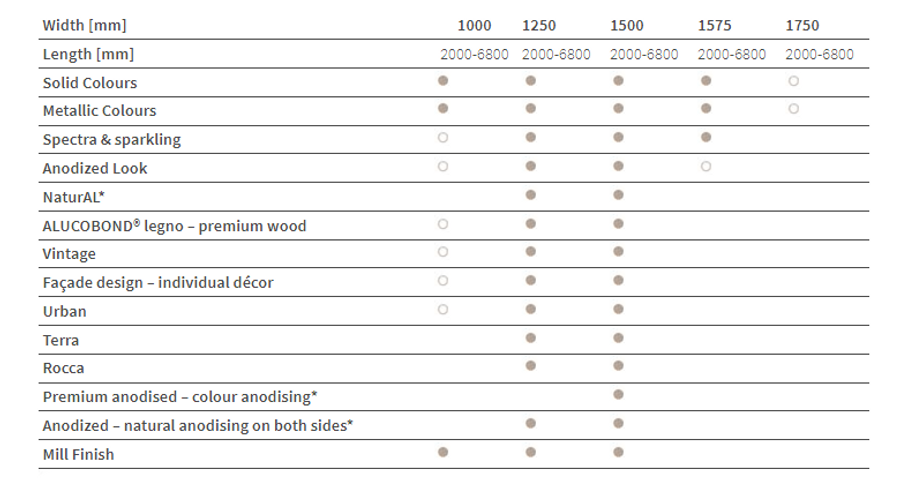

COLOURS AND SURFACES

More colours and surfaces are available .

CORE

Composite panel consisting of two aluminium cover sheets and a mineral-filled polymer core.

DOWNLOADS

↓ Alucobond® Processing
↓ Alucobond® façade fascination
↓ Alucobond® Design & Detail Compendium

PRODUCT PROPERTIES

WIND LOAD AND PERMISSIBLE PANEL SIZES

In Germany, the dimensioning of ALUCOBOND® façade systems is regulated by the general building inspectorate approval (abZ) No. Z-10.3-774. In the Technical Extras section, you can find this and other documents, including load tables, dimensioning aids and various design examples.

MATERIAL

Aluminium

PRODUCTION

Made in Germany

EXCEPTION

Alucobond® natural reflect is only available in alucobond® plus in width 1250 mm.

DIMENSIONAL TOLERANCES (STANDARD)

Due to manufacturing, a displacement of the cover sheets sidewise at the panel edges up to 2 mm is possible.

- Thickness : ± 0,2 mm
- Width : - 0 / + 4 mm
- Lengths : 2000 - 4000 mm; - 0 / + 6 mm
- Lengths : 4001 - 6800 mm; - 0 / + 10 mm

ALUCOBOND® PLUS COMPARED WITH SOLID ALUMINIUM

Required thickness and actual weights of panels with same rigidity
