Tegola Canadese Master J Roof Tiles
MASTER J ROOF TILES
MASTER J ROOF TILES
Nature, as a source of inspiration, and industrial research coexist in the Master shingles, which guarantee durable high performance.
Quality materials, combinations of overlapping layers and carefully selected colour shades allow creating roofs with a natural look and perfect waterproofing.
INFORMATION
DESIGN
Exclusive design for any roof and context, thanks to the wide range of models and colors.
WEIGHT
11.70 kg/m2
REFERENCE STANDARD
EN 544
SURFACE COATING
G Ceramic-coated basalt grit G-EVO
IMPORTANT
This product does not contain asbestos and tar
DIMENSIONS
99.8x33.7 cm
TILES PER PACKAGE
14 n°
RESISTANCE
Resistance to any extreme conditions, to hailstorm, to strong winds.
LIGHTNESS
Lightness above your head to guarantee maximum safety, even in the event of a seismic event.
SIMPLICITY
Simplicity they adapt to any shape and slope of the roof, easy to transport and apply… even on the construction site.
DETAIL
Double-layer flexible bituminous shingle, with glass fiber carrier and protected by colored ceramic-coated basalt.
SURFACE PER PARCEL
2.00 m2
SET OF THE FLAPS
Self-adhesive band
APPLICATION
Application on pitched roofs, with a slope between 5° and 85°. Installation temperature above +5°C. Always check the adhesion of the pads or of the shingle at the end of the installation.
STORAGE
Store pallets in closed warehouses, away from heat sources and direct sunlight. Store in the original packaging. Do not stack pallets.
WATERPROOFING
Waterproofing to ensure your roof quality and durability over time.
SAFETY
The material is free of asbestos, tar compounds and other dangerous substances.
AVAILABLE COLORS

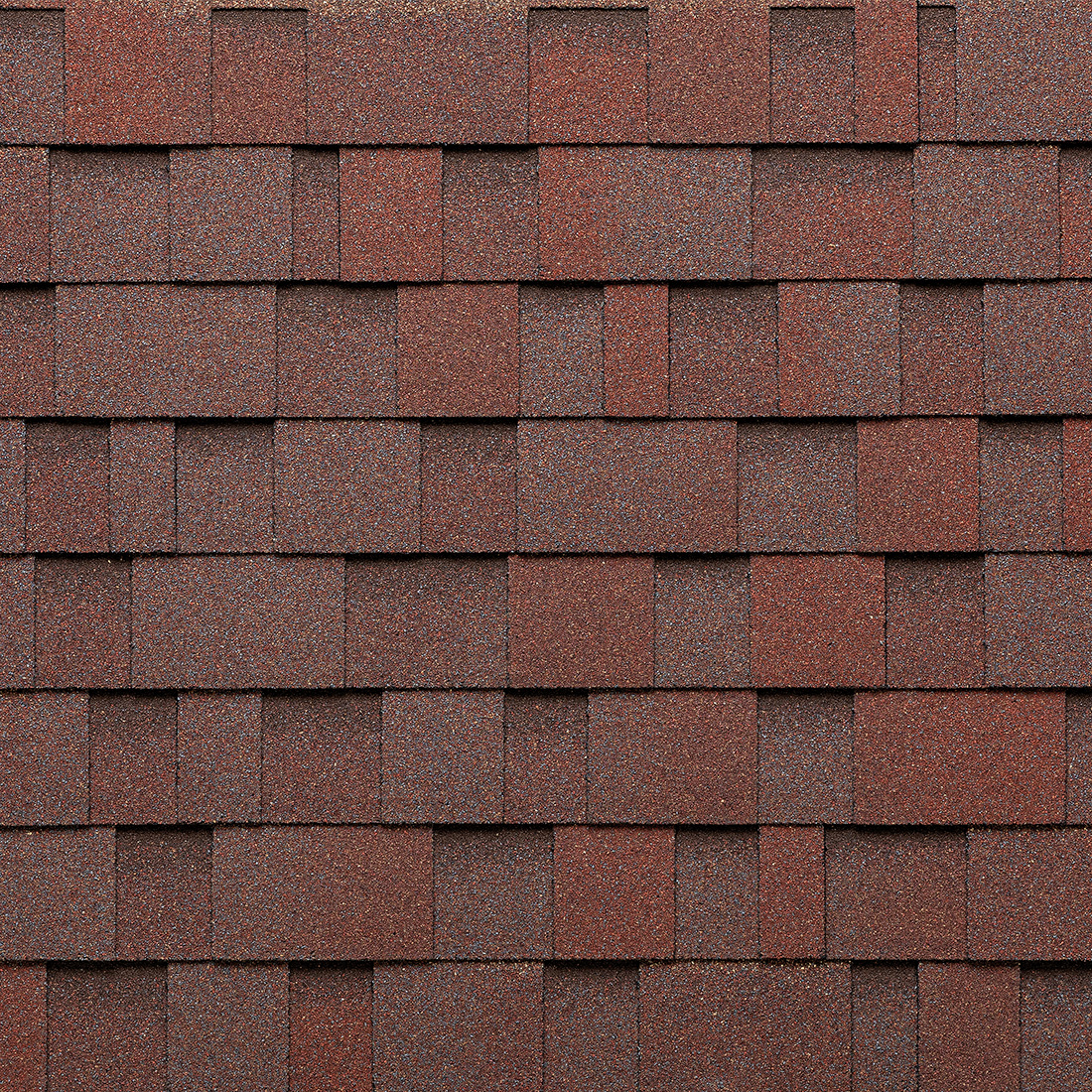

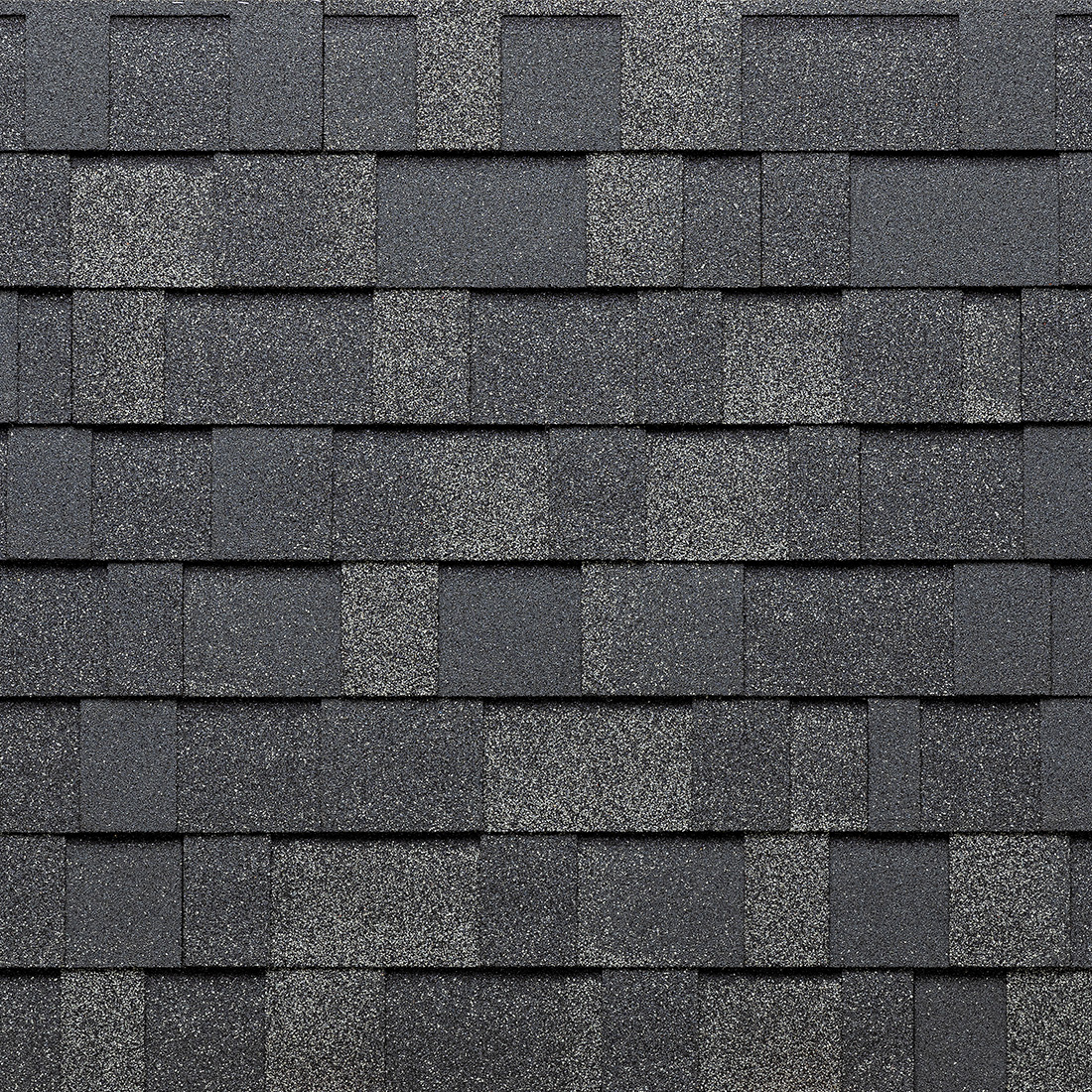

-Master J 505 Terracotta -Master J 519 Red Mapled -Master J 255 Lava -Master J 532 Coffee -Master J 534 Oakwood -Master J 553 Light Slate -Master J 160 Dark Slate -Master J 562 Black -Master J 384 Blue Marine
GENERAL INFORMATION
| CATEGORY | NORM | UNIT OF MEASURE | VALUE | TOLERANCE |
|---|---|---|---|---|
| Bitumen Type / Compound Type | - | - | Oxidized Bitumen | - |
| Length | EN 544 | mm | 998 | ±3 |
| Width | EN 544 | mm | 337 | ±3 |
| Thickness | - | mm | 3.3 / 6.6 | ±10% |
| Exposed Area | - | mm | 143 | - |
| Nailing Axis Position | - | mm | 160 - 180 | - |
| Adhesion System | - | mm | Self-Adhesive Pads | - |
| Weight (Finished Product) | - | kg/m² | 12.3 | ±10% |
| Bitumen per Single Layer | EN 544 | g/m² | >1500 | - |
| Tensile Strength MD/CMD | EN 12311-1 | N/50mm | >800 / >600 | - |
| Resistance to Tearing (Nail Shank Method) | EN 12310-1 | N | >150 | - |
| Water Absorption | EN 544 | % | <1 | - |
| Resistance to UV Radiation | EN 1297 | Visual | Pass | - |
| Resistance to Blistering | EN 544 | Visual | Pass | - |
| Flow Resistance, at 90°C | EN 1110 | mm | <1 | - |
| Granules Adhesion | EN 12039 | -g | <1.5 | - |
| External Fire Resistance | EN 13501-5 / EN 1187 | - | Broof (t1, t2) | - |
| Reaction to Fire | EN 13501-1 / prEN ISO 11925-2 | - | E | - |
| Type | - | - | Polyethylene Film | - |
| Shingles per Bundle | - | - | 14 | - |
| m²/Bundle | - | - | 2.00 | - |
| m²/Pallet | - | - | 136.00 | - |
| Pallet Weight (Standard Packaging) | - | - | 1520 - 1830 | - |
