VELA RADIATORS
VELA RADIATORS

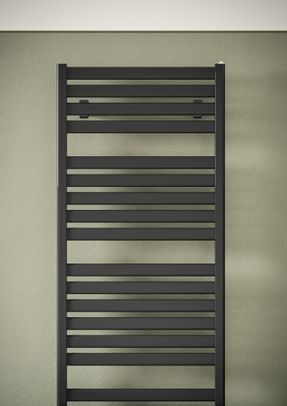

VELA is characterized by the flat profile of the horizontal tubes; the space intersects with its geometry in evidence.
Functional object for any living environment. VELA is available in 4 heights and 4 widths.
With the insertion of the electric resistance (optional) it can work even in periods when the system is off.
information
STEEL TOWER
Steel Towel Warmer Radiator With Horizontal Elements Featuring 50x20 Mm Oval Tubes
WIDTH
460 mm
RADIATOR COLOUR
Standard White
RADIATOR
Hydrualic
HEIGHT
700 mm
BRAND
Irsap
PRODUCT TYPE
Radiators
CONNECTIONS
Connection left/right with angle valve
CERTIFICATIONS
MAXIMUM TEMPERATURE
Maximum working temperature 95°c
MAXIMUM PRESSURE
Maximum working pressure 4 bar
HYDRUALIC
Hydraulic radiator available
TEMPERATURE
Low
SEMIOVAL SECTION
Side manifolds with a 40x30 mm semioval section
TECHNICAL DRAWING
RESISTANCE
Electric Resistance
GAS RIGHT
Manifold threading 1/2” gas right
HYDRUALIC CONNECTIONS AND VALUES
None
CALCULATE THE POWER
How to choose the Oasi radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
COLORS
- Quartz 1
- Beige Cream
- Standard White
- Ivory
- RAL 1013
- Manhattan Grey
- Red
- RAL 3000
- Brown
- RAL 8017
- Claret
- RAL 3003
- Orange
- RAL 2004
- Bluish Lilac
- RAL 4005
- Matt Light Grey
- Woodland Green
- RAL 6005
- Green Grass
- RAL 6018
- Melon Yellow
- RAL 1028
- Black
- RAL 9005
- Pearl White
- Edelweiss White
- Sablé
- Quartz 2
- Sunstone
- Tobacco Brown
- Flame Red
- Azurite 3
- Medium Grey
- Titanium Grey Metallic
- RAL 9023
- Pearl Grey
- Graphite Black
- Hammered Grey
- Satin Black
- Matt White
- Matt Black
- Hammered Copper
- Deep Blue
- RAL 5004
- Agave
- North Sea Blue
- Ice
- Matt Blue Dove
- RAL 5014
MODEL
TECHNICAL DATA
TECHNICAL INFORMATION
| MODEL | DEPTH (MM) | HEIGHT (MM) | WIDTH (MM) | CONN. CENTRE (MM) | WEIGHT (KG) | CAPACITY (LT) | ΔT=50°C (WATTS) | EXPONENT | MIXED FUNCTION (WATTS) |
|---|---|---|---|---|---|---|---|---|---|
| 700 9 rails 1 espace | 30.0 | 700 | 460 | 416 | 6.54 | 3.86 | 313.8 | 1.215 | 300 |
| 700 9 rails 1 espace | 30.0 | 700 | 560 | 516 | 7.82 | 4.52 | 359.4 | 1.225 | 400 |
| 700 9 rails 1 espace | 30.0 | 700 | 660 | 616 | 9.10 | 5.19 | 405.0 | 1.235 | 400 |
| 700 9 rails 1 espace | 30.0 | 700 | 760 | 716 | 10.38 | 5.85 | 450.6 | 1.245 | 400 |
| 1120 14 rails 2 espaces | 30.0 | 1120 | 460 | 416 | 10.21 | 6.06 | 469.8 | 1.247 | 400 |
| 1120 14 rails 2 espaces | 30.0 | 1120 | 560 | 516 | 12.20 | 7.09 | 552.1 | 1.244 | 400 |
| 1120 14 rails 2 espaces | 30.0 | 1120 | 660 | 616 | 14.20 | 8.13 | 634.5 | 1.242 | 700 |
| 1120 14 rails 2 espaces | 30.0 | 1120 | 760 | 716 | 16.19 | 9.16 | 716.8 | 1.239 | 700 |
| 1610 20 rails 3 espaces | 30.0 | 1610 | 460 | 416 | 14.58 | 8.68 | 676.3 | 1.240 | 700 |
| 1610 20 rails 3 espaces | 30.0 | 1610 | 560 | 516 | 17.43 | 10.15 | 804.7 | 1.238 | 700 |
| 1610 20 rails 3 espaces | 30.0 | 1610 | 660 | 616 | 20.28 | 11,63 | 933.2 | 1.235 | 1000 |
| 1610 20 rails 3 espaces | 30.0 | 1610 | 760 | 716 | 23.13 | 13,10 | 1.061.6 | 1.232 | 1000 |
| 1820 23 rails 3 espaces | 30.0 | 1820 | 460 | 416 | 16.69 | 9.92 | 767.7 | 1.254 | 700 |
| 1820 23 rails 3 espaces | 30.0 | 1820 | 560 | 516 | 19.97 | 11.62 | 902.6 | 1.257 | 1000 |
| 1820 23 rails 3 espaces | 30.0 | 1820 | 660 | 616 | 23.24 | 13.31 | 1.037,5 | 1.259 | 1000 |
| 1820 23 rails 3 espaces | 30.0 | 1820 | 760 | 716 | 26.52 | 15.01 | 1.1724 | 1.262 | 1000 |
